Raceworks Fuel Cell Fuel Pump Hanger with Filler to suit Single/Twin/Triple Pump
Universal
In Stock:
This product is in stock & ready to be dispatched.
Limited Stock Available:
Stock is running low. Order soon to avoid missing out!
Almost Gone:
Stock is critically low! This product may sell out soon.
Incoming:
Product will be in stock soon.
Usually Ships In:
This product is out of stock and will usually ship in the timeframe displayed.
Sold Out:
This product is currently out of stock.
Request ETA
$479.00
Unit price /
Unavailable
Bidit helps you and Pro Speed Racing agree on a price. You set the price and Pro Speed Racing checks if they can accept your offer. You aren't competing with anyone else.

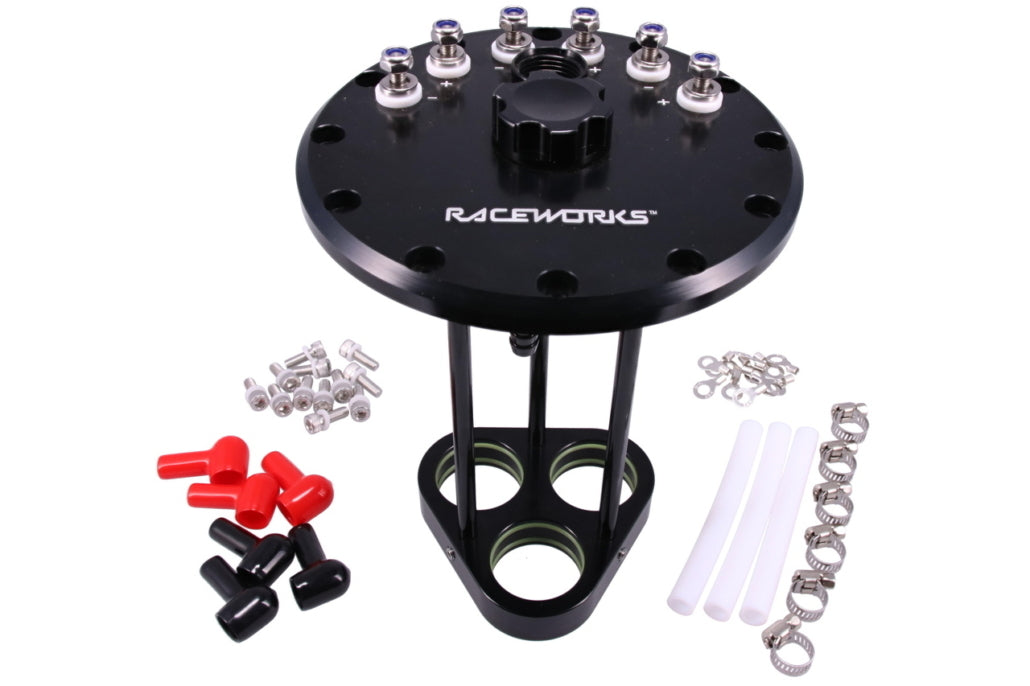

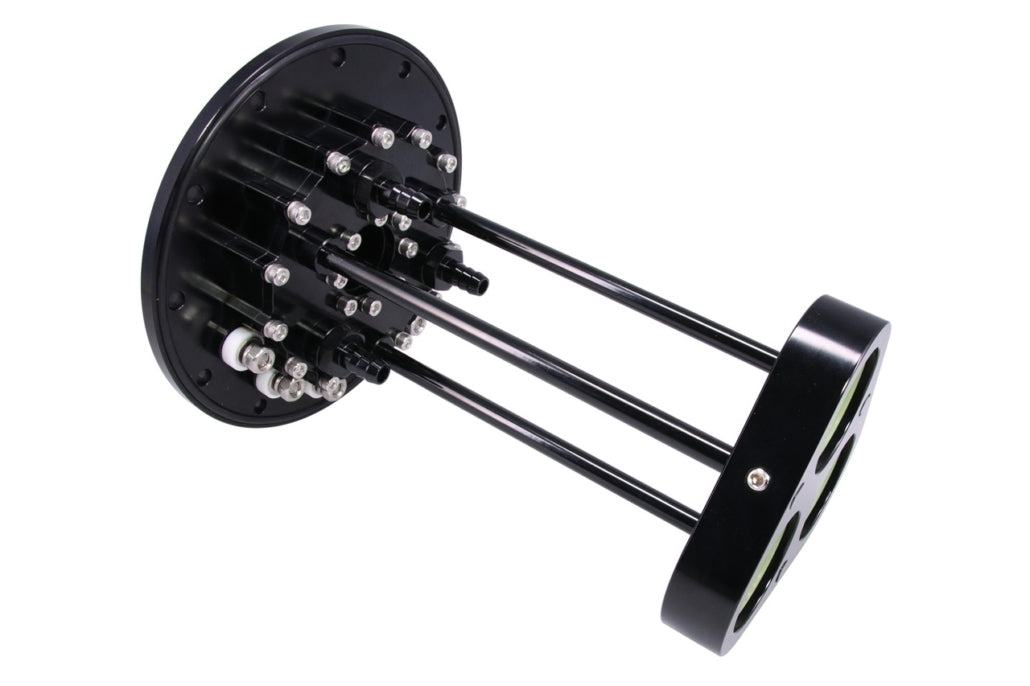

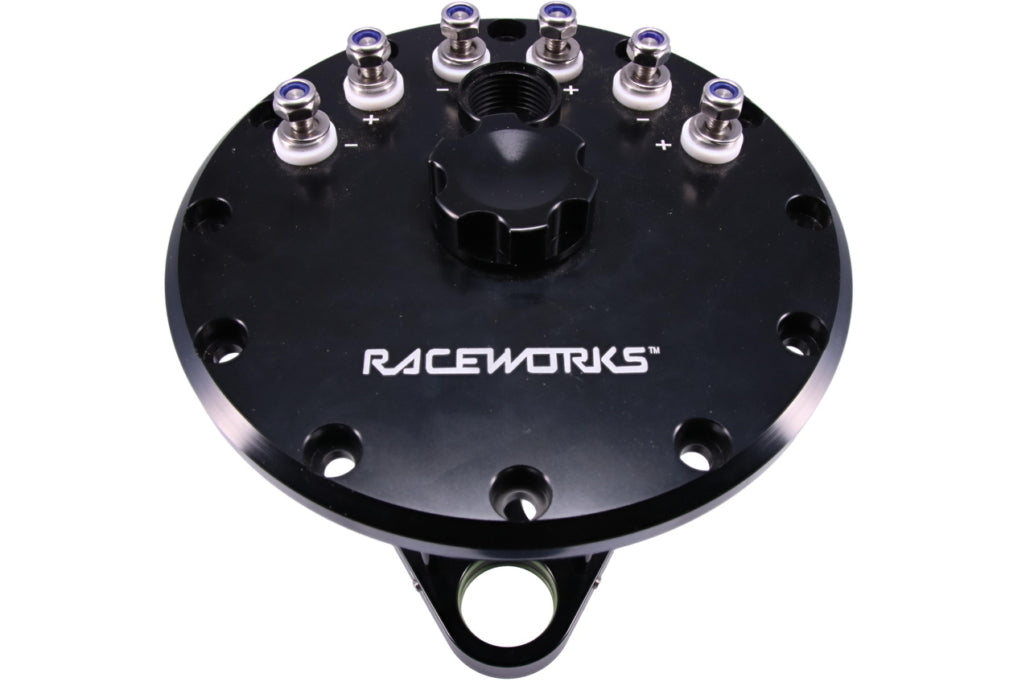

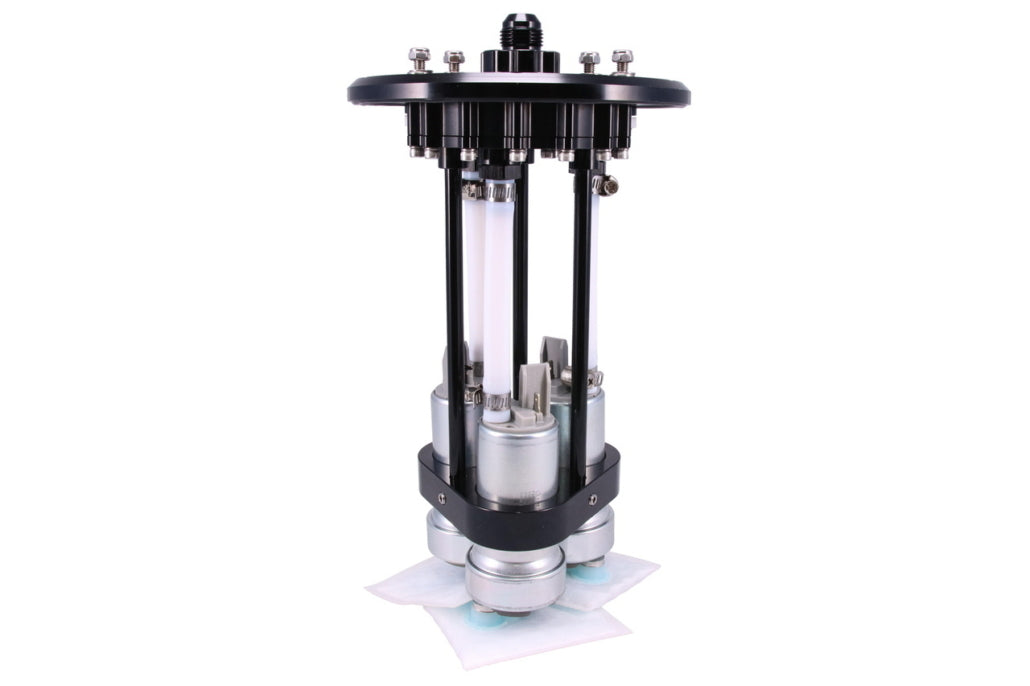

Raceworks Fuel Cell Single/Twin/Triple Fuel Pump Hanger With Filler. V2 model with 12x140mm bolt pattern. Suits 39-40mm pumps.
Anodized black, this triple fuel pump hanger can be fitted with one, two or three pumps, and has triple stainless electrical terminals allowing the pumps to be staged separately. E85 ready with teflon seals and intank hose and viton o-rings.
These hangers suit the new V2 fuel cells but are also ideal for retrofitting an EFI fuel pump into older steel tank vehicles, or integrating a high flow pump setup into a custom tank. See the linked items for steel or alloy weld on rings for mounting, fuel pumps, fittings and hose. Adjustable height suits tank depth of tbc or deeper with longer hose. Filler cap included. O-Ring in hanger base. Single AN-10 O-Ring Port. O-ring seal to tank / mounting ring. This model suits 39-40mm pumps from Walbro / TI Automotive such as the GSS34x, GSS35x, 460, 525 etc.
Raceworks fuel pump brackets have been designed to attractively mount and insulate a variety of fuel pumps. The range includes brackets for single or twin-mount configuration of 39mm and 38mm pumps, engineered from precision alloy, and hardcoat anodised to enhance your fuel system installation.
Raceworks V2 Fuel Cells and Accessories such as this item now have a 12x140mm filler bolt pattern (vs the older 12×120.5mm bolt pattern). This is to accommodate larger accessories such as the ALY-195BK Triple Pump Hanger.
V1 Accessories now come with a ALY-104BK adapter plate to allow them to bolt to the new Raceworks Fuel Cell range. V2 accessories will not fit a V1 fuel cell.
All Raceworks products come with a 2 year warranty.
Step 1: Choose message placement
Click the button below and then hover over your page to select a placement.
Step 2: Paste and save
You have copied the placement for the Product Page.
Go back to the App Embeds section, and in the Paypal Advanced Settings, paste the copied value into the
Product Page field and click the 'Save' button in the top right corner.
| SKU:
ALY-195BK
