 |  SKU: ALY-082-10

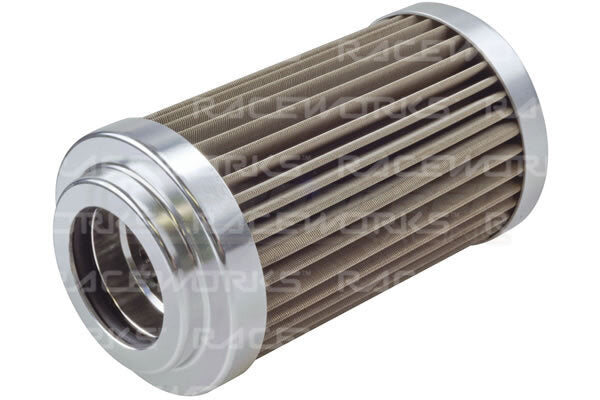

Raceworks Replacement Fuel Filter Element - Suit 140mm Housing

$54.99
Filter
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Raceworks Inline Fuel Filters constitute the core of any high performance EFI installation, affording both precise levels of filtration and high volumes of flow. Replacement element varieties are available in 10, 40, 75, and 100 micron stainless steel, along with barbed filters with bronze elements, both allowing for pre and post-pump filtration without impeding flow rates. All elements are E85 safe, with a total filtration surface area of up to 374 square centimetres. Filter bodies are hard coat anodised in gloss black, with matching brackets available to match your in-car or under-car setup.

The filters are directional and washable, and suitable for high horsepower applications, supporting up to 2400LPH @ 3Bar. See below for more detailed flow ratings.

All Raceworks products come with a 2 year warranty.



Features:

  •  Dimensions : 75mm L x 43mm Dia



Micron Length Maximum Flow Rate @ 3Bar* Part Number
10 Standard 1500LPH ALY-082-10
40 Standard 1800LPH ALY-082-40
75 Standard 2100LPH ALY-082-75
100 Standard 2400LPH ALY-082-100

 *Maximum flow rate measured with a pressure drop across the filter of 2psi
