 |  SKU: INJ-223-EVO

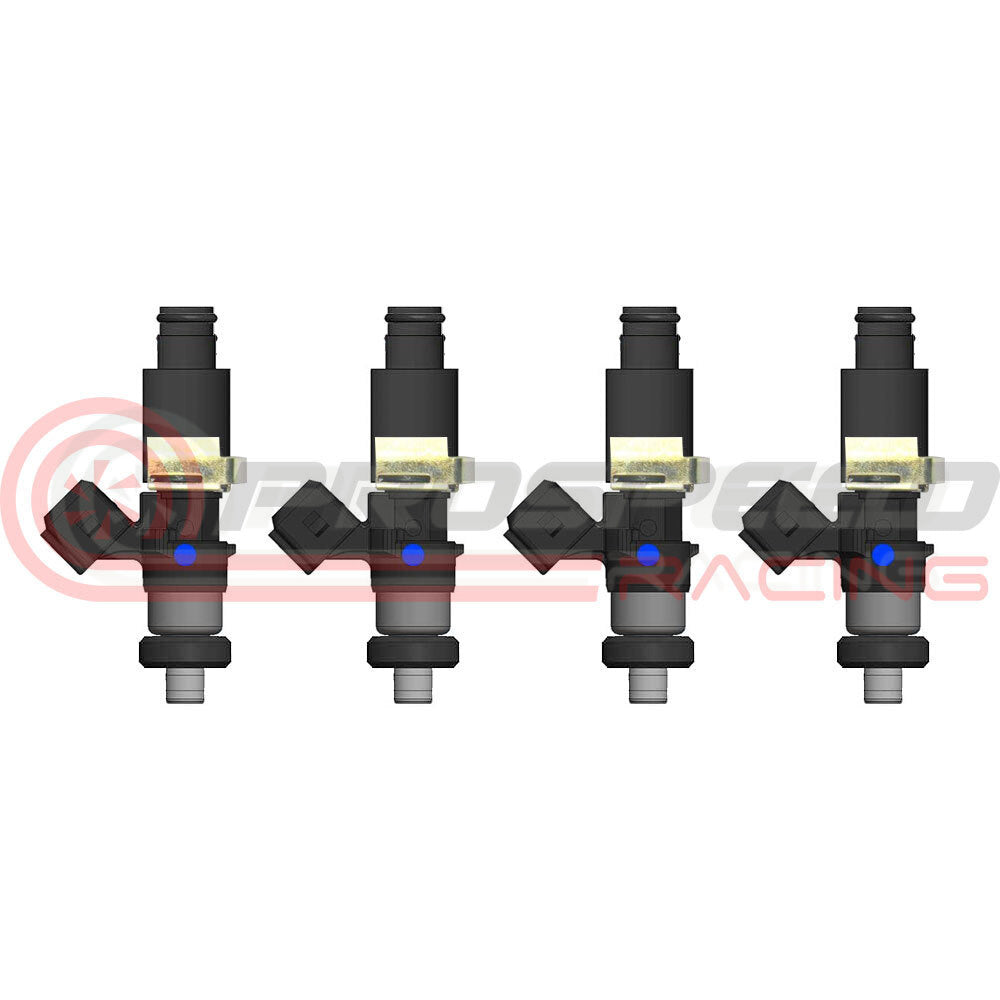

Raceworks Set of 4 1500cc Fuel Injectors Plug and Play

Mitsubishi Evo 4-9
$949.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description



Raceworks have developed a comprehensive range of performance fuel injectors, that now set the industry standard for quality and reliability, with a variety of flow rates, physical sizes and fuel compatibility ranging from pump fuel to E85 and Methanol. A full range of connector plug adaptors and extensions are also availalbe, enabling a quick and simple upgrade to almost any application. All Raceworks injectors are High Impedence with 14mm Viton O-Rings.



Features:

  • Size: 1500cc (143 lb/hr) and 1650cc (157Lb/hr) @ 4bar
  • Impedance: High (8.4Ohms)
  • Plug: Bosch Jetronic/Minitimer, Top O-Ring: 14mm
  • E85 Safe
  • Spray Pattern: Pencil
  • Spray Direction: Straight
  • Plug and Play with factory wiring plugs
  • Sold flow matched to a +/- 1% Variance (2% Total)



Flywheel power figures per injector (Estimated):

Normally Aspirated Gasoline 250HP 190KW
Forced Inducted Low Boost Gasoline 210HP 160KW
Forced Inducted High Boost Gasoline       230HP 170KW

Normally Aspirated E85 140HP 100KW
Forced Inducted Low Boost E85 150HP 110KW
Forced Inducted High Boost E85 165HP 120KW



Direct fit applications*:

  • Mitsubishi Evo 4-9

*Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters.
