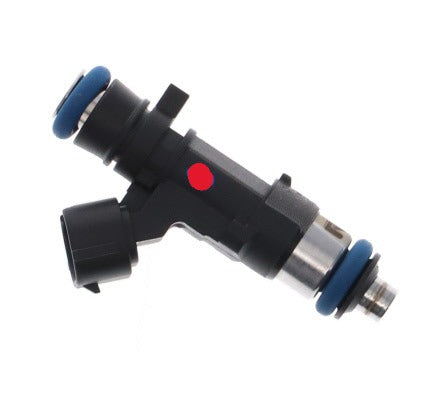

Raceworks Single 1200cc 3/4 Length Fuel Injector 14mm (Denso Plug)

$159.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Raceworks have developed a comprehensive range of performance fuel injectors, that now set the industry standard for quality and reliability, with a variety of flow rates, physical sizes and fuel compatibility ranging from pump fuel to E85 and Methanol. A full range of connector plug adaptors and extensions are also availalbe, enabling a quick and simple upgrade to almost any application. All Raceworks injectors are High Impedence with 14mm Viton O-Rings.



Features:

  • Modified/High Flowed Bosch Injector
  • Size: 1200cc (114 Lb/hr) @ 3bar and 1400cc (133Lb/hr) @ 4bar.
  • Impedance: High (12 Ohms)
  • Plug: Denso. Top O-Ring: 14mm.
  • Ethanol & Methanol Safe
  • Spray Pattern: Narrow Cone
  • Spray Direction: Straight
  • Sold flow matched to a +/- 1% Variance (2% Total)



Flywheel power figures per injector (Estimated):

Normally Aspirated Gasoline 230HP 175KW
Forced Inducted Low Boost Gasoline       195HP 145KW
Forced Inducted High Boost Gasoline 210HP 155KW

Normally Aspirated E85 170HP 125KW
Forced Inducted Low Boost E85 140HP 105KW
Forced Inducted High Boost E85 150HP 115KW



Direct fit applications*:

  • Nissan 350Z V6
  • Nissan 370Z V6
  • Nissan GT-R R35 V6 Twin Turbo
  • Nissan Patrol TB48 I6
  • Nissan Skyline R34 RB25 I6
  • Nissan Stagea WGC34/WGNC34 RB25 I6
  • Subaru Impreza GD/GG H4 N/A

*Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters.
