 |  SKU: INJ-503

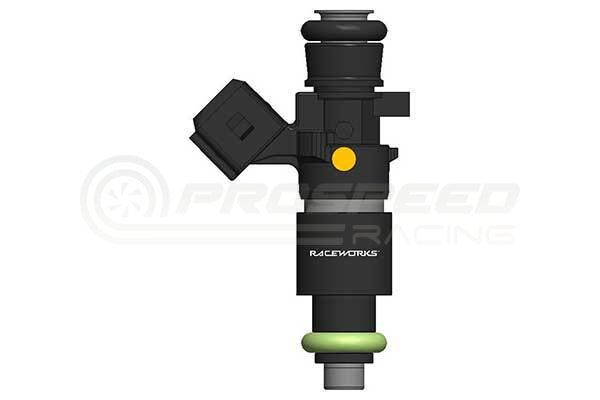

Raceworks Single 1200cc 3/4 Length Fuel Injector 14mm (w/Lower Adaptor, Bosch Plug)

$159.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


Raceworks have developed a comprehensive range of performance fuel injectors, that now set the industry standard for quality and reliability, with a variety of flow rates, physical sizes and fuel compatibility ranging from pump fuel to E85 and Methanol. A full range of connector plug adaptors and extensions are also availalbe, enabling a quick and simple upgrade to almost any application. All Raceworks injectors are High Impedence with 14mm Viton O-Rings.



Features:

  • Modified/High Flowed Bosch Injector
  • Size: 1200cc (114 Lb/hr) @ 3bar and 1380cc (131Lb/hr) @ 4bar.
  • Impedance: High (12Ohms)
  • Plug: Bosch. Top O-Ring: 14mm.
  • Ethanol & Methanol Safe
  • Spray Pattern: Narrow Cone
  • Spray Direction: Straight
  • Sold flow matched to a +/- 1% Variance (2% Total)



Flywheel power figures per injector (Estimated):

Normally Aspirated Gasoline 230HP 175KW
Forced Inducted Low Boost Gasoline       195HP 145KW
Forced Inducted High Boost Gasoline 210HP 155KW

Normally Aspirated E85 170HP 125KW
Forced Inducted Low Boost E85 140HP 105KW
Forced Inducted High Boost E85 150HP 115KW



Direct fit applications*:

  • Ford Falcon FG/FG-X Turbo I6
  • Mitsubishi Evo X

*Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters.
