 |  SKU: INJ-501

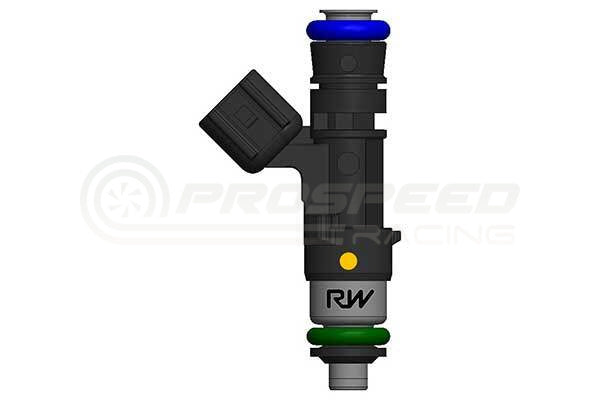

Raceworks Single 980cc 3/4 Length Fuel Injector 14mm (USCAR Plug)

$159.00

Description


Raceworks have developed a comprehensive range of performance fuel injectors, that now set the industry standard for quality and reliability, with a variety of flow rates, physical sizes and fuel compatibility ranging from pump fuel to E85 and Methanol. A full range of connector plug adaptors and extensions are also availalbe, enabling a quick and simple upgrade to almost any application. All Raceworks injectors are High Impedence with 14mm Viton O-Rings.



Features:

  • Modified/High Flowed Bosch Injector
  • Size: 980cc (95 Lb/hr) @ 3bar and 1150cc (110Lb/hr) @ 4bar.
  • Impedance: High (12 Ohms)
  • Plug: USCAR. Top O-Ring: 14mm.
  • Ethanol & Methanol Safe
  • Spray Pattern – Narrow Cone
  • Spray Direction – Straight
  • Sold flow matched to a +/- 1% Variance (2% Total)



Flywheel power figures per injector (Estimated):

Normally Aspirated Gasoline 185HP 140KW
Forced Inducted Low Boost Gasoline 155HP 115KW
Forced Inducted High Boost Gasoline 165HP 125KW

Normally Aspirated E85 140HP 105KW
Forced Inducted Low Boost E85 110HP 80KW
Forced Inducted High Boost E85 120HP 90KW



Direct fit applications*:

  • Holden Commodore VZ V6
  • Holden Commodore VE V6 (Excluding SIDI)

*Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters.



Fitment Table
