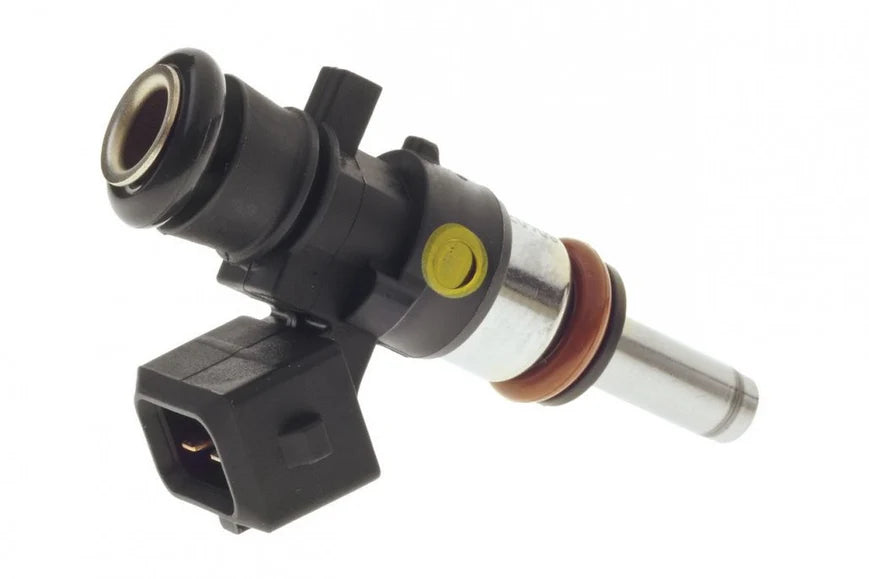

Raceworks Single 980cc Short Injector w/ Extended Nose 14mm Bosch Connector - SINGLE

Universal
$99.99
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Raceworks have developed a comprehensive range of performance fuel injectors, that now set the industry standard for quality and reliability, with a variety of flow rates, physical sizes and fuel compatibility ranging from pump fuel to E85 and Methanol. A full range of connector plug adaptors and extensions are also availalbe, enabling a quick and simple upgrade to almost any application. All Raceworks injectors are High Impedence with 14mm Viton O-Rings.



Flywheel power figures per injector (Estimated):

Normally Aspirated Gasoline 185HP 140KW
Forced Inducted Low Boost Gasoline 155HP 115KW
Forced Inducted High Boost Gasoline      165HP 125KW

Normally Aspirated E85 140HP 105KW
Forced Inducted Low Boost E85 110HP 80KW
Forced Inducted High Boost E85 120HP 90KW



Features and Benefits

  • Modified/High Flowed Bosch Injector
  • Size: 980cc (95 Lb/hr) @ 3bar and 1150cc (110Lb/hr) @ 4bar.
  • Impedance: High (12Ohms)
  • Plug: USCAR. Top O-Ring: 11mm.
  • Ethanol & Methanol Safe
  • Spray Pattern: Narrow Cone
  • Spray Direction: Straight
  • Sold flow matched to a +/- 1% Variance (2% Total)

Technical Specifications

  • Size: 627cc @ 3 Bar
  • Length: EV14S 3/4 Length with Extended Nose
  • Plug: Bosch Minitimer
  • Top O-Ring: 14mm
  • E85 Safe: Yes

Fitment Table
