🚚 Flat Rate Shipping
 |  SKU: INJ-223

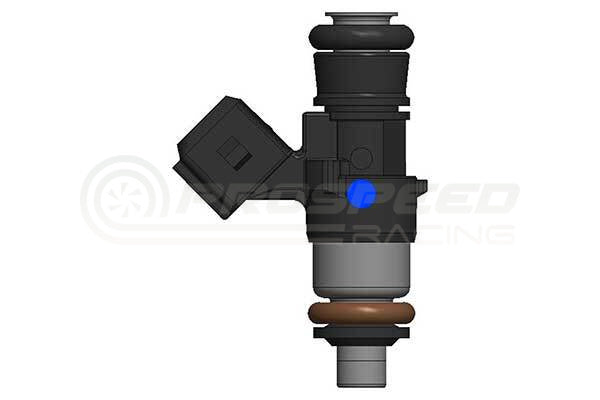

Raceworks Single Bosch Motorsport 1500cc Short Injector 14mm

Bosch Jetronic Plug
$219.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description



Raceworks have developed a comprehensive range of performance fuel injectors, that now set the industry standard for quality and reliability, with a variety of flow rates, physical sizes and fuel compatibility ranging from pump fuel to E85 and Methanol. A full range of connector plug adaptors and extensions are also availalbe, enabling a quick and simple upgrade to almost any application. All Raceworks injectors are High Impedence with 14mm Viton O-Rings.



Features:

  • Size: 1500cc (143 lb/hr) and 1650cc (157Lb/hr) @ 4bar
  • Impedance: High (8.4Ohms)
  • Plug: Bosch Jetronic/Minitimer, Top O-Ring: 14mm
  • E85 Safe
  • Spray Pattern: Pencil
  • Spray Direction: Straight
  • Sold in matched sets with a +/- 1% (2% Total) Flow Variance



Flywheel power figures per injector (Estimated):

Normally Aspirated Gasoline 250HP 190KW
Forced Inducted Low Boost Gasoline 210HP 160KW
Forced Inducted High Boost Gasoline       230HP 170KW

Normally Aspirated E85 140HP 100KW
Forced Inducted Low Boost E85 150HP 110KW
Forced Inducted High Boost E85 165HP 120KW



Direct fit applications*:

  • Holden Commodore VZ 6.0L V8
  • Holden Commodore VE L76/L77/L98/LS3
  • Holden Commodore VE LS7
  • Holden Commodore VF V8

*Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters.



Fitment Table
