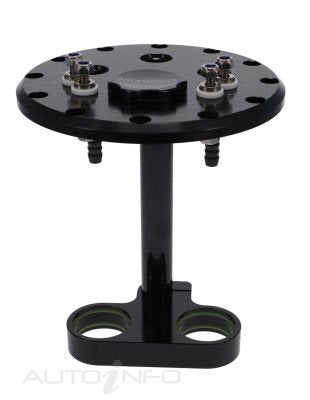

Raceworks Single/Twin Fuel Pump Hanger 39-40mm Pumps

$299.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Raceworks Hangers are an addition to our fuel cell range, allowing the use of modern high-flow intank fuel pumps. They suit a range of pump diameters from 37-40mm, and are height adjustable. They can be used with custom fuel tanks also, through the use of a steel or aluminium weld ring.

SUITS NEW ALY-27XBK RANGE
Weld Ring is ALY-241



39-40mm Compatibility List

  • EFP-500, EFP-800 F90000262*
  • F90000267*
  • F90000274*
  • F90000285*
  • F90000295*
  • GSS340
  • GSS341
  • GSS342
  • GSS350
  • GSS351
  • GSS352

Technical Specifications

  • Drop in hanger with filler for Raceworks Fuel Cells. Adjustable in height
  • Can be configured with either a single or twin pumps
  • Dual Stainless Electrical Terminals with PTFE Seals, allowing the pumps to be staged
  • AN-8 ORB
  • Anodised in Black, providing corrosion resistance when used with E85
  • Viton O-rings supplied with PTFE Intank Hose and stainless clamps

Fitment Table
