 |  SKU: SHS-075BE

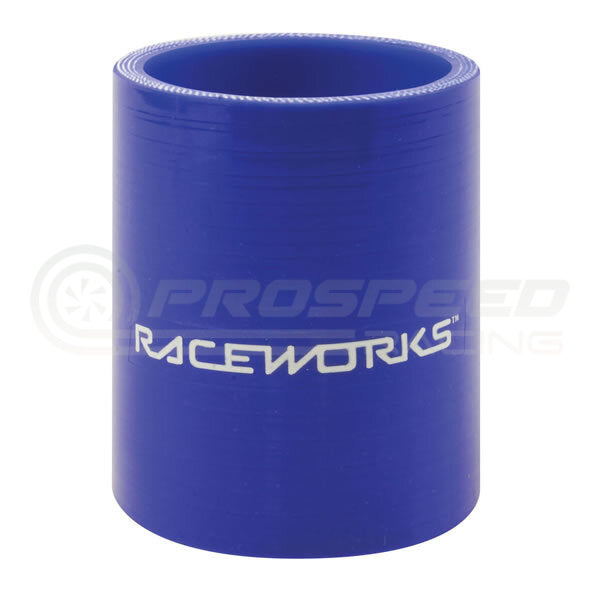

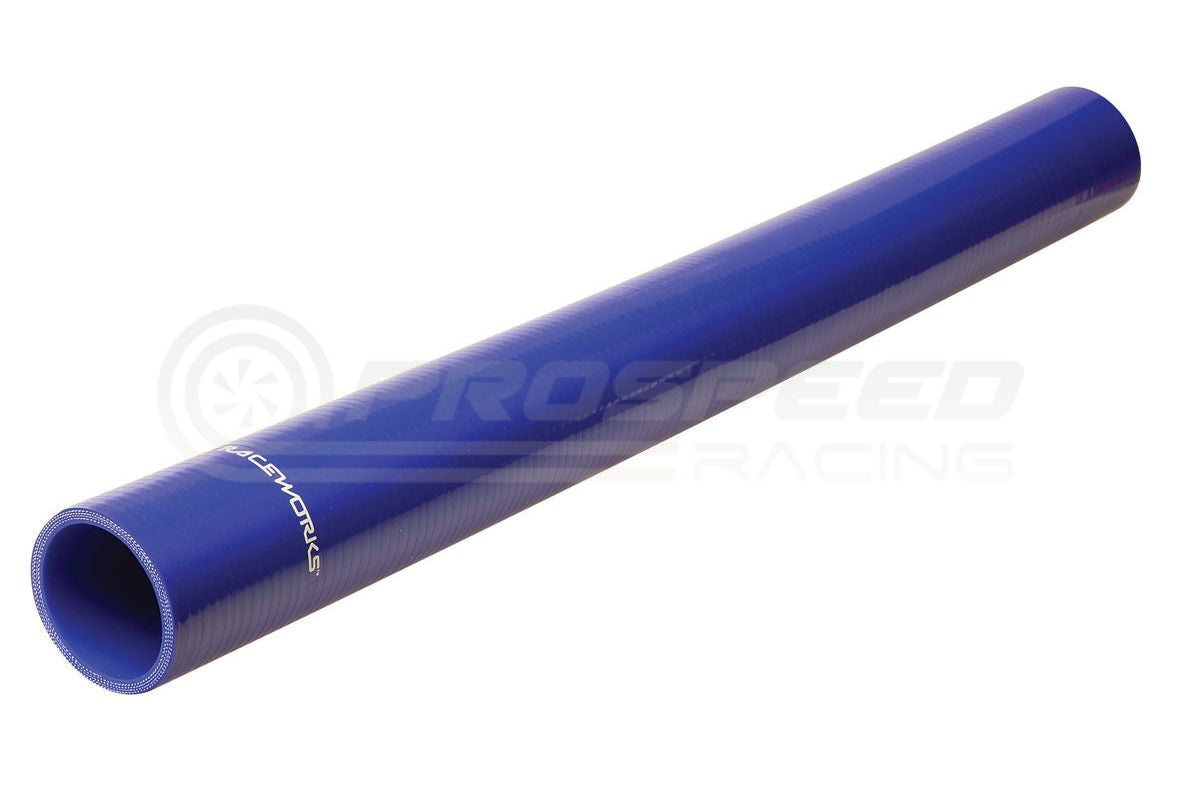

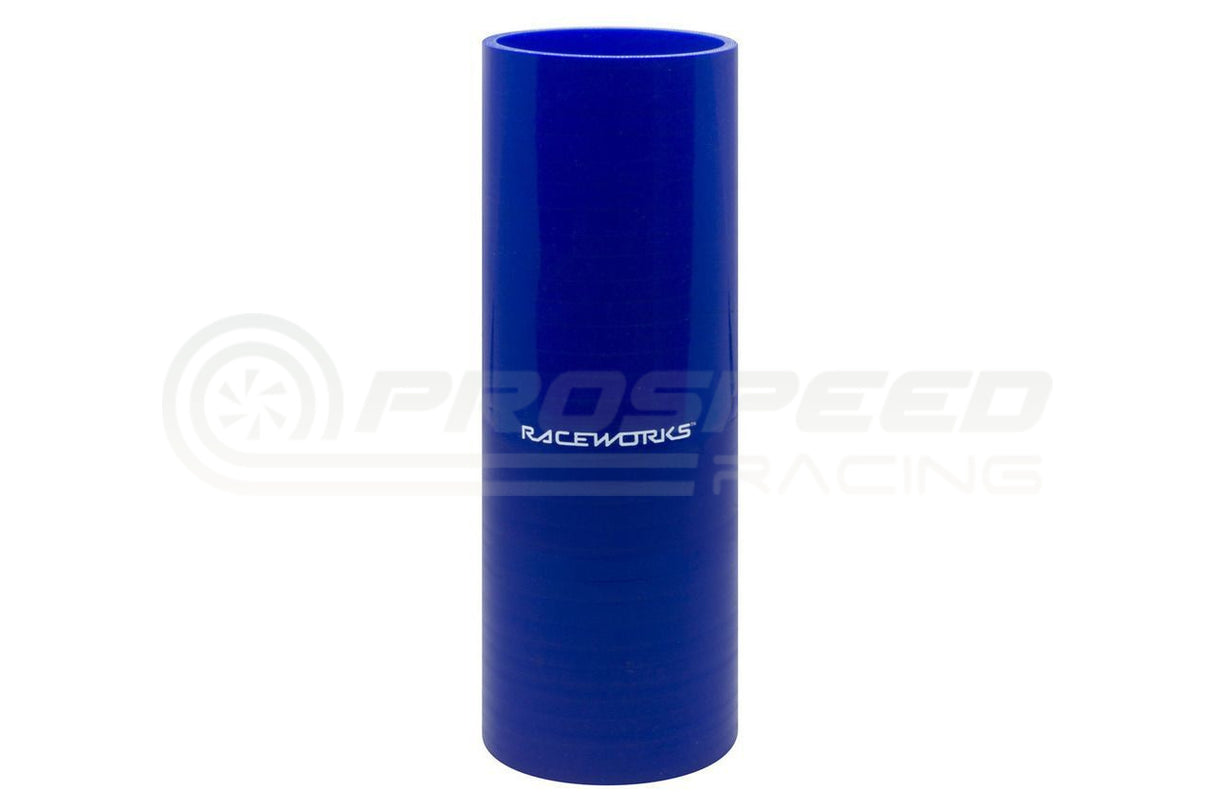

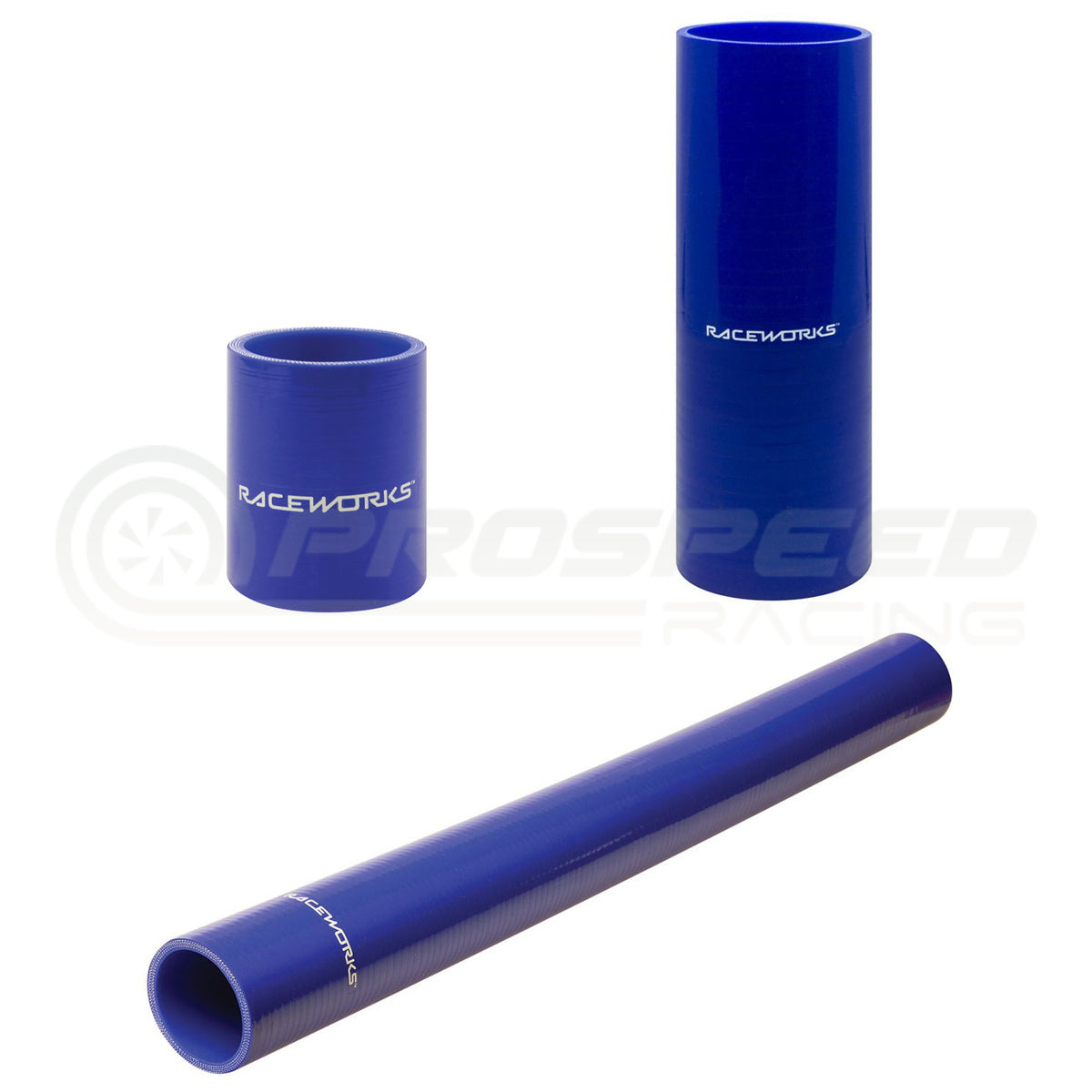

Raceworks Straight Silicone Hose Coupler Blue

$8.49
Length
Size
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


Raceworks Silicone Hose is manufactured from the highest grade materials, to ensure that the strictest OEM and performance specifications are surpassed. All Hoses feature solid 5mm walls constructed from 4-ply reinforced silicone polyester, offering burst pressures of up to 348psi. All hoses are UV, ozone and electrochemically resistant to avoid fading and separation.

All Raceworks products come with a 2 year warranty.



Features:

  • Temperature Rating : –40 to +180°C
  • Raceworks Silicone Hose is not fuel safe
  • Solid 5mm walls constructed from 4-ply reinforced silicone polyester.



Specifications:

Short Length

Dia. Imp. Dia. Metric Part # Blue Part # Black Lth mm Min. Burst Pres.
0.50” 13mm SHS-050BE SHS-050BK 60mm 348 PSI
0.75” 19mm SHS-075BE SHS-075BK 60mm 348 PSI
1.00” 25mm SHS-100BE SHS-100BK 60mm 348 PSI
1.25” 32mm SHS-125BE SHS-125BK 60mm 305 PSI
1.50” 38mm SHS-150BE SHS-150BK 60mm 305 PSI
1.75” 44mm SHS-175BE SHS-175BK 60mm 305 PSI
2.00” 51mm SHS-200BE SHS-200BK 75mm 218 PSI
2.25” 57mm SHS-225BE SHS-225BK 75mm 174 PSI
2.50” 63mm SHS-250BE SHS-250BK 75mm 174 PSI
2.75” 70mm SHS-275BE SHS-275BK 75mm 174 PSI
3.00” 76mm SHS-300BE SHS-300BK 75mm 174 PSI
3.25” 83mm SHS-325BE SHS-325BK 90mm 174 PSI
3.50” 89mm SHS-350BE SHS-350BK 90mm 145 PSI
3.75” 95mm SHS-375BE SHS-375BK 90mm 145 PSI
4.00” 102mm SHS-400BE SHS-400BK 90mm 145 PSI
4.50” 114mm SHS-450BE SHS-450BK 90mm 145 PSI
5.00” 127mm SHS-500BE SHS-500BK 90mm 145 PSI
6.00” 152mm SHS-600BE SHS-600BK 90mm 145 PSI



Medium Length:

Dia. Imp. Dia. Metric Part # Blue Part # Black Lth mm Min. Burst Pres.
0.50? 13mm – SHS-050BKM 254mm 348 PSI
1.00? 25mm – SHS-100BKM 254mm 348 PSI
1.25? 32mm – SHS-125BKM 254mm 305 PSI
1.50? 38mm – SHS-150BKM 254mm 305 PSI
1.75? 44mm – SHS-175BKM 254mm 305 PSI
2.00? 51mm SHS-200BEM SHS-200BKM 254mm 218 PSI
2.25? 57mm SHS-225BEM SHS-225BKM 254mm 174 PSI
2.50? 63mm SHS-250BEM SHS-250BKM 254mm 174 PSI
2.75? 70mm – SHS-275BKM 254mm 174 PSI
3.00? 76mm SHS-300BEM SHS-300BKM 254mm 174 PSI
3.25? 82mm – SHS-325BKM 254mm 174 PSI
3.75? 95mm – SHS-375BKM 254mm 145 PSI
4.00? 102mm SHS-400BEM SHS-400BKM 254mm 145 PSI
4.50? 114mm – SHS-450BKM 254mm 145 PSI
5.00? 127mm – SHS-500BKM 254mm 145 PSI
6.00? 152mm – SHS-600BKM 254mm 145 PSI



Long Length

Dia. Imp. Dia. Metric Part # Blue Part # Black Lth mm Min. Burst Pres.
0.50” 13mm – SHS-050BKL 610mm 348 PSI
0.75” 19mm – SHS-075BKL 610mm 348 PSI
1.00” 25mm – SHS-100BKL 610mm 348 PSI
1.25” 32mm – SHS-125BKL 610mm 305 PSI
1.50” 38mm – SHS-150BKL 610mm 305 PSI
1.75” 44mm – SHS-175BKL 610mm 305 PSI
2.00” 51mm – SHS-200BKL 610mm 218 PSI
2.25” 57mm – SHS-225BKL 610mm 174 PSI
2.50” 63mm – SHS-250BKL 610mm 174 PSI
2.75” 70mm – SHS-275BKL 610mm 174 PSI
3.00” 76mm SHS-300BEL SHS-300BKL 610mm 174 PSI
3.25” 83mm SHS-325BEL SHS-325BKL 610mm 174 PSI
3.50” 89mm SHS-350BEL SHS-350BKL 610mm 145 PSI
3.75” 95mm SHS-375BEL SHS-375BKL 610mm 145 PSI
4.00” 102mm – SHS-400BKL 610mm 145 PSI
4.50” 114mm SHS-450BEL SHS-450BKL 610mm 145 PSI
5.00” 127mm SHS-500BEL SHS-500BKL 610mm 145 PSI
6.00” 152mm SHS-600BEL SHS-600BKL 610mm 145 PSI
