 |  SKU: SHR-050075BK

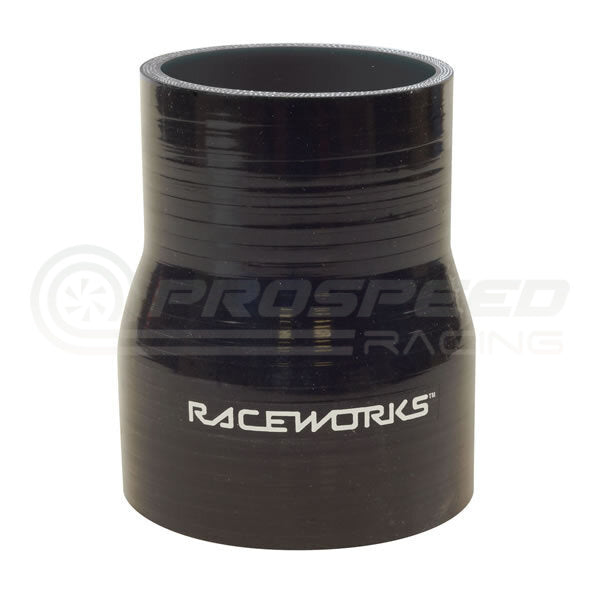

Raceworks Straight Silicone Hose Reducer Black

$15.99
Size
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


Raceworks Silicone Hose is manufactured from the highest grade materials, to ensure that the strictest OEM and performance specifications are surpassed. All Hoses feature solid 5mm walls constructed from 4-ply reinforced silicone polyester, offering burst pressures of up to 348psi. All hoses are UV, ozone and electrochemically resistant to avoid fading and separation.

All Raceworks products come with a 2 year warranty.



Features:

  • Temperature Rating : –40 to +180°C
  • Raceworks Silicone Hose is not fuel safe
  • Solid 5mm walls constructed from 4-ply reinforced silicone polyester.



Specifications:

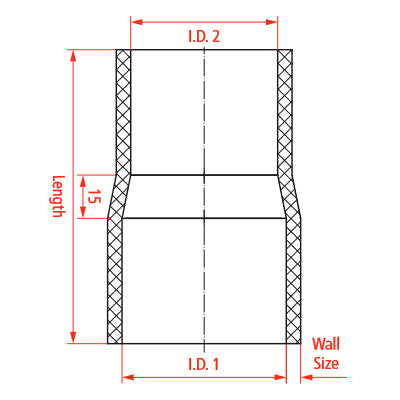

Dia. Imp. Dia. Metric Part # Blue Part # Black Lth mm Min. Burst Pres.
0.50? – 0.75? 13-19mm SHR-050075BE SHR-050075BK 102mm 348 PSI
0.75? – 1.00? 19-25mm – SHR-075100BK 102mm 348 PSI
1.00? – 1.25? 25-32mm SHR-100125BE SHR-100125BK 102mm 305 PSI
1.00? – 1.50? 25-38mm SHR-100150BE SHR-100150BK 102mm 305 PSI
1.00? – 1.75? 25-44mm – SHR-100175BK 102mm 305 PSI
1.00? – 2.00? 25-51mm SHR-100200BE SHR-100200BK 102mm 305 PSI
1.25” – 1.50” 32-38mm – SHR-125150BK 102mm 305 PSI
1.25” – 1.75” 32-44mm SHR-125175BE SHR-125175BK 102mm 305 PSI
1.50” – 1.75” 38-44mm SHR-150175BE SHR-150175BK 102mm 305 PSI
1.50” – 2.00” 38-51mm SHR-150200BE SHR-150200BK 102mm 305 PSI
1.75” – 2.00” 44-51mm – SHR-175200BK 102mm 305 PSI
1.75” – 2.25” 44-57mm SHR-175225BE SHR-175225BK 102mm 218 PSI
2.00” – 2.25” 51-57mm SHR-200225BE SHR-200225BK 102mm 218 PSI
2.00” – 2.50” 51-63mm SHR-200250BE SHR-200250BK 102mm 218 PSI
2.00” – 2.75” 51-70mm SHR-200275BE SHR-200275BK 102mm 218 PSI
2.00” – 3.00” 51-76mm SHR-200300BE SHR-200300BK 102mm 218 PSI
2.25” – 2.50” 57-63mm SHR-225250BE SHR-225250BK 102mm 174 PSI
2.25” – 2.75” 57-70mm SHR-225275BE SHR-225275BK 102mm 174 PSI
2.25” – 3.00” 57-76mm SHR-225300BE SHR-225300BK 102mm 174 PSI
2.50” – 2.75” 63-70mm SHR-250275BE SHR-250275BK 102mm 174 PSI
2.50” – 3.00” 63-76mm SHR-250300BE SHR-250300BK 102mm 174 PSI
2.50” – 3.25” 63-83mm – SHR-250325BK 102mm 174 PSI
2.75” – 3.00” 70-76mm SHR-275300BE SHR-275300BK 102mm 174 PSI
2.75” – 3.50” 70-89mm SHR-275350BE SHR-275350BK 102mm 174 PSI
3.00” – 3.25” 76-83mm SHR-300325BE SHR-300325BK 102mm 174 PSI
3.00” – 3.50” 76-89mm SHR-300350BE SHR-300350BK 102mm 174 PSI
3.00” – 3.75” 76-95mm SHR-300375BE SHR-300375BK 102mm 174 PSI
3.00” – 4.00” 76-102mm SHR-300400BE SHR-300400BK 102mm 174 PSI
3.25” – 3.50” 83-89mm SHR-325350BE SHR-325350BK 102mm 174 PSI
3.25? – 3.75? 82-95mm – SHR-325375BK 102mm 174 PSI
3.25” – 4.00” 83-102mm SHR-325400BE SHR-325400BK 102mm 174 PSI
3.50” – 3.75” 89-95mm SHR-350375BE SHR-350375BK 102mm 145 PSI
3.50” – 4.00” 89-102mm SHR-350400BE SHR-350400BK 102mm 145 PSI
3.50” – 4.50” 89-114mm SHR-350450BE SHR-350450BK 102mm 145 PSI
3.75” – 4.00” 95-102mm SHR-375400BE SHR-375400BK 125mm 145 PSI
3.75? – 4.50? 95-114mm SHR-375450BE SHR-375450BK 125mm 145 PSI
4.00” – 4.50” 102-114mm SHR-400450BE SHR-400450BK 125mm 145 PSI
4.00” – 5.00” 102-127mm SHR-400500BE SHR-400500BK 125mm 145 PSI
4.50” – 5.00” 114-127mm SHR-450500BE SHR-450500BK 125mm 145 PSI
5.00” – 6.00” 127-152mm SHR-500600BE SHR-500600BK 125mm 145 PSI


Fitment Table
