Raceworks Triple Pump Fuel Surge Tank

$639.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

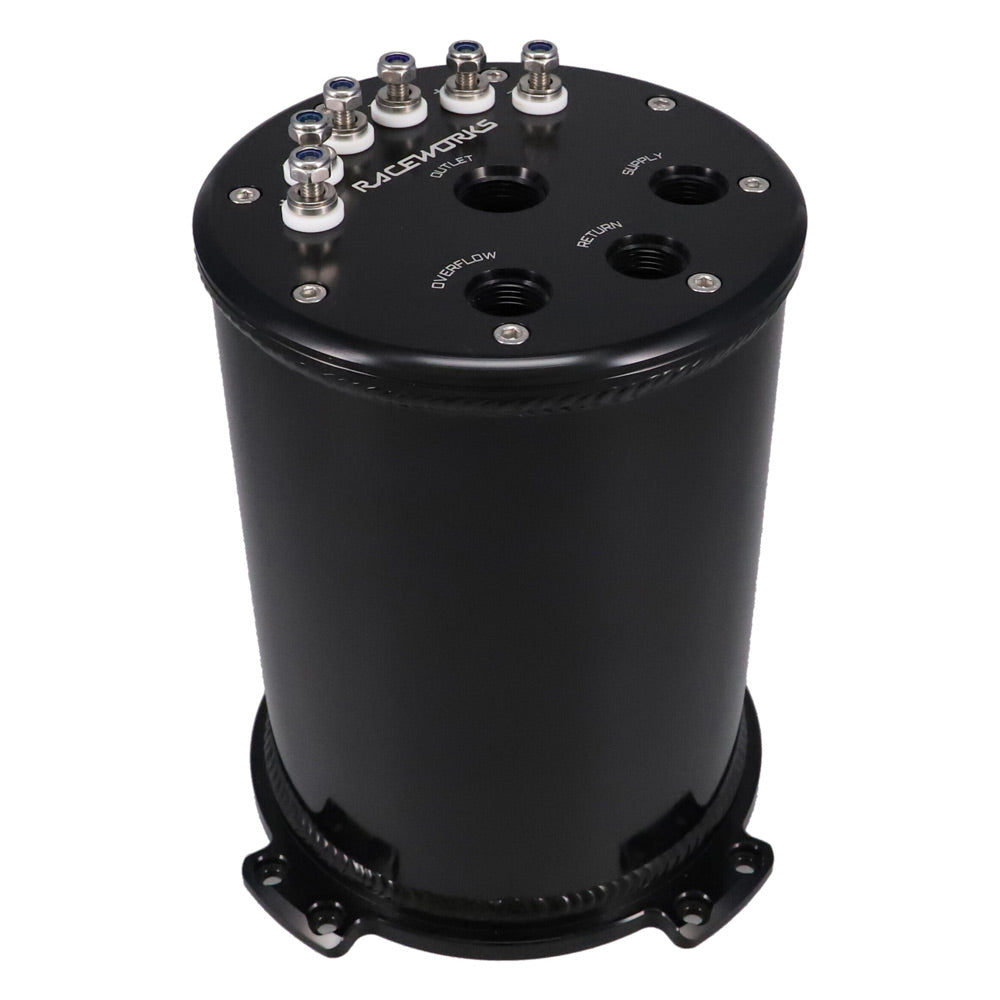

The Raceworks Triple Pump Fuel Surge Tank (SKU: ALY-059BK) is the ideal solution for automotive enthusiasts preparing for street, strip, or circuit performance. This surge tank features a sleek anodised black aluminium construction designed specifically to accommodate E85 fuel.

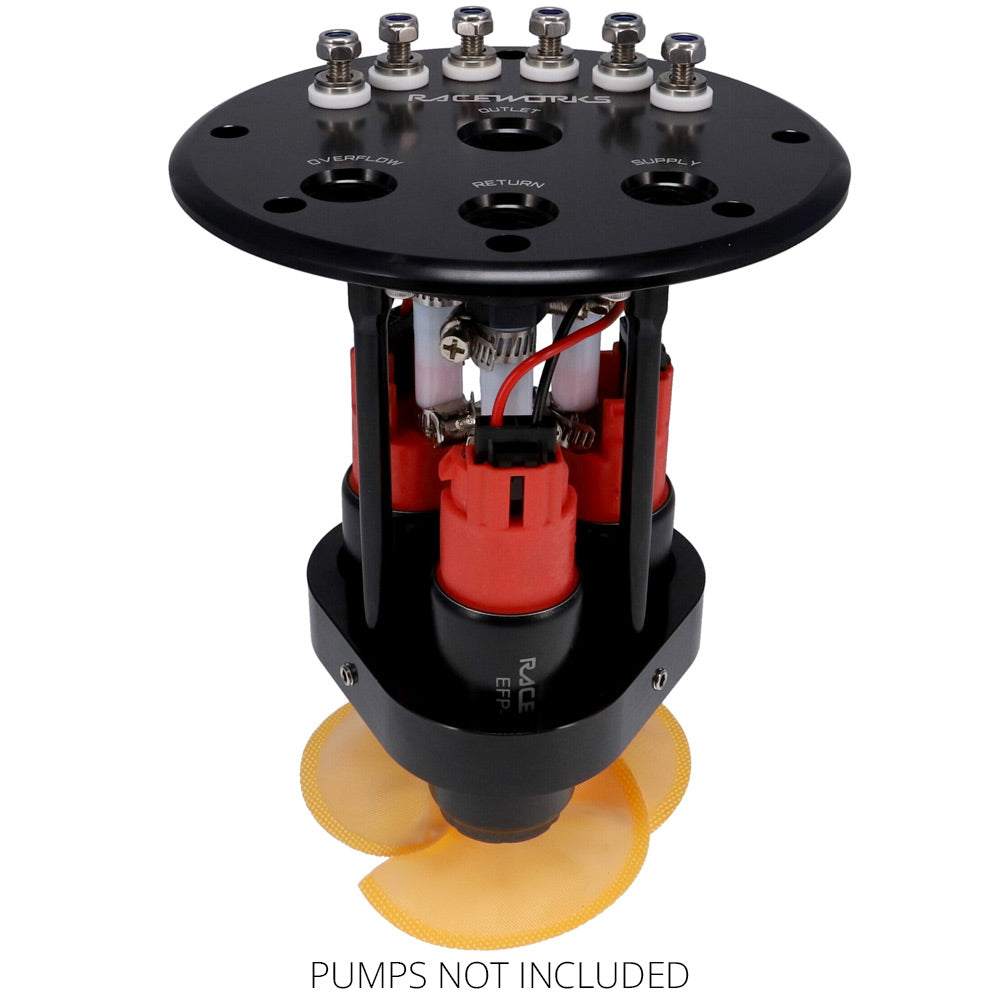

Engineered to support one, two, or three 38–40mm fuel pumps—including Raceworks EFP-500, EFP-501, or popular Walbro models—it offers dedicated stainless steel electrical terminals for easy and efficient staging.

With AN-10 ORB feed and AN-8 ORB return, supply, and overflow ports, this surge tank ensures clean installations and exceptional high-flow capacity. Plus, it comes complete with three perfectly sized fuel pump strainers, eliminating any guesswork during setup.

Whether running a single, twin, or triple pump setup, the Raceworks Triple Pump Surge Tank features Viton O-rings and Teflon in-tank hose compatible with E85 fuels. It’s supplied with 10mm barb inlet fittings and PTFE hose to further enhance usability.



Compatible Pumps

Raceworks:

  • EFP-500
  • EFP-501
  • EFP-800


Walbro/TI Automotive:

  • F90000262*
  • F90000267*
  • F90000274*
  • F90000285*
  • F90000295*
  • GSS340
  • GSS341
  • GSS342
  • GSS350
  • GSS351
  • GSS352



*For High Current fuel pump wiring, use Hard Wire Fuel Pump Wiring Kits

Features and Benefits

  • New vortex design for AN-10 ORB feed promotes improved fuel flow.
  • Stainless steel electrical terminals allow for efficient fuel pump staging.
  • Configurable for single, twin, or triple fuel pump setups.
  • Includes three fuel pump strainers for hassle-free installation.
  • Constructed with Viton O-rings and Teflon hose suitable for E85 use.
  • Compact size with optimised capacities depending on pump configuration.

Technical Specifications

  • Height: 21.5 cm
  • Diameter: 14.0 cm
  • Depth: 19.5 cm
  • Capacity: 2.8L with single pump, 2.6L with twin, 2.4L with triple.
  • Compatible with various Raceworks and Walbro pumps.

Included Components

  • 1 x Raceworks Triple Pump Fuel Surge Tank.
  • 3 x Fuel pump strainers.
  • 10mm barb inlet fittings.
  • PTFE hose.
  • 2 sets of O-rings for pump compatibility.
