Radium 6AN Universal DIY PTFE Hose Kit Black
Product will be in stock soon.
This product is in stock & ready to be delivered.
This product has very limited stock remaining.
This product is not available at this time.
Earn [points_amount] when you buy this item.
Description
Description
Note: DIY Kit - Requires assembly of hose ends to hose
PTFE HOSE
PTFE is the ultimate hose material. It has outstanding resistance to chemicals including alcohol fuels such as methanol, ethanol, E85 and leaded fuels such as race gas. It is also suitable for brake, transmission, clutch, power steering, and coolant. PTFE hose has ~zero~ permeation and will not emit vapors like rubber fuel hose, so it is safe to use in confined spaces such as a vehicle’s trunk or small garage.

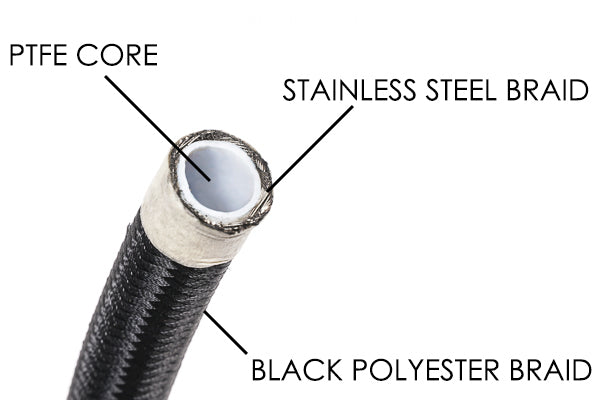

All Radium Engineering PTFE hoses have been successfully tested in-house to 1200psi although PTFE can typically withstand 2500psi+. They are also for extreme temperatures (-94F to +480F). They feature an extruded PTFE (fluoropolymer) core wrapped in a stainless steel wire braided sleeve. The outer coating is determined by the assembly process: Universal DIY ends (braided PET) or preassembled crimped ends (smooth PVC). All hose ends are type-II black anodized aluminum.
PTFE HOSE ENDS

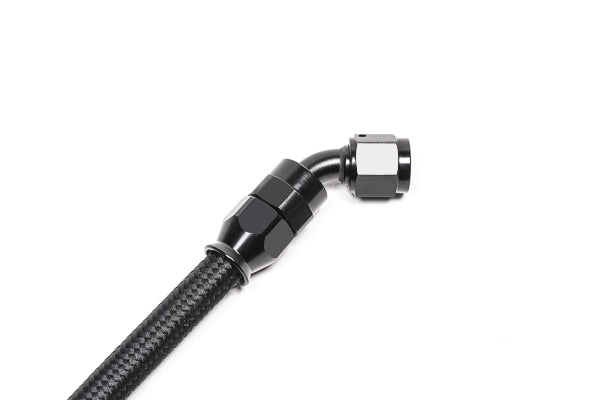

These hose ends are specific to PTFE hose and cannot be used with rubber hose. Each fitting is machined from aluminum and anodized black. Internal O-rings permit swivelling.
PTFE DIY KITS
These 2 kits come in 6AN and 8AN sizes only. The 8AN size is pictured. The PTFE hose used in the universal DIY kits uses a black polyester outer braid.

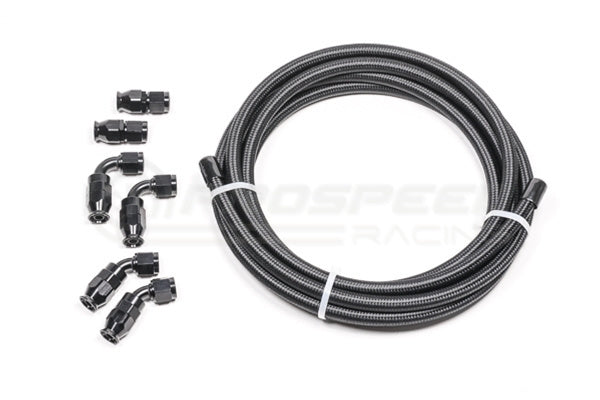

Kit Includes:
- Black braided PTFE hose, 14.75ft (4.5m)
- Black PTFE hose end, straight (x2)
- Black PTFE hose end, 45 degree (x2)
- Black PTFE hose end, 90 degree (x2)
Hose Dimensions:
- 6AN: 0.33" ID/0.50" OD
- 8AN: 0.42" ID/0.60" OD
- 10AN: 0.51" ID/0.70" OD
