Radium Distribution Block 3 x 8AN ORB to 1 x 10AN ORB w/Fittings
Product will be in stock soon.
This product is in stock & ready to be delivered.
This product has very limited stock remaining.
This product is not available at this time.
Description
Description

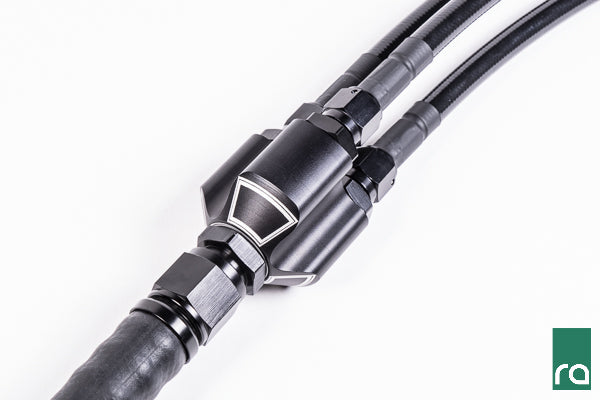

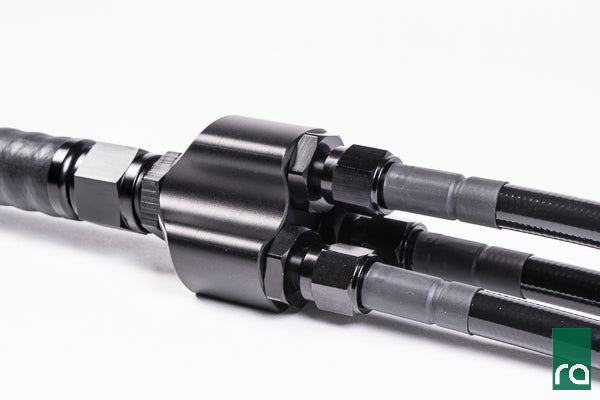

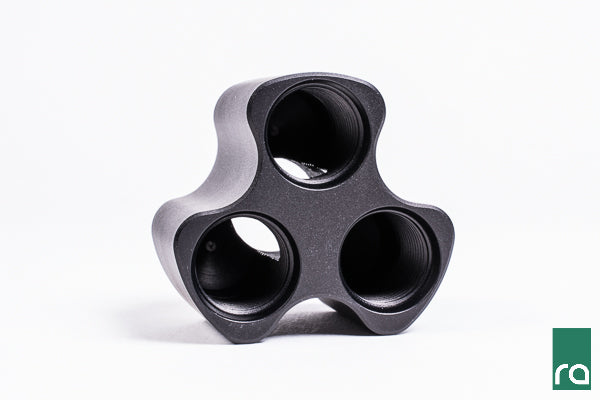

These CNC machined 6061 aluminum fuel distribution blocks ensure the most direct path for unrestricted flow. Both distribution blocks features three AN ORB female ports on one side and one larger AN ORB female port on the opposing side. Because the surface is anodized for corrosion resistance, it can be used in all fluids including: alcohol (ethanol/methanol), gasoline, coolant, water, air, oil, etc.
This 20-0237 block is machined with one 10AN ORB port and three 8AN ORB ports. The kit includes enough fittings to permit any 6AN-8AN-10AN combination.
NOTE: Use oil lubrication on the O-rings prior to installing the fittings.

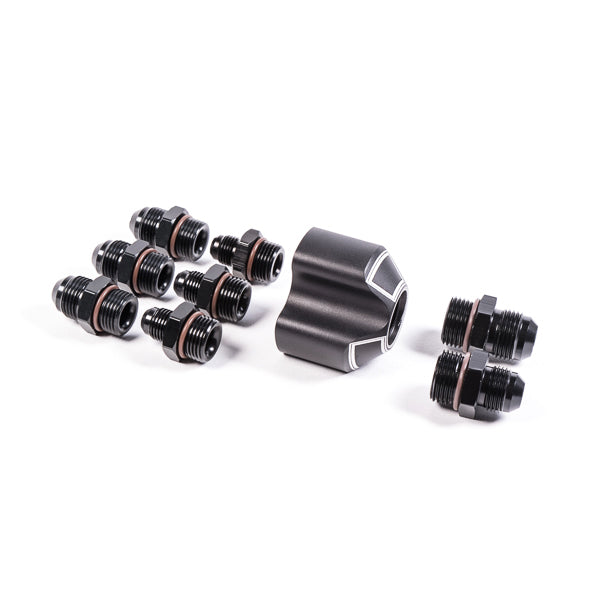

Includes:
- Aluminum Threaded Block (x1)
- 8AN ORB to 6AN Male Fitting (x3)
- 8AN ORB to 8AN Male Fitting (x3)
- 10AN ORB to 8AN Male Fitting (x1)
- 10AN ORB to 10AN Male Fitting (x1)
