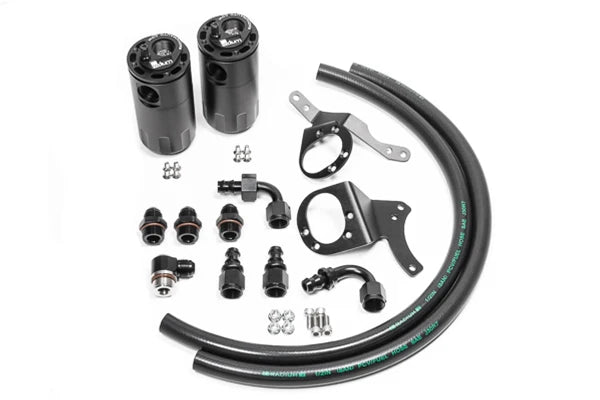

Radium Dual Fluid Lock Catch Can Kit

The Radium Engineering Fluid Lock® Dual Catch Can Kit is the ultimate solution for protecting your 2015–2017 Ford Mustang GT (S550 chassis). Designed to prevent oil, water condensation, and blowby gasses from entering the intake system, this dual setup uses both CCV and PCV catch cans to maximize protection and performance.

Traditional catch cans can overflow if not serviced regularly, allowing contaminants to re-enter the intake tract. Radium’s patented Fluid Lock® mechanism solves this issue by preventing overfilling, securely trapping fluids until emptied. This ensures consistent performance, reduced hydrocarbon emissions, and cleaner intake components.

Key Benefits:

• Removes oil and condensation from crankcase vapors
• Prevents buildup in intake manifold, intercooler, and throttle body
• Maintains cleaner inlet air for improved performance and efficiency
• Fluid Lock® design eliminates the risk of overflow
• Closed system prevents unwanted vapors entering the cabin
• Integrated dipstick for easy monitoring
• Durable 7oz canisters with billet construction

Service & Maintenance:

Emptying intervals depend on driving style and vehicle condition. PCV cans typically collect more than CCV. The integrated dipstick makes it easy to check fluid levels every few weeks. Empty by removing the reservoir or use an optional Petcock Drain Kit for quick service.

Important Notes:

• Tuning and an aftermarket ECU may be required in certain configurations
• Excessive oil collection may indicate engine blowby, overfilled oil, or PCV valve issues

Application: Ford Mustang GT (S550) 2015–2017

• Direct fitment with no drilling required
• Large 10AN ORB inlet and outlet ports
• 4AN ORB drain port
• 2-step oil separation baffling
• O-ring sealed dipstick
• 7 fluid ounce capacity
• Patented Fluid Lock® system

• Anodized oil catch can with integrated condenser and dipstick
• Anodized laser cut Mustang GT specific mounting bracket
• Anodized aluminum
• 8AN adapter fittings and hose ends
• Enough 1/2" PCV hose for custom applications
• Stainless steel mounting hardware
