 |  SKU: 20-0499

Radium Dual Port Injection (DPI) Fuel Rails

Subaru WRX/STI/FXT/LGT

Incoming :

Product will be in stock soon.

In Stock :

This product is in stock & ready to be delivered.

Very low inventory :

This product has very limited stock remaining.

Out of stock :

This product is not available at this time.

$494.00
Earn 1 Point on this purchase. Learn more

Description

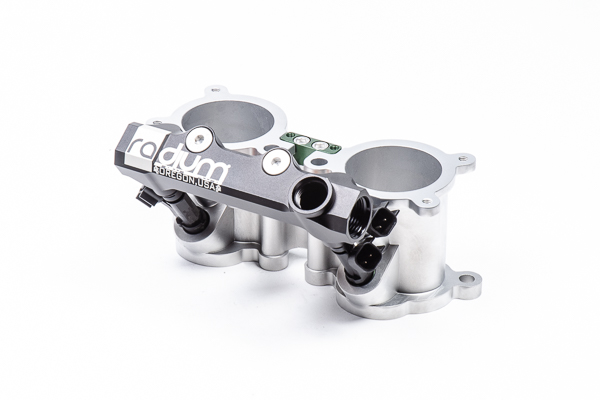

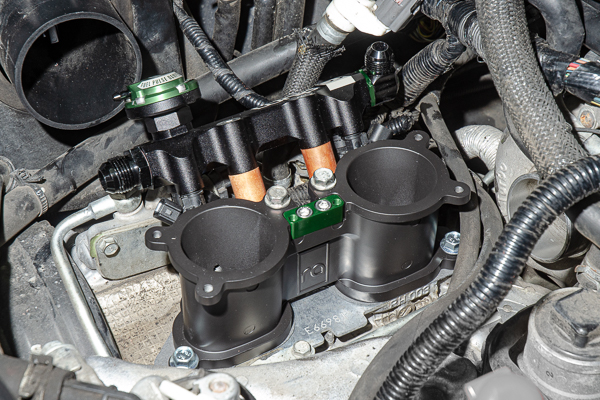

These Radium dual port injection (DPI) fuel rails were designed specifically for the Radium 20-0489 TGV Housing Kit and are NOT compatible with any other TGV housing on the market. Manufactured with large 10AN ORB end ports, the fuel rails can support all necessary engine power requirements. The top auxiliary ports are threaded with 8AN ORB for ancillary accessories. The rails are CNC machined from solid 6061 aluminum, black anodized, and laser engraved for a high quality surface finish. They are compatible with all fuel types including alcohol mixtures such as E85 and is a necessary modification for those using methanol on high powered engines.

Machined press-fit phenolic spacers are included to insulate TGV housing heat transfer.

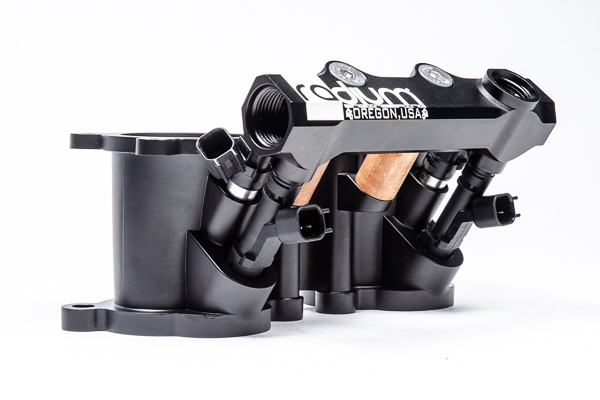

FUEL INJECTOR FITMENT

Each fuel rail has 4 injector ports that are machined to permit injectors with 14mm O-rings.

Primary Lower Fuel Injectors

Using the provided adapters, both OEM Subaru or 60mm Bosch EV14 style fuel injectors can be used. To reuse the OEM Subaru injectors, the provided top hat must be installed over the upper OEM injector O-ring as shown. To use aftermarket 60mm Bosch EV14 injectors, the provided injector seat must be installed over the lower injector O-ring.

Below are compatible aftermarket injectors for the lower primary ports.

  • Injector Dynamics ID1050x-60-14-14
  • Injector Dynamics ID1300x-60-14-14
  • Injector Dynamics ID1700x-60-14-14
  • Injector Dynamics ID2000-60-14-14

Secondary Upper Fuel Injectors

Only 34mm Bosch EV14 style fuel injectors can be used. Fortunately, many Subaru owners are currently already using Injector Dynamics XXXX.48.11.WRX fuel injectors. If the upper and lower billet caps are pulled off, the base injector is a 34mm Bosch EV14 which can be used. Below are the compatible secondary upper injectors.

  • Injector Dynamics ID850-34-14-14
  • Injector Dynamics ID1050x-34-14-14
  • Injector Dynamics ID1300-34-14-14
  • Injector Dynamics ID1700-34-14-14
  • Injector Dynamics ID2000-34-14-14

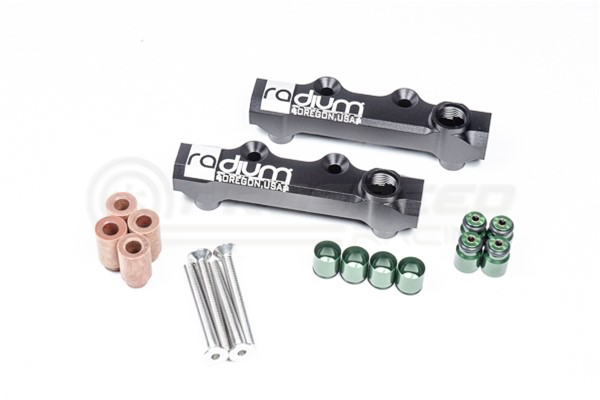

Kit Includes:

  • Black Laser Etched Aluminum Fuel Rails (x2)
  • Injector Seats for Aftermarket Injectors (x4)
  • Injector Hats with Filter Screens for OEM Injectors (x4)
  • Phenolic Insulating Press-In Spacers (x4)
  • Stainless Steel Hardware
  • FKM Viton O-ring Seals


Fitment Table
