 |  SKU: 20-HOSE-12AN

Radium E85 Safe Reinforced PCV/Fuel Hose - Sold Per Foot

$12.99
Size
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Note, Radium now sells us this hose per FOOT. Not metres.

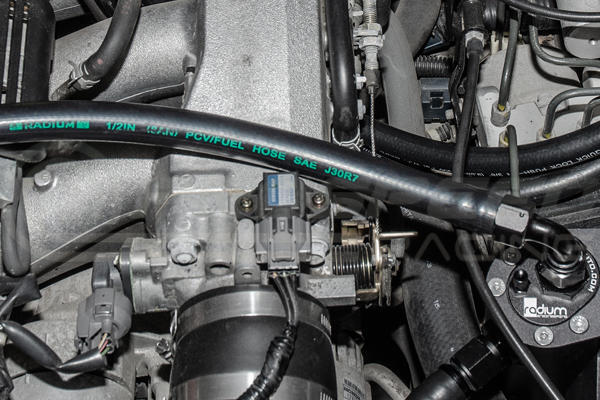

This Radium Engineering Fuel/PCV hose is found in both crankcase ventilation oil catch can systems and high pressure fuel injection applications. Unlike heater hose, this Fuel/PCV hose resists engine oil, gasoline, diesel fuel, ethanol fuel (including E85), etc.

See specifications tab for detailed information on each option.



CONSTRUCTION

  • Tube Material: Black Chemigum (NBR)
  • Reinforcement: 1-Layer Polyester Fiber Braid
  • Cover: Black Neoprene and Buna-N
  • Temperature Range: -40F to 257F



HOW TO ORDER

First select the hose I.D. that you need from the dropdown Next, enter the amount of "feet" required in the Quantity box (~3 feet per metre). Round to the nearest foot (decimals not allowed).

Note: Please allow +/- 2"(50 mm) tolerance. Order excess length if exact cut length is critical.

Examples

  • Quantity: 1, Radium Engineering will provide 1 metre of hose in the size selected.
  • Quantity: 6, Radium Engineering will provide 6 continuous metres of hose in the size selected.

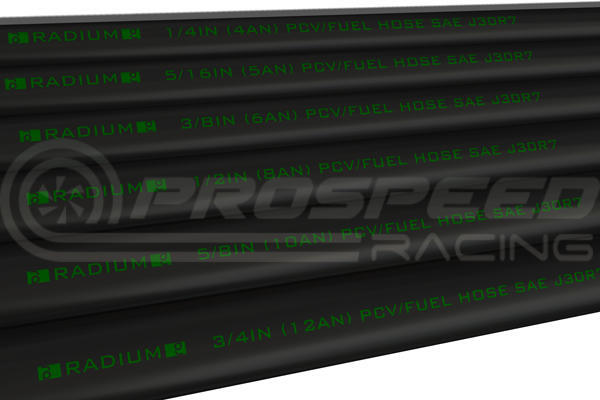

Technical Specifications

1/4" PCV/Fuel Hose

  • Inside Diameter: 0.25" ID
  • Outside Diameter: 0.53" OD
  • Working Pressure: 225-psi
  • Vacuum: 24-inHg


5/16" PCV/Fuel Hose

  • Inside Diameter: 0.31" ID
  • Outside Diameter: 0.58" OD
  • Working Pressure: 225-psi
  • Vacuum: 24-inHg



3/8" PCV/Fuel Hose

  • Inside Diameter: 0.38" ID
  • Outside Diameter: 0.65" OD
  • Working Pressure: 225-psi
  • Vacuum: 24-inHg



1/2" PCV/Fuel Hose

  • Inside Diameter: 0.50" ID
  • Outside Diameter: 0.80" OD
  • Working Pressure: 150-psi
  • Vacuum: 24-inHg



5/8" PCV/Fuel Hose

  • Inside Diameter: 0.63" ID
  • Outside Diameter: 0.95" OD
  • Working Pressure: 150-psi
  • Vacuum: 24-inHg


3/4" PCV/Fuel Hose

  • Inside Diameter: 0.75" ID
  • Outside Diameter: 1.17" OD
  • Working Pressure: 150-psi
  • Vacuum: 24-inHg

Fitment Table
