 |  SKU: 20-3797

Radium Engineering Dual Pump Add-On Walbro F90000267/274/285

Honda CR-X Del Sol

$279.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

This dual pump add-on kit can be purchased along with the 20-3790 fuel pump hanger to allow a second pump to be installed into the tank. The fuel pump hanger is required to use this add-on. If a brushless pump is being installed the system is limited to one pump and the dual pump add-on can NOT be used due to the extra brushless controller wires.

The architecture of this Honda fuel tank is very unique. Because the opening is so small, 2 pumps cannot fit through at the same time. Additionally, the angle of insertion combined with the tall collector bowl and shallow tank make dual pump installation rather difficult.

An electrical plug and a SAE quick connector eliminate the need to perform tedious assembly before dropping the entire assembly into the tank. Both fuel pumps merge into the single 8AN ORB outlet of the fuel hat. And because of the integrated check valves with the following pumps, staging is permitted.



Compatible Pumps

  • AEM 50-1000(2)
  • AEM 50-1200(2)
  • AEM 50-1220(2)
  • AEM 50-1230(2)(3)
  • AEM 50-1235(2)(3)
  • Walbro GSS342(1)

(1)Sock filters are included in this kit for these pumps.
(2)Sock filters are included by the fuel pump manufacture.
(3)These pumps do NOT feature a check valve.



COMPATIBILITY

  • Honda Del Sol (All models/trims/RHD/LHD)

Technical Specifications

  • Drop-In Installation
  • Anodized Aluminum Construction
  • Merged 8AN ORB Female Pump-Out Port
  • Fittings for Aftermarket Fuel Lines
  • Capable of 2 Pumps with Add-On
  • Compatible with Various Pumps
  • Included Fuel Pump Filter Sock
  • High Current Electrical Hardware
  • Stainless Steel Hardware and Clamps
  • Gasoline, Methanol, and E85 Compliant
  • Anti-rotation Electrical Terminals

Included Components

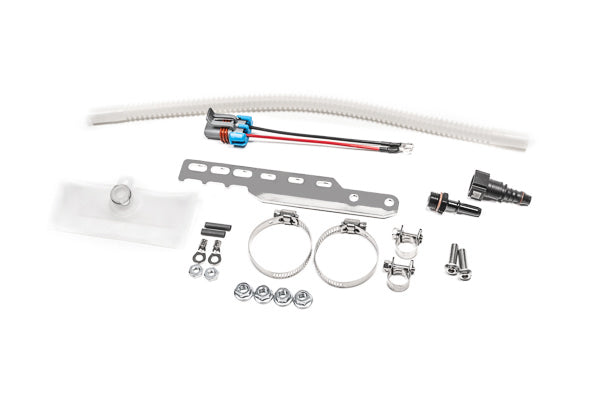

The add-on kits include all necessary parts to convert the corresponding fuel pump hanger into a dual pump hanger. Fuel pump sold separately.

Fitment Table
