 |  SKU: 20-2796

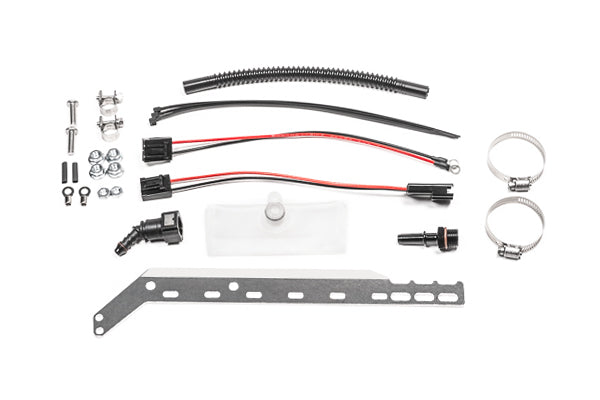

Radium Engineering Dual Pump Add-On Walbro GSS342 Or AEM 50-1200

Honda NS-X 90-05
$249.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Use this kit to add a second fuel pump to the 20-2790 Fuel Pump Hanger (required). This is not compatible with brushless pumps as multiple pumps can not be installed when using a brushless pump.

The architecture of this fuel tank is very unique. Because the opening is so small, 2 pumps cannot fit through at the same time.

The pump 2 assembly is placed in the tank first followed by the pump 1 assembly. An electrical plug and a SAE quick connector eliminate the need to perform tedious assembly before dropping the entire assembly into the tank. Both fuel pumps merge into the single 8AN ORB outlet of the fuel hat. And because of the integrated check valves, fuel pump staging is permitted.



Compatibility:

  • AEM 50-1000(2)
  • AEM 50-1200(2)
  • AEM 50-1220(2)
  • AEM 50-1230(2)(3)
  • AEM 50-1235(2)(3)
  • Walbro GSS342(1)

(1)Sock filters are included in this kit for these pumps.
(2)Sock filters are included by the fuel pump manufacture.
(3)These pumps do NOT feature a check valve.



COMPATIBILITY

  • 90-05 Acura NSX (All models/trims/RHD/LHD)

Fitment Table
