 |  SKU: 20-0974

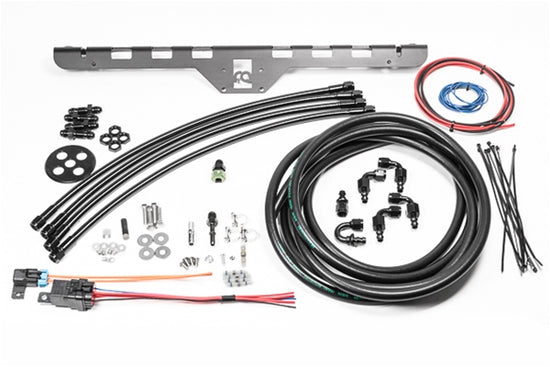

Radium Engineering FST Install Kit

$839.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

This comprehensive installation kit includes everything needed to install a Radium fuel surge tank. The base price is for the installation kit ONLY. The fuel surge tank (FST) is sold separately. It can be using the check boxes to the right.

The BMW install kit locates the FST in a collision-safe area of the trunk behind the rear seat. The bolt-on aluminum mounting bracket features rubber isolating grommets to reduce fuel pump noise. Also included is a weatherproof fuse and relay to drive the new FST fuel pump. A Delphi Weatherpak connector is also provided for the fuel pump trigger activation to make the entire system modular.

PTFE hoses are provided which are cut to length and preassembled. The PTFE hoses mate at a junction point in the trunk using the bulkhead plate and 4 bulkheads fittings for interior aesthetics.



COMPATIBILITY

  • 99-06 BMW E46 3-series
  • 99-06 BMW E46 M3

This kit is not compatible with convertibles



INSTALLATION NOTES
Depending on the flow rate of the fuel pump installed into the FST, a drop-in fuel pump upgrade may be required in the main tank. The main tank's pump is responsible for keeping the surge tank full, and requires a pump that flows around 40% to 50% of what the surge tank pump flows. This is an estimate and will vary.

Fitment Table
