 |  SKU: 20-0354-03

Radium Engineering Fuel Filter Kit

Early Subaru/Saab 9-2X (LHD Only)
$659.95
Filter
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
IMPORTANT : SPECIAL NOTES APPLY TO VEHICLE FITMENT FOR THIS PRODUCT, CLICK HERE TO VIEW

Description

NOTE: Suitable for Left Hand Drive (LHD) vehicles only



The Early Subaru & Saab Fuel Filter Kit includes our brake master cylinder brace which on top of its normal use acts as a mounting location for the fuel filter. The fuel filter kit installs inline between the firewall feed hard line and the hard line to the fuel rails on the engine.

It is compatible with the older vehicles that used barbed fittings, newer vehicles that use SAE quick connect fittings, and aftermarket fuel rails that include a 6AN male inlet fitting. It can also be used with Radium fuel rails and the Radium series fuel rail plumbing kit (Part 20-0978).

The OEM feed hose is replaced with larger 3/8" EFI fuel hose and 6AN PushLok hose ends.

For information on Radium Engineering fuel filters, go HERE.



COMPATIBILITY

  • 02-07 Subaru Impreza
  • 97-08 Subaru Forester
  • 05-06 Saab 9-2X

Not compatible with RHD vehicles



INSTALLATION NOTES

  • Depending on the Subaru model/year, the secondary air injection or washer fluid reservoir may need to be slightly relocated.
  • Fuel Filter and Master Cylinder Brace are included in this kit, nothing else is required for installation.

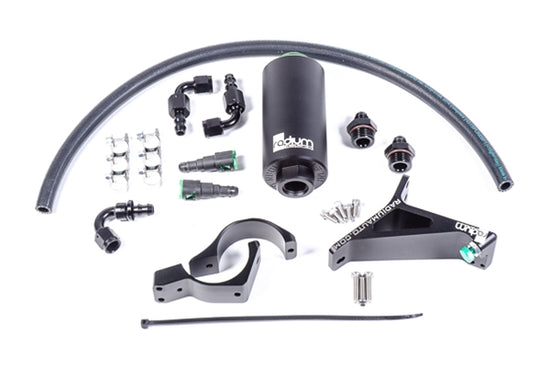

Included Components

  • Master cylinder brace
  • Fuel filter mounting bracket
  • High-flow fuel filter
  • AN fittings
  • Pushlok hose ends
  • SAE quick connect adapters
  • EFI Fuel hose
  • Stainless steel hose clamps and installation hardware

Fitment Table

Fitment Notes

Suits Left Hand Drive (LHD) Vehicles Only
