 |  SKU: 20-0982

Radium Engineering Fuel Filter Mount

Chevrolet Corvette 97-13

$109.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

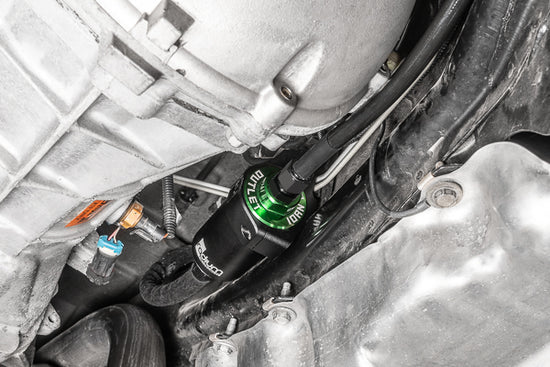

Hardware for installing a Radium Engineering fuel filter in a Corvette. One half of the billet aluminum clamp secures to an OEM threaded stud using the OEM flange nut. The mounting location is just rear of the torque tube tunnel near the LH fuel tank.

The opposing half of the billet aluminum clamp secures the filter using stainless steel bolts. The picture above shows the Fuel Filter and 10AN ORB Fittings (both sold separately).



COMPATIBILITY

  • 97-13 Chevrolet Corvette (Manual Transmission ONLY)

Technical Specifications

  • Mounts to OEM M6x1mm Stud
  • No Permanent Modifications Required
  • Billet Anodized Aluminum Clamps
  • Clamp Diameter: 60mm (2.36")
  • Stainless Steel Bolts

Included Components

  • Anodized aluminum fuel filter mount
  • Stainless steel mounting hardware



NOTES

  • Fuel filter not included
  • For information on Radium fuel filters, please see this product page HERE
  • Aftermarket fuel lines and fittings will need to be configured separately
    This clamp will also work with an external Bosch 0 580 254 044 fuel pump

Fitment Table
