 |  SKU: 20-1328

Radium Engineering Fuel Filter Mount

Chevrolet Camaro 10-15
$149.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

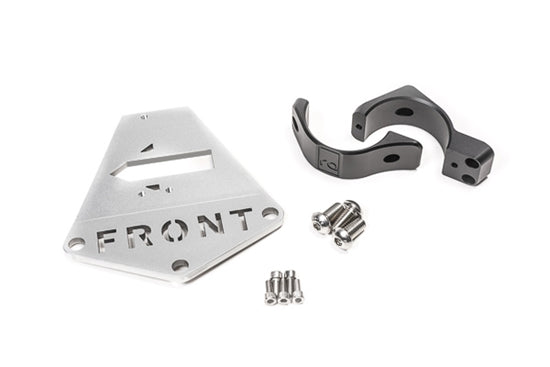

Hardware for installing a Radium Engineering fuel filter in a 5th gen Camaro. Stainless steel M10 bolts secure a thick aluminum bracket to 3 threaded bosses on the chassis. The "FRONT" and engraved arrow are incorporated to prevent the user from installing it upside down and/or backwards. The billet aluminum 60mm clamp secures to this bracket using stainless steel screws.

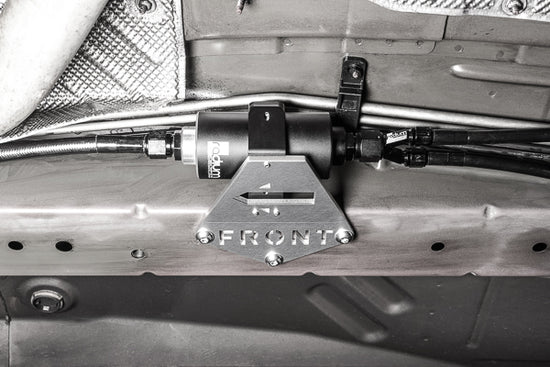

The mounting location is next to the rear of the transmission (RH side). The picture above shows the Fuel Filter and 10AN ORB Fittings (both sold separately).



COMPATIBILITY

  • 10-15 Chevrolet Camaro

Technical Specifications

  • Away from exhaust with just enough ground clearance
  • No permanent modifications required
  • Billet anodized aluminum clamps
  • Anodized aluminum bracket
  • Clamp diameter: 60mm (2.36")
  • Stainless Steel screws

Included Components

  • Fuel filter not included
  • For information on Radium fuel filters, please see this product page
  • Aftermarket fuel lines and fittings will need to be configured separately
  • This clamp will also work with an external Bosch 0 580 254 044 fuel pump

Fitment Table
