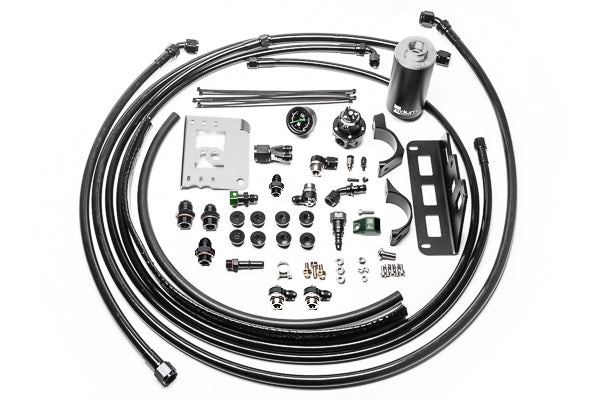

Radium Engineering Fuel Hanger Plumbing Kit

Cadillac CTS-V

$1,349.95
Filter
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

The CTS-V plumbing kits feature dual 6AN PTFE feed lines that route from the fuel hat to the fuel filter. Two fuel lines are required here for the following reasons:

  • A single 8AN fuel line will not fit between the fuel tank and the unibody. The larger combined surface area of two 6AN lines fits nicely.
  • The back half of the OEM fuel line is reused. The stock fuel line incorporates the OEM fuel pressure sensor that is needed for ECU diagnostics.



Comptability

  • 08-15 Cadillac CTS-V

Features and Benefits

  • Repurposed stock feed line as a 6AN return line
  • Aluminum hose retainer bracket.
  • Fuel filter incorporates a built-in check valve
  • A thermal insulating sleeve is included to protect against chaffing and excessive exhaust heat.
  • Anodized bolt-in fuel filter mounting bracket does NOT require any permanent vehicle modifications.
  • A fuel pressure regulator and pressure gauge mounts directly to the RH fuel rail. Radium Engineering 20-0362 fuel rails are required (sold separately).

Fitment Table

Fitment Notes

Suits Left Hand Drive (LHD) Vehicles Only
