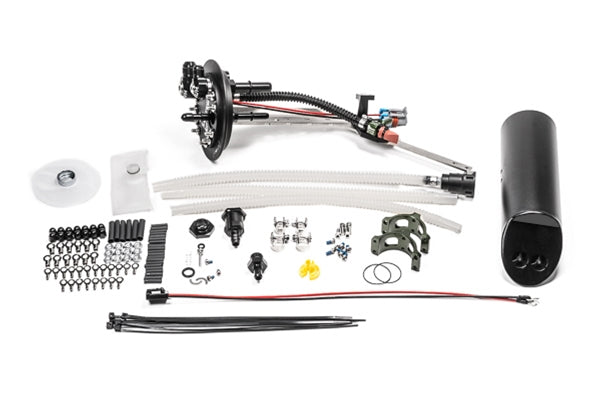

Radium Engineering Fuel Hanger Pumps Not Included

Chevrolet Corvette 14-19
$699.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle is required for installation. A second pump add-on option is available and sold separately. Plumbing kits are available to simplify the installation process and provide high flow fuel lines and fittings.

If 2 aftermarket pumps are required, the dual pump add-on listed below must also be purchased. Choosing the best fuel pump is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure.

FITTINGS

  • The fuel pump outlet is tapped for 10AN ORB (7/8"-14) female threads on the top plate.
  • The included fuel pump outlet fitting is 8AN male.
  • The fuel return inlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate.
  • The included fuel return inlet fitting is 6AN male.

All fittings are machined low enough to clear the surrounding area.

PREVENTING FUEL STARVATION

Several mechanisms work together to move fuel into the integrated collector and keep it full at all times. This ensures the pump has adequate fuel available, even during aggressive driving. The internal pump is supplied with fuel from 3 different sources:

  • The consistent crossover fuel scavenged from the passive side of the fuel tank.
  • The constant low pressure returning fuel from the fuel pressure regulator.
  • Two 1-way fill valves on the bottom of the collector allow fuel in, but not out. Each  valve flows 355LPH keeping the collector as full as the current fuel tank level.

ELECTRICAL

The custom designed stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.



COMPATIBLE PUMPS
The information below lists fuel pumps that have been tested and are verified to fit the corresponding products. There may be other fuel pumps that are similar enough to fit, but have not been verified by Radium Engineering. Visit our technical article on comparable pumps HERE for more information.

  • AEM 50-1000
  • AEM 50-1200
  • Walbro GSS342
  • Walbro F90000267
  • Walbro F90000274
  • Walbro F90000285
  • Walbro F90000295(1)
  • Ti Automotive E5LM(1)
  • Deatschwerks DW440(2)
  • Deatschwerks DW810(2)
  • Protec 11928(2)
  • Fuelab 49614(2)

(1)These pumps do not feature an integrated check valve. Provided in this kit is a high flow check valve that secures to the outlet of these specific pumps.
(2)These pumps have a 41-43mm outer body diameter and require the purchase of the optional 20-0441 Pump Clamp for 41-43mm Bodies listed in the optional parts section.



COMPATIBILITY

  • 14-19 Chevrolet C7 Corvette

NOTE: Because of interferences with the fuel filter mounting, the plumbing kit is compatible with manual transmissions only.

Technical Specifications

  • Drop-In Installation
  • Reuses OEM Crossover Jet Pump Siphon
  • Collector provided to prevent Fuel Starvation
  • Merged 10AN ORB Female Pump-Out Port
  • Compatible with Various Pumps
  • Brushless Fuel Pump Capable
  • Fuel Pump Filter Socks Included
  • Capable of 2 Pumps with Add-On
  • High Current Electrical Hardware
  • Gasoline, Methanol, and E85 Compliant

Included Components

  • Partially assembled fuel pump hanger
  • 2 styles of wiring harness
  • Collector box
  • Filter socks
  • All necessary hardware to install pump into hanger
  • Electrical parts kit for external wiring
