 |  SKU: 20-1792

Radium Engineering Fuel Hanger Walbro F90000274/285 Or Brshls

Honda Integra 90-93/Civic, CR-X 88-91
$389.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation.

The fuel pump is positioned in the factory collector bowl for fuel starvation protection.

PORT FITTINGS

The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. The preinstalled 6AN male fitting permits an aftermarket feed line and/or connects to the plumbing kit listed below. For other compatible adapter fittings, click HERE.

The return inlet is tapped for 6AN ORB (9/16"-18) female threads on the top plate. The provided -6AN male fitting permits an aftermarket return line and/or connects to the plumbing kit listed below. For other compatible adapter fittings, click HERE.

All fittings are machined low enough to clear the trunk sheet metal.

This hanger is configured to be used with 1 aftermarket fuel pump. If 2 aftermarket pumps are required, order the dual pump add-on part number 20-1796 in addition to the hanger.

If installing a brushless pump, the dual pump add-on can NOT be used due to the extra brushless controller wires.

Choosing the best fuel pump(s) is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure. The pumps below are compatible:


ELECTRICAL

The custom designed ant-rotation stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.



Compatible Pumps

  • Walbro F90000267(2)
  • Walbro F90000274(2)
  • Walbro F90000285(2)
  • Walbro F90000295(2)(3)
  • Ti Automotive E5LM (brushless)(2)(3)
  • Protec 11928 (brushless)(1)
  • Fuelab 49614 (brushless)(1)
  • Deatschwerks DW440 (brushless)(1)
  • Deatschwerks DW810 (brushless)(1)

(1)Sock filters are included by the fuel pump manufacture.
(2)Sock filters are included in this kit for these pumps.
(3)These pumps do NOT feature a check valve.



COMPATIBILITY

  • 90-93 Acura Integra (All models/trims/RHD/LHD)
  • 88-91 Honda Civic (All models/trims/RHD/LHD)
  • 88-91 Honda CR-X (All models/trims/RHD/LHD)



INSTALLATION NOTES

  • Single Walbro GSS342 (255LPH) fuel pump installations can re-use the OEM fuel pump wiring.
  • It is recommended to upgrade OEM wiring to ensure the pumps are receiving full power and operating at their full potential.
  • Universal fuel pump wiring kits can be found HERE. Select one for each aftermarket pump.

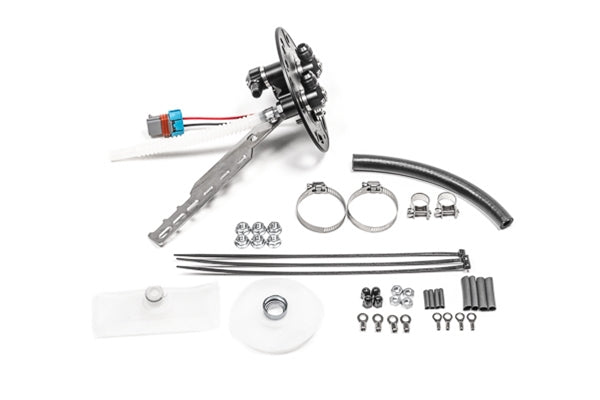

Included Components

These fuel pump hangers include the partially assembled fuel pump hanger and all hardware necessary to install 1 fuel pump into the hanger. It also includes electrical parts to assist in the external wiring at the top hat.
