Radium Engineering Pump Outlet Adapter Check Valve 10mm Barb

$79.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

This adapter is used to integrate a high flow check valve on the outlet of many fuel pumps. The valve outflows the integrated check valve that comes standard on many fuel pump outlets. Furthermore, decreasing this restriction allows the pump to operate at less current. This keeps fuel temperatures lower and prevents cavitation. The two billet aluminum adapter halves are secured together with a stainless steel retainer and bolts that clamp tightly around the pump outlet. A stainless steel plunger and spring are used for making a one-way connection. FKM O-rings seal for a leak free connection and E85 compatibility.

This adapter converts compatible pumps to a 10mm barbed connection.

Ā

Compatibility:

The Radium Engineering check valve is very specific to the pump. It will only work on pumps listed below. Before ordering, make sure the pump outlet hose barb ridges are in excellent condition. Damaged or non-round hose barb ridges may prevent the O-ring from obtaining a positive seal.

  • TI Automotive E5LM (BKS1000 Brushless Controller Kit)
  • TI Automotive E5LM (BKS1001 Brushless Controller Kit)
  • Walbro/TI Automotive F90000295
  • Bosch Motorsports BR540
  • Deatschwerks DW400 (pre May 2019)

This may physically fit other pumps, but many of those will have internal check valves. If the adapter is needed, go to our page for Fuel Pump Outlet Adapters without check valves.

Technical Specifications

We have tested fuel pumps with and without check valves. With any check valve, flow and current draw will be affected. The two check valves tested were the standard integrated pump outlet check valve and the Radium Engineering check valve.

Standard integrated check valve
Flow Restriction: 46-76 LPH
Current Draw: 3.2-4.8 Amps

Radium Engineering check valve
Flow Restriction: 15 LPH
Current Draw: 0.5 Amps

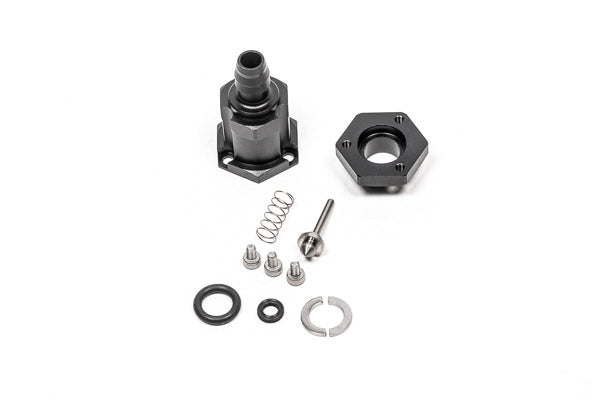

Included Components

  • Anodized aluminum Top, 6AN male or 10mm barb
  • Anodized aluminum bottom base
  • Check valve plunger and FKM o-ring
  • FKM o-ring
  • Half moon retainers (x2)
  • Check valve spring
  • Stainless steel hardware
