 |  SKU: 20-1104-V

Radium Engineering Remote Mount Vented Female Dry Break 1.5In Elbow

$609.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Dry breaks allow quick fuel filling with no mess. The male dry break probe connects to a dump can fuel jug and the female dry break receiver installs on the vehicle's fuel filler. When the two couplings mesh together, both valve seals open and close with synchronized timing permitting no fuel leaks. Furthermore, it is no longer necessary to monitor the filling process when the dry break is used in conjunction with the 20-0535 Radium DSV Valve as vented air flow is automatically shut down when full.

Designed for remote mounting to an external surface such as a fender. Requires a 77mm (3.03") hole to be fabricated. Includes a 1.5in female dry break as well as a gasket, stainless steel hardware, an aluminum housing and aluminum nut ring. Also, an aluminum 1-7/8" wrench and a 75 degree 24AN hose end with a 1.5in barb. The vented fuel cap has roll-over protection in case the vehicle ever becomes inverted. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.).

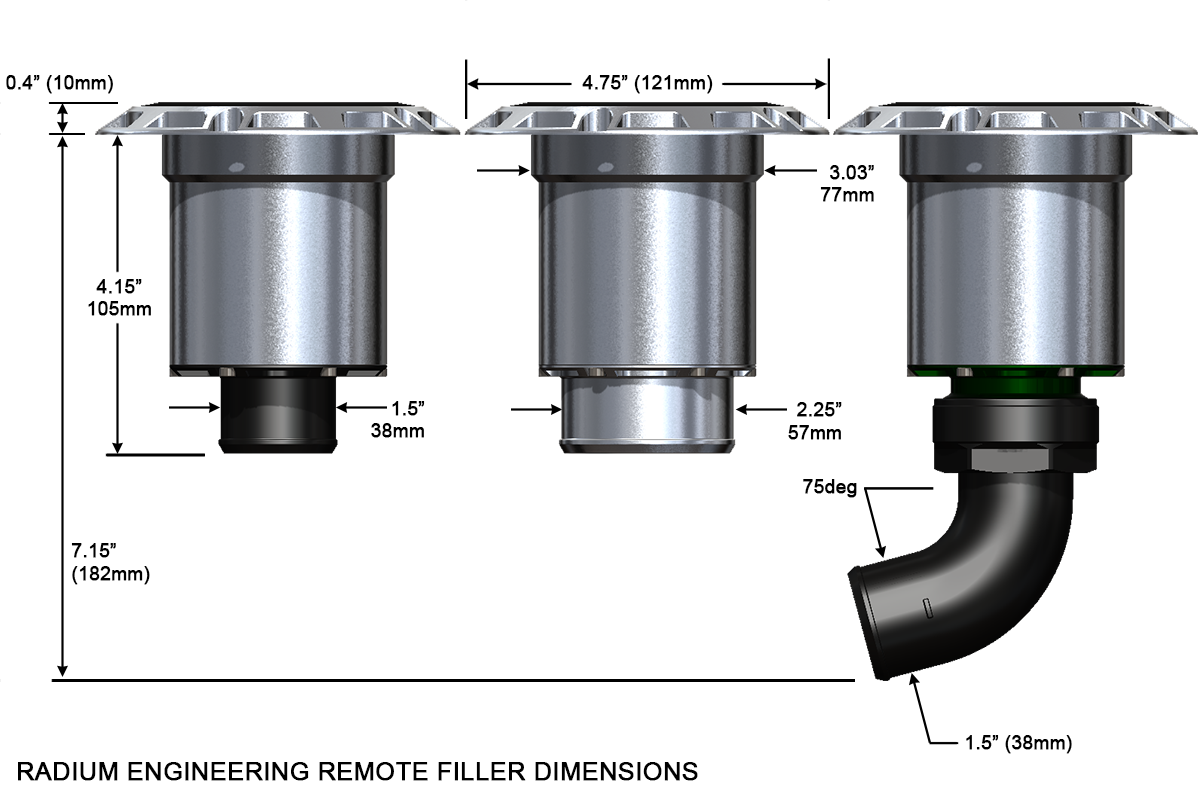

Technical Specifications

  • Filler Hose Requirement: 1.5"
  • Flange Outer Diameter: 4.75"
  • Bolt Circle Diameter: 4.25" PCD
  • Hose End Connection: 24AN
  • Hose End Angle: 75 degree
  • Mate: 20-0996 (or 20-0496) Dry Break, 1.5in, Male, PRV

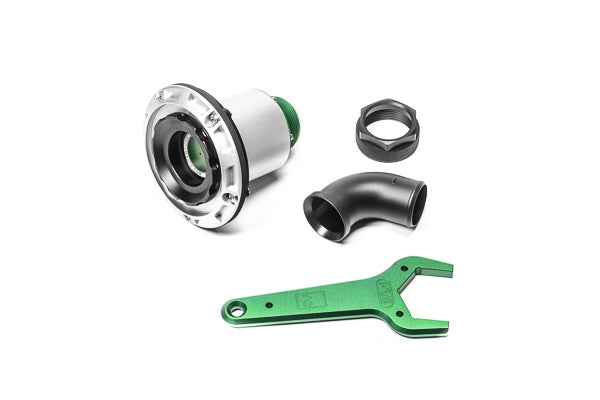

Included Components

  • Remote mount housing
  • Dry break receptacle
  • 24AN adapter
  • 24AN wrench
  • 24AN b-nut
  • 75° bend 1.5" barb
  • Threaded mounting ring
  • Gasket
  • Stainless steel hardware
