Radium Engineering Triple Fluid Lock Catch Can Kit

NOTE: For RHD vehicles, some modifications may be required for PCV catch can mounting.

Radium Engineering Catch Can kits mount using factory holes and integrate perfectly with the surrounding components. They do NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems remove the oil and sludge from the PCV gasses before it is routed to the engine to be burned. A closed loop system also promotes negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors from entering the cabin. The dipsticks built into the catch cans allow easy inspection of accumulated fluid. No cutting, drilling or permanent modifications are required.

Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick.

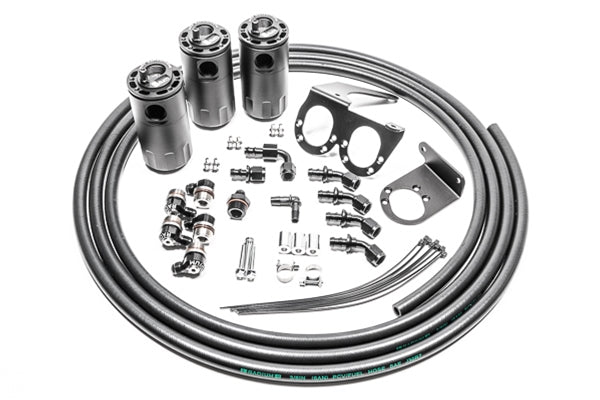

The Triple Catch Can Kit includes:

• The 20-0565 PCV line kit: Mounts near the brake master cylinder in the back of the engine bay and interfaces with the hose that goes from the PCV valve on the engine to the intake manifold (vacuum). NOTE: The PCV kit is NOT directly compatible with 08-11 GT-Rs which did not have an OEM strut bar.

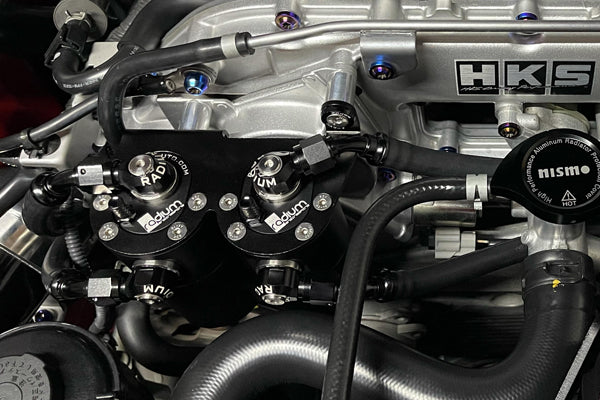

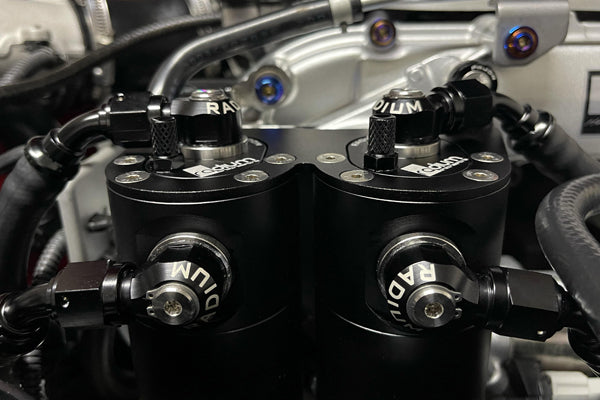

• The 20-0555 Crankcase vent kit: Mounts on the front of the engine and interfaces with the breather lines coming off of the heads and going to the turbo intake piping. This kit contains two catch cans (one for each head breather).

Both kits working together offer the most protection from oil ingestion into the engine. The PCV side kit is effective at keeping oil out of the intake manifold when the PCV valve is open, such as during light cruising, idle, etc.  When in boost, the PCV valve closes and all the engine blow-by comes out of the head breathers. This is a good reason to have catch cans on the crankcase breathers.

• Anodized oil catch can(s) with integrated condenser and dipstick(s)
• Anodized aluminum R35 GT-R specific mounting brackets
• Anodized aluminum -AN adapter fittings and hose ends
• Stainless steel mounting hardware
• Radium Engineering PCV hose
