 |  SKU: 20-1047

Radium FCST-X 3-Bolt Remote Mount Fill Neck - 24AN Elbow - 1.5" Barb

$239.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

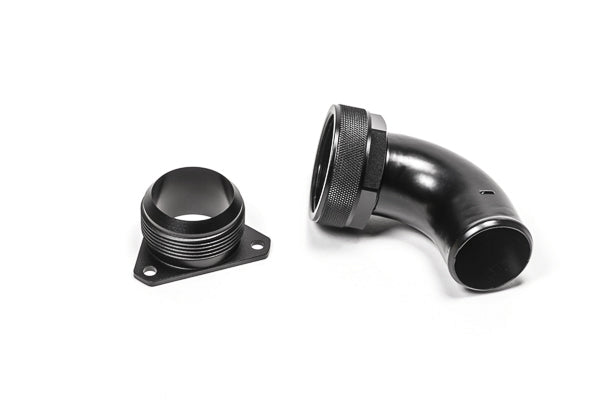

This fill neck is primarily used with a body-mounted remote filler (see 20-0505-V). The 24AN fill neck mates to a 24AN hose end capable of 360-degree rotation. It features a 75 degee elbow and uses a 1.5in barb (filler hose available). A bespoke 1-7/8in aluminum wrench is provided for tightening the B-nut and prevent marring. The fill neck features a flapper check valve for rollover protection.

Ā

Notes:

  • Only suitable for Radium FCST-X (older FCST are not compatible)
  • The remote mount fill necks do not require a flapper valve (roll over valve is integrated into the FCST-X)

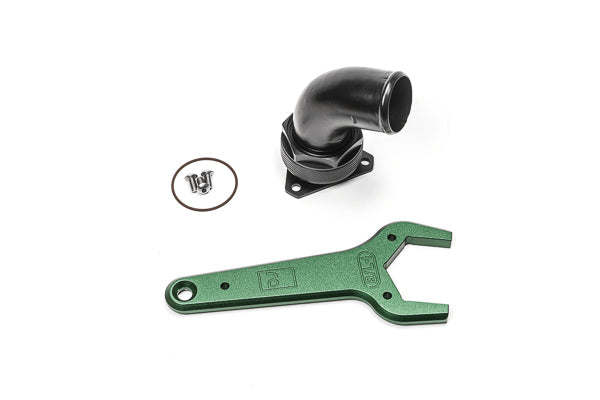

Included Components

  • 24AN Flanged Fill Neck
  • 24AN Hose End Elbow for 1.5in ID Hose
  • Aluminum Wrench, 1-7/8in
  • FKM O-ring Seal
  • Stainless Steel Hardware
  • Note: Does not include filler hose, fuel cap, etc.

Fitment Table
