 |  SKU: 20-0873-FL

Radium Fluid Lock Catch Can Kit

BMW 3-Series E46 (Excl M3)
$599.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

NOTE: BOLT ON FOR LHD ONLY. RHD WILL REQUIRE CUSTOM MOUNTING SOLUTION

An oil catch can is essential on a performance vehicle to protect the engine from elevated levels of crankcase blow-by accumulated from aggressive driving. Excess oil saturated air circulating back into the air intake stream can lead to degraded performance. Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick.

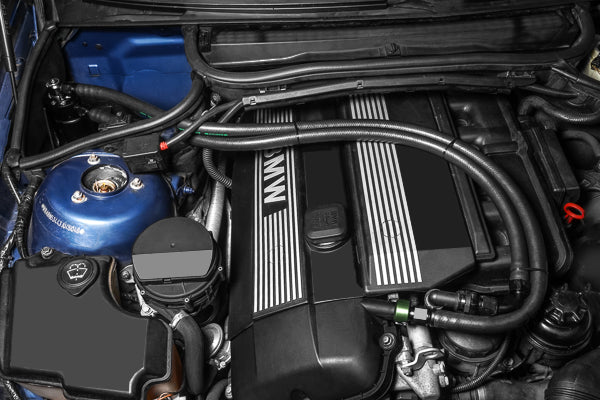

The catch can mounts in the RH compartment of the engine bay near the firewall. Thus, it is not compatible with RHD models. It is compatible with early models where the ABS module is mounted in this compartment.

Radium Engineering's closed loop system does NOT vent to atmosphere (VTA), thus is emissions and track legal. Instead, clean filtered air routes back in through the engine to be burned and to promote negative crankcase pressure for optimal performance. Furthermore, a closed system prevents unwanted oil vapors entering into the cabin.

Features and Benefits

  • Effectively raises fuel octane and increases performance with cleaner intake air
  • Prevents oil buildup in the throttle body, intake, manifold, etc.
  • Excessive oil collection can be an indicator of a damaged engine
  • Stainless steel filtration media is cleanable and reusable
  • Lowers hydrocarbon emissions
  • Capacity: 7 fluid ounces
  • Height (without fittings): 5 inches
  • Outside Diameter: 2.45 inches

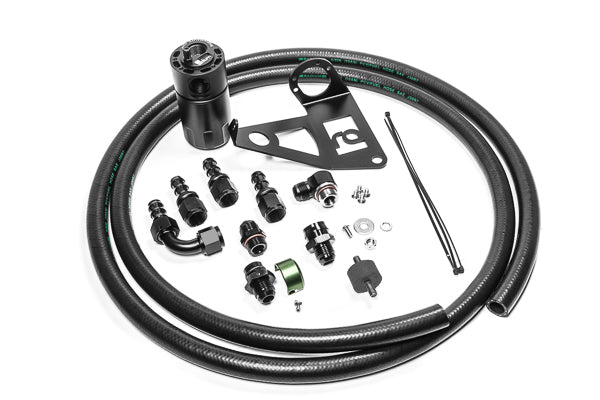

Included Components

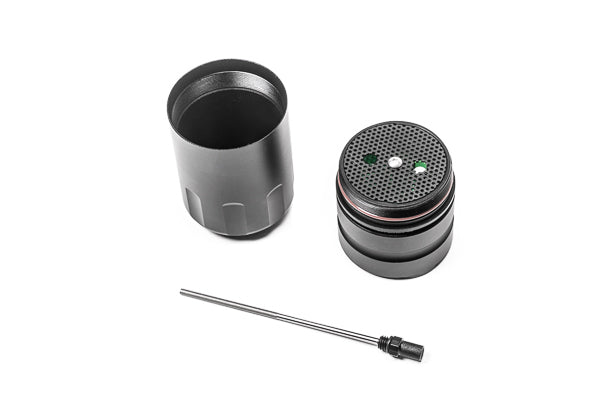

  • Billet aluminum oil catch can with integrated dipstick
  • Laser cut anodized E46 specific mounting bracket
  • Anodized aluminum 10AN hose ends and adapter fittings
  • Anodized aluminum V2 quick connect 10AN adapter fittings
  • Enough 10AN (5/8") PCV hose to work with modified vehicles
  • Stainless steel mounting hardware and hose clamps

Fitment Table
