 |  SKU: 20-0946-05

Radium Fuel Feed Line Kit w/Microglass Filter

Mitsubishi Evo X
$780.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Supersedes # 20-0246-05

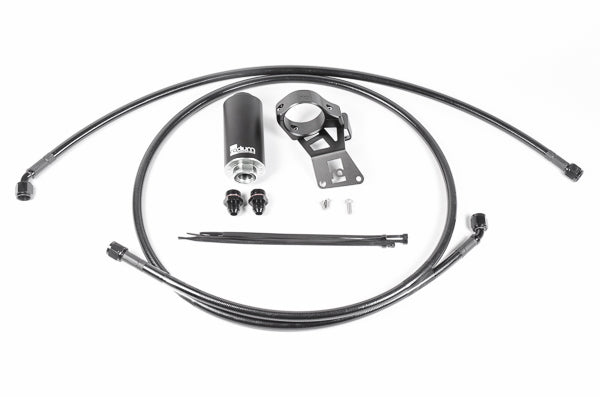

This kit is compatible with all Mitsubish Lancer Evolution X vehicles. It is used to upgrade the fuel feed line on the Evo X. The factory fuel feed line is 5/16" (8mm) inside diameter, which can become a restriction when using high flowing aftermarket fuel pumps. The feed kit provides a high-flow 8AN PTFE hose and fuel filter for a restriction-free fuel feed line (kit contents shown below). The fuel filter incorporates an integrated check valve. The engine must be equipped with a fuel rail that can accept an 8AN feed hose, such as this one.

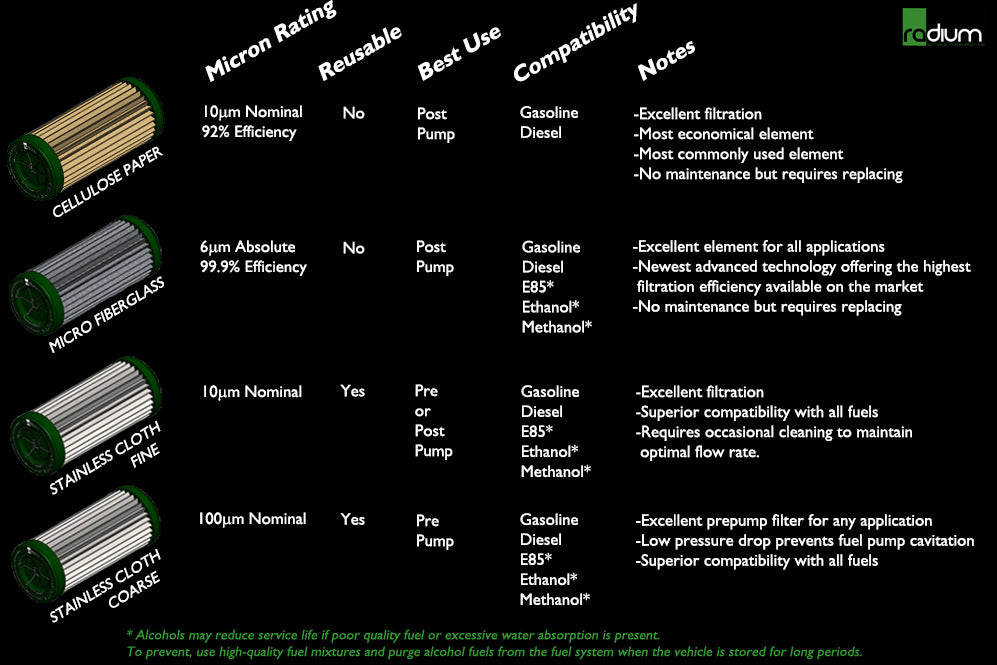

Depending on the kit selected (-03 or -05), the fuel filter will be assembled with one of two different elements.

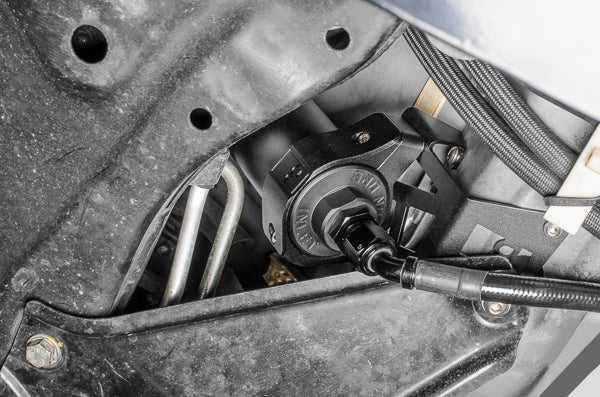

The kit includes a specially designed mounting bracket for the fuel filter which uses OEM mounting holes, so no drilling or chassis modifications are required for installation.



Kit Contents:

  • Fuel Filter (-03 Stainless, -05 Microglass)
  • 8AN Adapter Fittings (x2)
  • 2-Piece 60mm Filter Clamp
  • Aluminum EVOX Filter Bracket
  • 8AN PTFE Fuel Feed Hose Replacement (x2)
  • Stainless Steel and Aluminum Hardware

Fitment Table
