 |  SKU: 20-0597

Radium Fuel Fill Neck Hose Kit - 1.5" ID

$178.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

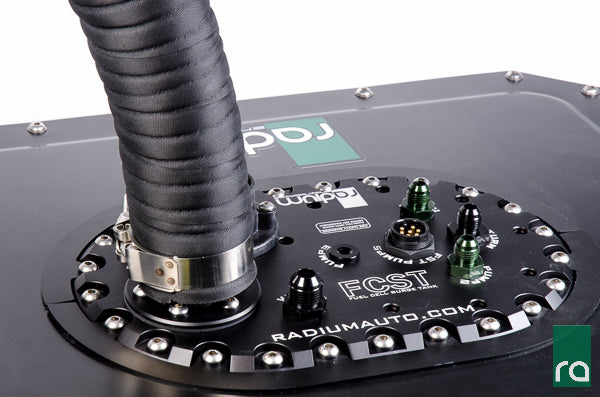

This wire reinforced hose is designed specifically for fuel filling. Internal hose diameters are available in 1.5" and 2.25" making it ideal for many applications including the options here. The hose is used to connect to a body-mounted filler.

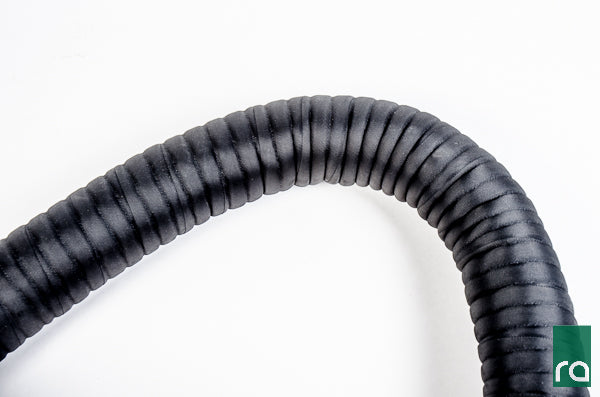

Unlike silicone fuel fill hose, this is convoluted permitting tight bends, as depicted in the photos.

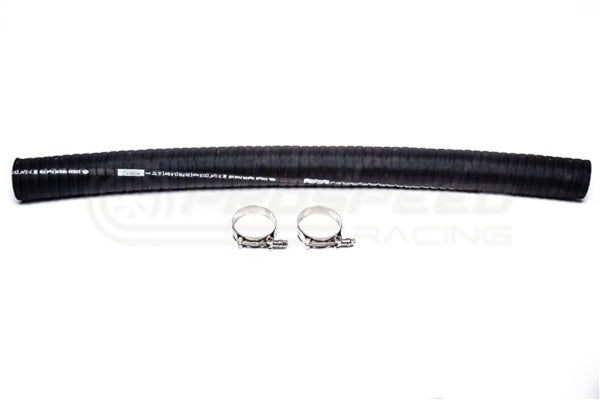

For universal applications, the filler hose is 36" long that can be cut to length. 304 Stainless Steel T-Bolt clamps are included that features a protective smooth inside and permits a 360 degree seal.





Technical Specifications

  • Inside Diameter: 1.5" (38mm) ID
  • Wall Thickness: 0.176" (4.47mm)
  • Length: 3 feet (914mm)
  • Working Pressure: 20-psi maximum
  • Burst Pressure: 90-psi mimimum
  • Bend Radius: 5" minimum
  • Tube Construction: Nitrile
  • Reinforcement: Synthetic Fabric
  • Flex: Two Embedded Helical Wires
  • Cover: Neoprene Coated Fabric
  • Temperature Range: -40F to 212F
  • Standards: SAE 30R5
  • Made in USA

Fitment Table
