 |  SKU: 20-0559

Radium Fuel Filter Mounting Kit

Nissan GT-R R35
$346.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

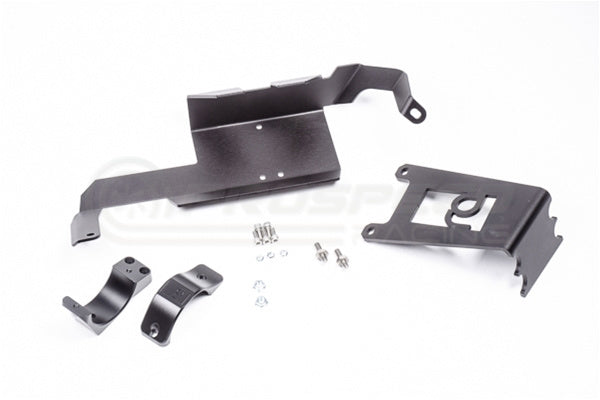

This kit consist of a specially designed heat shield, filter mounting bracket and associated hardware for installing a Radium Engineering fuel filter (sold separately) in the Nissan R35 GT-R. The anodized aluminum bracket secures to the Nissan R35 GT-R chassis using pre-existing threaded bosses. This location is ideal because it is substantially far from the hot downpipes. Also provided is a hose bracket and hardware that secures the fuel hoses further towards the front of the vehicle. All hardware is stainless steel.



Features

  • Uses Threaded Bosses in OEM Chassis
  • No Permanent Modifications Required
  • Billet Anodized Aluminum Clamps
  • Clamp Diameter: 60mm (2.36")
  • Stainless Steel Hardware



Notes

  • The filter is not included in the mount kit.
  • For information on Radium fuel filters, please see THIS PRODUCT PAGE
  • Aftermarket fuel lines and fittings will need to be configured separately.
  • This clamp will also work with an external Bosch 0 580 254 044 fuel pump.


Fitment Table
