Radium Fuel Hanger Plumbing Kit

Mitsubishi Lancer Evo 6
$399.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

This kit provides all necessary connections from the top of the fuel tank to the OEM hard lines at the rear of the vehicle.

Note: Custom hoses and fittings will need to be purchased separately to run larger lines all the way to the engine and back.

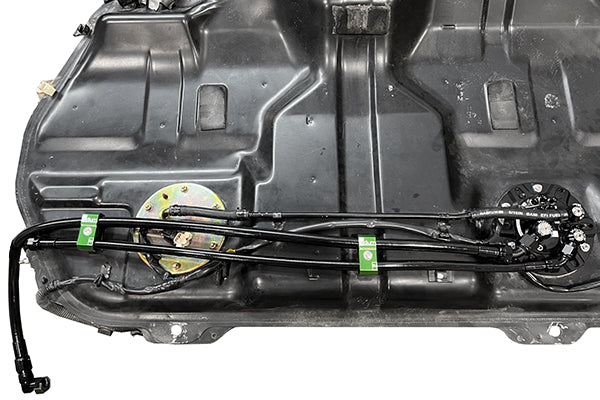

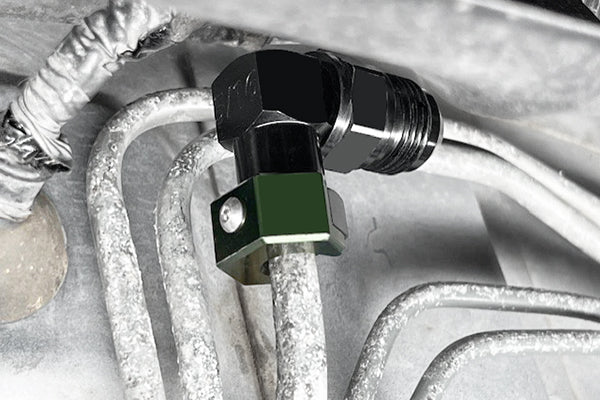

From the pump outlet, a long -8AN PTFE fuel line runs down the right-hand side of the fuel tank. An SAE quick connect adapter is included for secure connection to the OEM hard line.

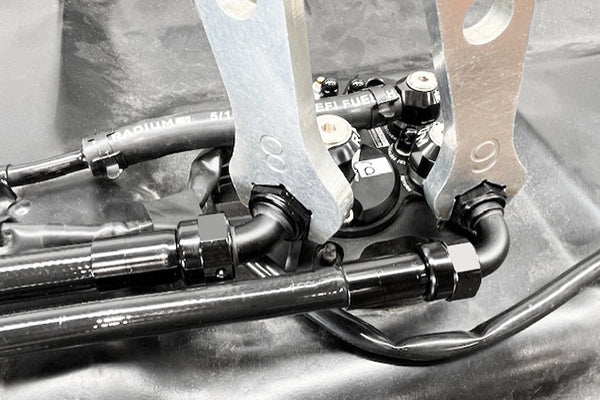

For the return, fuel flows from the OEM FPR through a barbed hard line that terminates underneath the tank. A short rubber hose adapts this connection to -6AN, with a -6AN PTFE hose routing across the tank to the return port on the pump hanger.

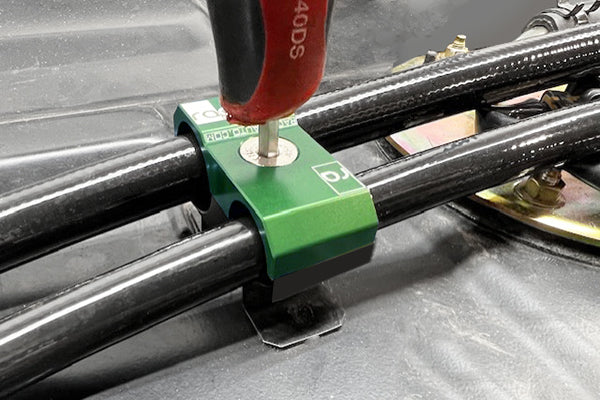

Two anodized aluminum clamps are provided to neatly mount the PTFE fuel lines across the upper front portion of the fuel tank.

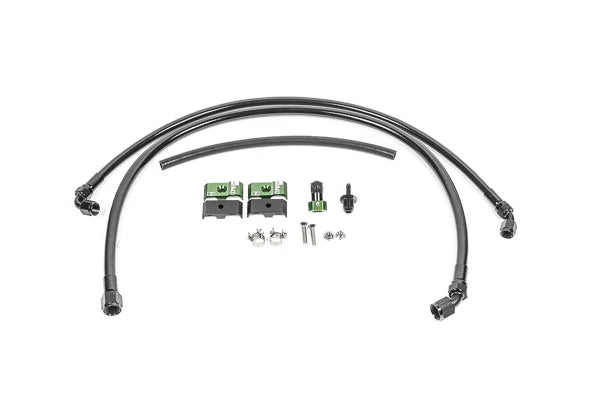

Features and Benefits

  • -8AN PTFE Fuel Feed Hose
  • -6AN PTFE Fuel Return Hose
  • SAE Quick Connect Adapter
  • Stainless Steel EFI Clamps
  • Billet Aluminum Clamps
  • Misc Adapter Fittings
  • -4AN Rubber Hose

Fitment Table
