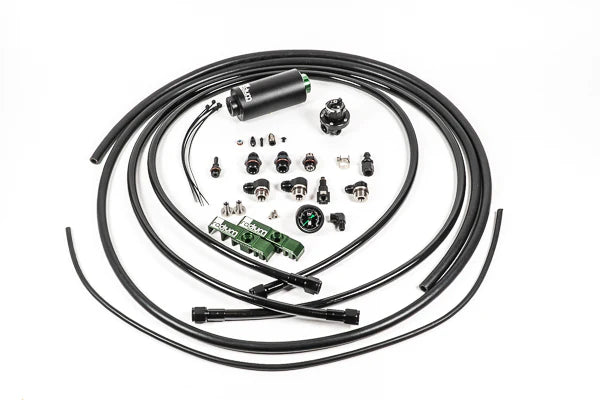

These kits provide all necessary plumbing to and from the engine including a fuel filter, fuel pressure regulator, fuel lines, adapter fittings, and mounting hardware.

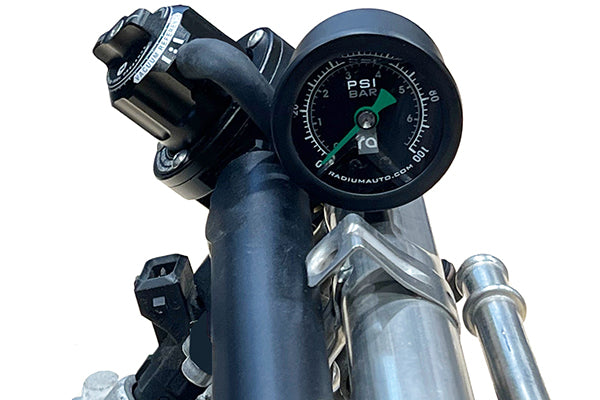

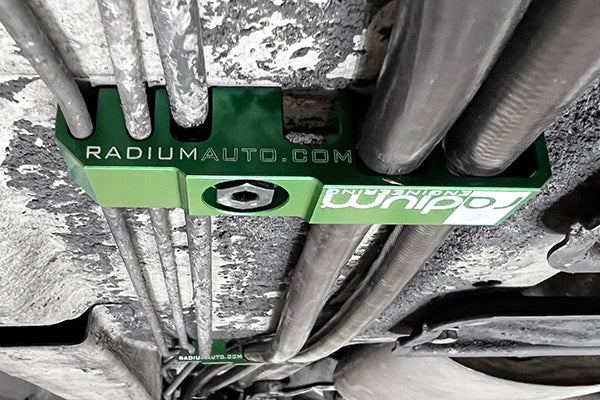

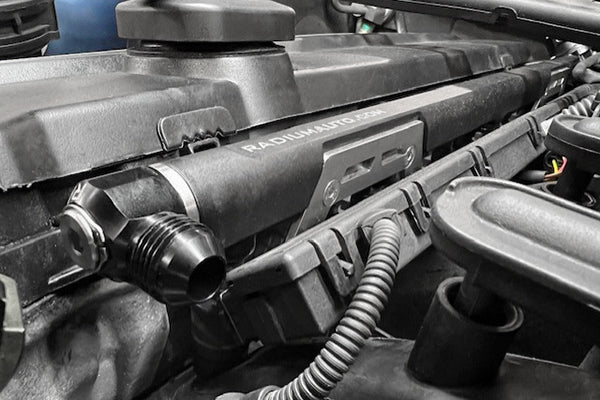

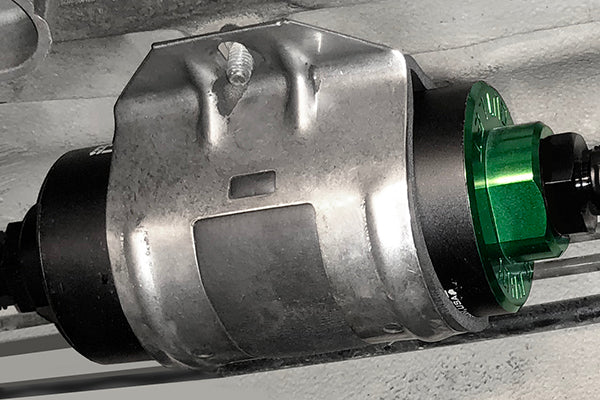

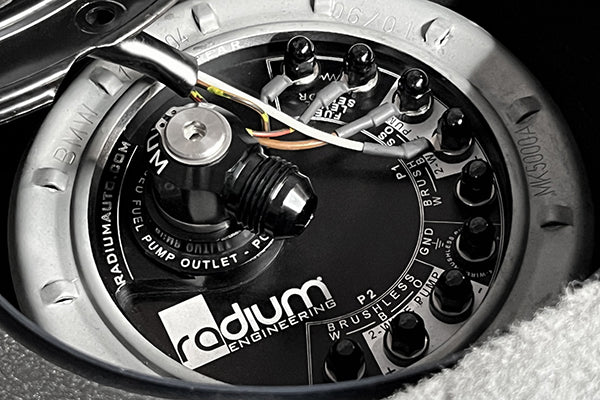

First, a low profile 8AN male banjo fitting is installed to the fuel hanger pump outlet. 8AN PTFE fuel hose runs to the LH side over the top of the fuel tank. It then turns downward and routes along the underside of the chassis through 2 billet fuel/brake line retainers. A new billet high flow fuel filter is mounted in the OEM location. Elements are either 10 micron stainless (-03) or 6 micron microglass (-05). Go HERE for more filter element information. From the fuel filter outlet, another 8AN PTFE fuel hose runs into the engine bay and towards the front of the fuel rail (not included). A low profile 8AN male banjo fitting is installed to the fuel rail. A direct mount fuel pressure regulator and gauge is mounted at the rear of the fuel rail.

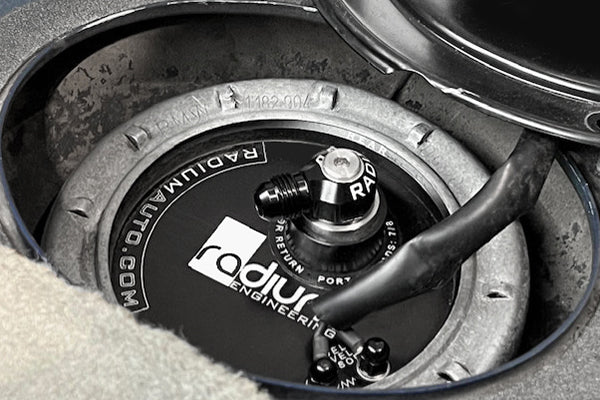

A new 6AN return hose with an SAE quick connect adapter is constructed to route fuel from the direct mount regulator to the rear. A low profile 6AN male banjo fitting is installed to the fuel hanger return port, as shown below.
New vacuum tubing is provided to replace the OEM hard lines.
