 |  SKU: 20-0761-03

Radium Fuel Hanger Plumbing Kit w/Filter

Toyota Supra A90 19+
$988.00
Filter
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

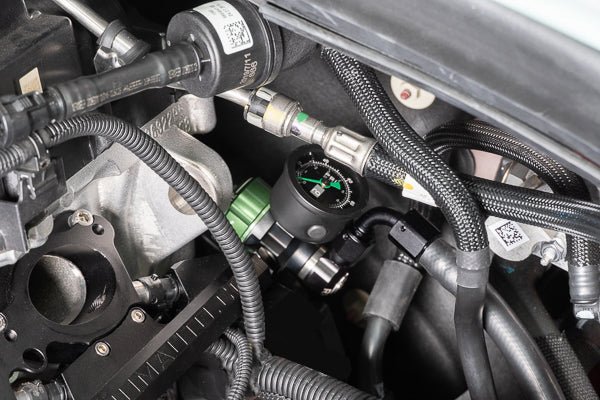

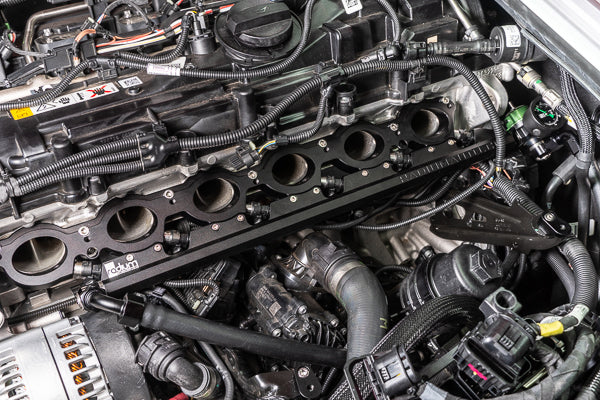

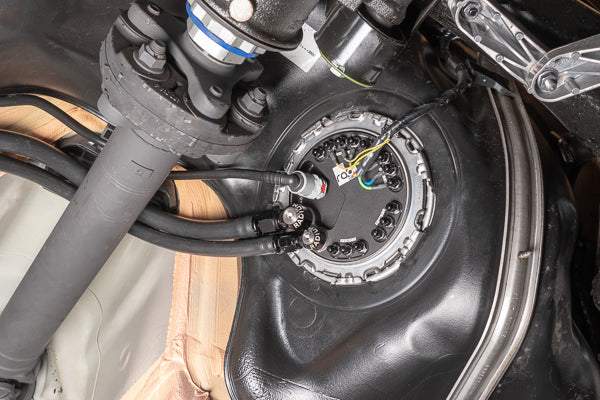

These plumbing kits include everything required to plumb the fuel system between the Radium fuel pump hanger to a port injection fuel rail. A -8AN 90 degree PuskLok hose end is included for connecting to an -8AN male port injection fuel rail fitting (not included). A -6AN 90 degree PuskLok hose end is included for connecting to an -6AN male aftermarket FPR fitting (not included). A -6AN (3/8") fuel hose runs to the fuel pump hanger return port.

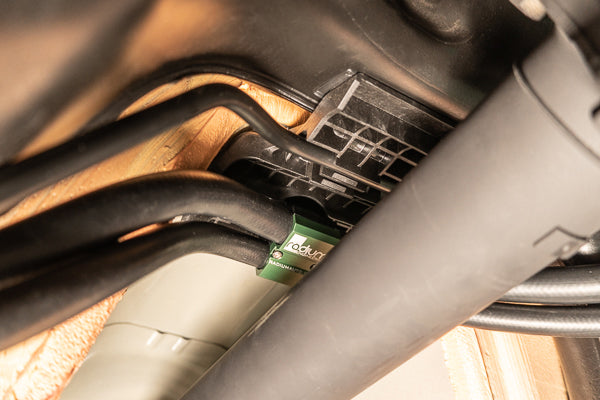

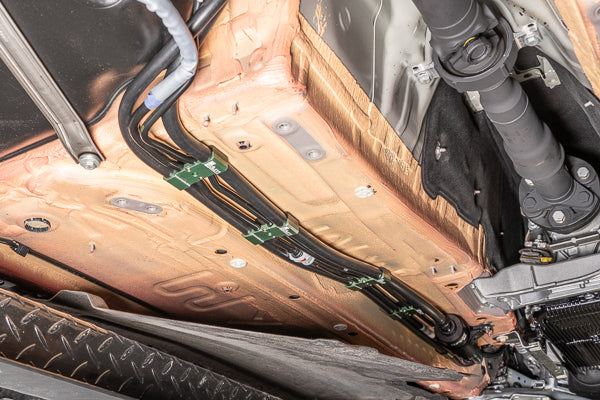

The feed and/or return hose can be easily modified for installation of an in-line flex fuel sensor. Furthermore, the hoses run though billet aluminum fuel line retainers. A special retainer is provided to prevent the lines from contacting the driveshaft and exhaust when crossing over the tunnel.

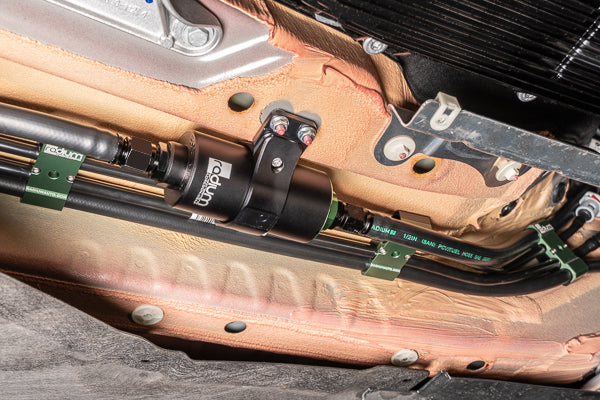

An -8AN (1/2") feed hose runs from the fuel pump hanger through the provided fuel filter using a specifically designed MK5 Supra bolt-on billet mount. Depending on the kit selected (-03,-05), the fuel filter will be assembled with a choice of different elements.

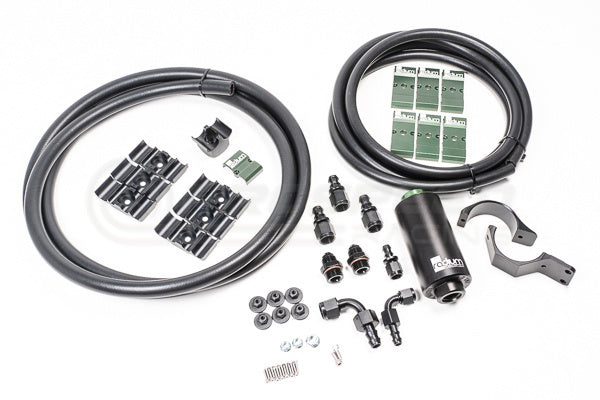

INCLUDES

  • Fuel Filter (-03 Stainless or -05 Microglass)
  • 8AN Fuel Filter Adapter Fittings
  • Billet Aluminum MK5 Supra Filter Mount
  • 8AN and 6AN PushLok Hose Ends
  • 8AN Fuel Feed Hose
  • 6AN Fuel Return Hose
  • Fuel Line Retainers
  • Stainless Steel Hardware



Vehicle Fitment:

  • 2019+ Toyota GR Supra (A90/A91) (with 20-0753 port injection fuel rail and 20-0760 fuel hanger)


Fitment Table
