Radium Fuel Hanger Surge Tank Suit Walbro 460/DW440, No Pumps

The Radium Engineering FHST (fuel hanger surge tank) is the ultimate solution for fuel starvation issues in the Nissan Z33/V35 chassis. Due to the saddle-bag style OEM fuel tank and insufficient baffling, fuel starvation is common when the vehicle is driven aggressively, such as on a track. This results in unstable fuel pressure and possible engine damage from running too lean. A stand-alone surge tank is an excellent device for eliminating fuel starvation issues. But installing a stand-alone FST is difficult specifically in the 350Z due to the open-cabin design, and lack of a firewall between the driver and the rear of the vehicle. So, Radium Engineering chose to create a fully functional fuel surge tank INSIDE the OEM tank.

The Radium FHST can be used with 1 or 2 aftermarket pumps and supplies 1:1 regulated fuel to the engine. No grinding, bending, or modification of the vehicle's sheet metal is required. Furthermore, the system is compatible with alternative fuels such as E85.

HOW THE FHST WORKS

The OEM fuel module contains the pump, fuel pressure regulator, filter and has 2 venturi jet pumps that supply fuel from both sides of the tank. However, the OEM fuel module still suffers from slosh resulting in an interruption of the engine's fuel supply.

The Radium FHST is the best solution in preventing fuel starvation. It installs in the opposite side of the fuel tank from the OEM fuel module and works together to keep fuel delivery consistent in all conditions. The OEM fuel module receives an upgraded fuel pump which is used to send fuel to the Radium FHST keeping the collector box filled. The OEM venturi jet pumps will still function as designed scavenging fuel from the bottom of the tank. The FHST pump(s) are used to supply fuel to the engine through an integrated fuel pressure regulator. As described below, the FHST pump(s) are supplied with fuel from 3 different sources: the pump in the OEM fuel module, the integrated fuel pressure regulator return, and 355LPH one-way fill valves on the bottom of the collector box that allows fuel in, but not out.

NOTES:
1. The OEM venturi system must be used with the Radium FHST.
2. The OEM fuel module must be upgraded to a pump with at least 340LPH (@ 40psi) rated flow in order for the venturi system to work correctly.
3. Do NOT modify the OEM FPR or OEM venturi jet pump.
4. Starvation will NOT prematurely occur, but the fuel level gauge will not read accurately.

INTEGRATED FUEL PRESSURE REGULATOR

Because the Nissan fuel system is "returnless", forced induction tuning can be problematic when a 1:1 fuel to boost pressure ratio is not possible. Like the OEM setup, a fuel pressure regulator (FPR) is integrated into the Radium FHST. The difference is the regulator is externally mounted with an adjustment screw and a vacuum port. If an intake manifold vacuum hose is connected, the FHST's built-in fuel pressure regulator will operate at a 1:1 ratio permitting fuel pressure to proportionally increase with manifold (boost) pressure. Conversely, the vacuum port can remain open to atmosphere and pressure will remain constant (like OEM).

The returning low pressure fuel from the FPR is sent back into the FST collector box keeping it full. Also, 2 fuel return orifices are included for fine-tuning the desired fuel pressure to the fuel pumps' flow rate and potential hose plumbing restrictions. Refer to the installation instructions link above for more details.

NOTE: The Radium integrated regulator should be the only FPR in the fuel system.

ELECTRICAL

The custom designed stainless electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Nonconductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Electrical hardware is included for the fuel pump(s) and OEM level sender. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.

This kit includes 1 relay, 1 fuse, and all associated wiring and hardware to install 1 surge tank pump.

PUMP COMPATIBILITY
Brushed and brushless fuel pump options are available for the FHST. The system is suited, but not limited, to the following fuel pumps:

• Walbro F90000267
• Walbro F90000274
• Walbro F90000285
• Deatschwerks DW440 (brushless)


INCLUDED

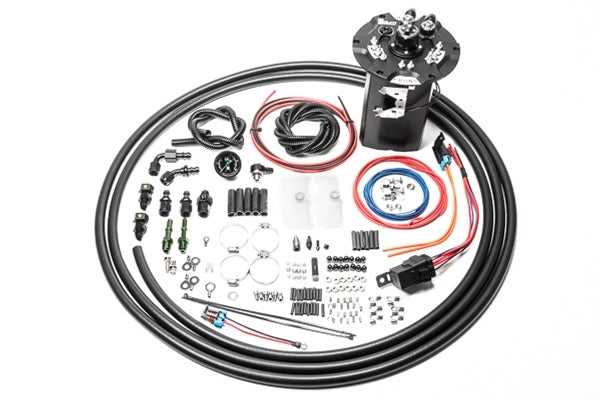

The comprehensive kit includes all parts necessary to complete the installation including a pressure gauge, external fuel hose, fittings, electrical fuse, relay etc. The user must purchase fuel pumps separately.

20-0596 EARLY MODEL FUEL LEVEL ADAPTER, 350Z G35
As shown below, this is necessary to adapt the early style OEM level sensor to the stainless-steel bracket included in the FHST.

Compatibility

• NISSAN 350Z (Jan02 - Jan04)
• NISSAN FAIRLADY Z (Jan02 - Jan04)
• NISSAN SKYLINE COUPE (Jan01 - Mar03)
• INFINITI G35 COUPE (Jan01 - Mar03)



20-0896 FUEL LEVEL ADAPTER, SKYLINE G37 Q50 Q60
As shown below, this is necessary to adapt the fuel hanger surge tank kit to the Infiniti G37, Q50, Q60, and Nissan Skyline.

Compatibility

• NISSAN SKYLINE SEDAN (Dec08 - up (excluding 2.0L Turbo))
• INFINITI G37 SEDAN (Dec08 - up)
• INFINITI Q50 (Nov13 - up (excluding 2.0L Turbo))
• NISSAN SKYLINE COUPE (Dec08 - up)
• INFINITI G37 COUPE (Dec08 - up)
• INFINITI Q60 (Nov13 - up (excluding 2.0L Turbo))

NOTE: A fuel pressure regulator (not included) must be installed downstream in the system. This procedure is not discussed in the instructions.

• Drop-In Installation
• Permits 1 or 2 Surge Pumps
• Brushless Fuel Pump Compatibility
• Integrated 1:1 Adjustable Fuel Pressure Regulator
• Fuel Pressure Gauge
• Fuel Starvation Protection
• High Current Electrical Hardware
• Compatibility with Popular Fuel Pumps
• Anodized Aluminum Construction
• Gasoline, Methanol, and Ethanol Compliant
• Fuel Resistant Tubing and Wiring
• Stainless Steel Hardware
• New Anti-rotation Electrical Terminals

General Notes:

• *Vehicles below require Radium 20-0596 Early Model Fuel Level Adapter, 350Z G35 (see description for further information):
  • NISSAN 350Z (Jan02 - Jan04)
  • NISSAN FAIRLADY Z (Jan02 - Jan04)
  • NISSAN SKYLINE COUPE (Jan01 - Mar03)
  • INFINITI G35 COUPE (Jan01 - Mar03)
• strong>Vehicles below require 20-0896 Fuel Level Adapter, Skyline G37 Q50 Q60 (see description for further information):
  • NISSAN SKYLINE SEDAN (Dec08 - up (excluding 2.0L Turbo))
  • INFINITI G37 SEDAN (Dec08 - up)
  • INFINITI Q50 (Nov13 - up (excluding 2.0L Turbo))
  • NISSAN SKYLINE COUPE (Dec08 - up)
  • INFINITI G37 COUPE (Dec08 - up)
  • INFINITI Q60 (Nov13 - up (excluding 2.0L Turbo))
