 |  SKU: 20-0386

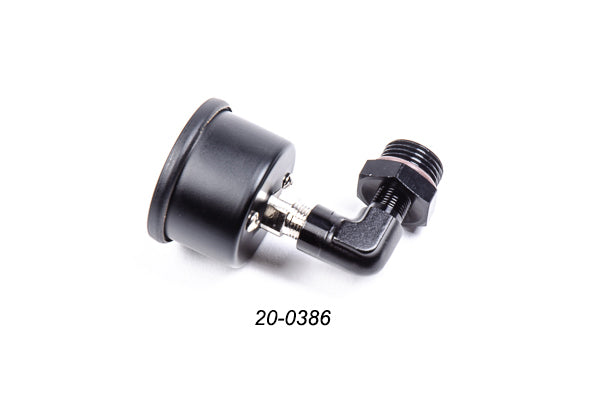

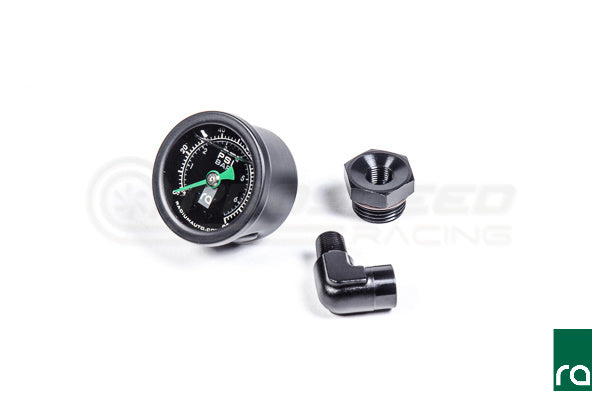

Radium Fuel Pressure Gauge w/8AN ORB Adapter

Incoming :

Product will be in stock soon.

In Stock :

This product is in stock & ready to be delivered.

Very low inventory :

This product has very limited stock remaining.

Out of stock :

This product is not available at this time.

$156.00
Earn 1 Point on this purchase. Learn more

Description

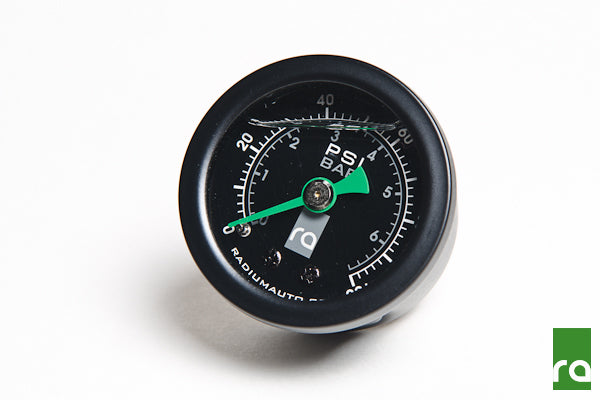

This high-accuracy fuel pressure gauge is suitable for all fueling applications. It features an acrylic lens with a silicone filled dial that reads from 0 to 100psi (0 to 6.9 BAR) with +/- 2% accuracy. The silicone fluid prevents the needle from vibrating for easy pressure readings. The internal bubble is normal. Rugged stainless 1-5/8" OD steel case (1-3/4" OD bezel) with nickel plated male 1/8" NPT fitting. Available with black bezel and housing only.



NOTES:

  • The internal silicone bubble is normal.
  • Overpressurizing can permanently misalign the needle calibration.
  • PTFE thread sealant paste should always be used on NPT threads.
