 |  SKU: 20-1085-03

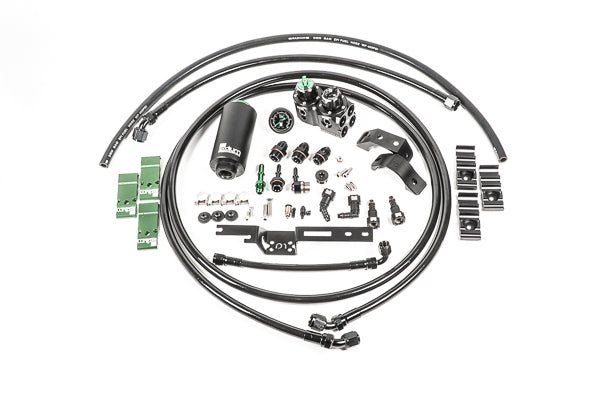

Radium Fuel Pump Hanger Plumbing Kit

Honda Civic Type R FK8 17-21
$1,399.00
Filter
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

These kits provide all necessary plumbing to and from the engine including a fuel filter, fuel pressure regulator, fuel lines, adapter fittings, and mounting hardware. First, a 8AN PTFE fuel line is installed to the fuel hanger pump outlet, as shown below.

The 8AN PTFE fuel hose runs behind the fuel tank. A high flow fuel filter is mounted to the LH side of the fuel tank using a 2-piece billet mount. Elements are either 10 micron stainless (-03) or 6-micron microglass (-05). From the fuel filter outlet (shown below), another 8AN PTFE fuel line runs towards the front of the vehicle.

To accept the new large feed line, new billet aluminum fuel/brake line retainers (shown below) replace the factory plastic retainers.

A dual fuel pressure regulator (DFPR) is mounted on the firewall using OEM threaded holes. With the DFPR regulator, there are 2 independent fuel pressure outputs. For the OEM direction injection system, the black knob and a 0-100psi gauge is used to calibrate the LPFP fuel pressure. If an aftermarket port injection system is ever installed, there is a separate independent outlet port. A port injection system, an 8AN ORB DFPR adapter fitting, and a fuel line is all that would be required. These plumbing kits come with a 8AN ORB plug for this port. NOTE: Port injection fuel pressure is calibrated using the green knob.

In the engine bay, 6AN (3/8") EFI fuel hose and SAE quick connect adapters are provided to convert the OEM fuel feed line into a fuel return line.

At the rear, 6AN PTFE fuel line and an SAE quick connect are provided to adapt the OEM fuel line to the new return port.

Included Components

  • DFPR Fuel Pressure Regulator
  • 0-100psi Fuel Pressure Gauge
  • Filter (-03 Stainless or -05 Microglass)
  • 8AN Fuel Filter Adapter Fittings
  • 8AN and 6AN Fuel Hanger Fittings
  • Fuel Brake Line Retainers (x3)
  • 8AN PTFE Fuel Feed Hoses
  • SAE Quick Connect Adapters
  • Stainless Steel Hardware
  • 5/32" Vacuum Tubing
  • Misc Adapter Fittings

Fitment Table
