 |  SKU: 20-0629-03

Radium Fuel Rail Plumbing Kit w/Filter

Subaru WRX 08-14/STI 08-21/FXT 08-13/LGT 04-09

Incoming :

Product will be in stock soon.

In Stock :

This product is in stock & ready to be delivered.

Very low inventory :

This product has very limited stock remaining.

Out of stock :

This product is not available at this time.

$988.00
Select Filter
Earn 1 Point on this purchase. Learn more

Description

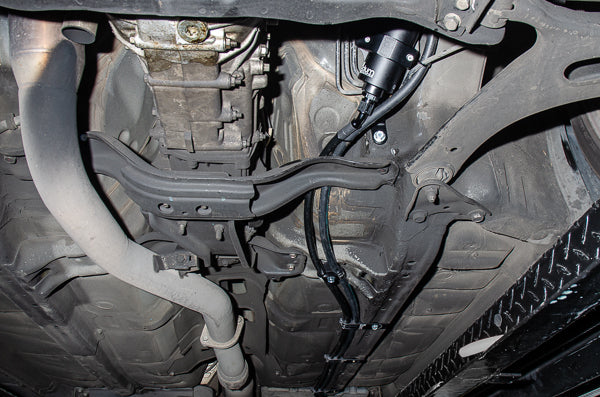

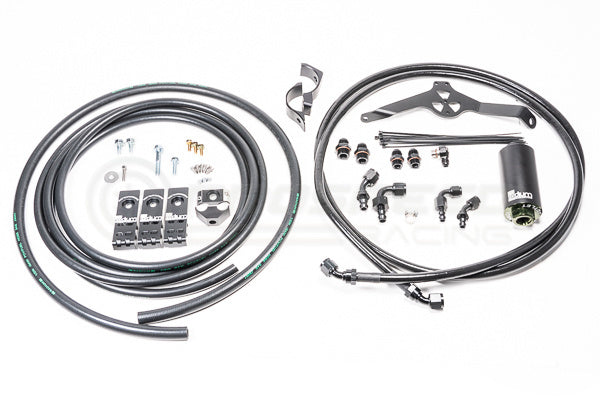

These optional fuel hanger plumbing kits include a filter, hose, fittings, hardware, etc. They add the necessary post pump filtration required when using the Radium Engineering fuel pump hanger. An 8AN PTFE feed line routes from the Radium hanger up to the Radium fuel filter mounted under the vehicle. From the filter, an 8AN rubber hose is supplied to go to the fuel rails.

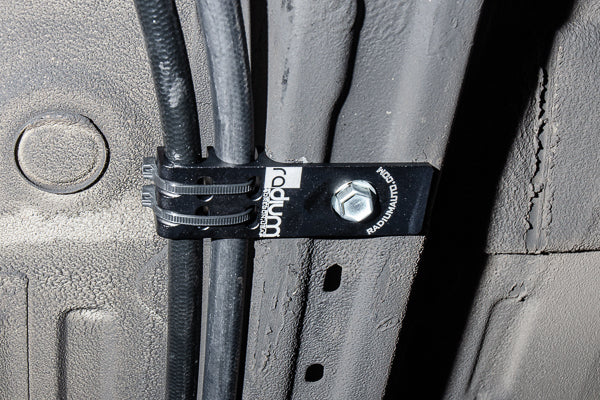

A 6AN rubber return hose is included that routes fuel from the fuel pressure regulator back to the fuel pump hanger. As shown below, billet aluminum retainers are included to secure the fuel lines. The only difference between the 2 kits is the filter element (20-0629-03=stainless, 20-0629-05=microglass).

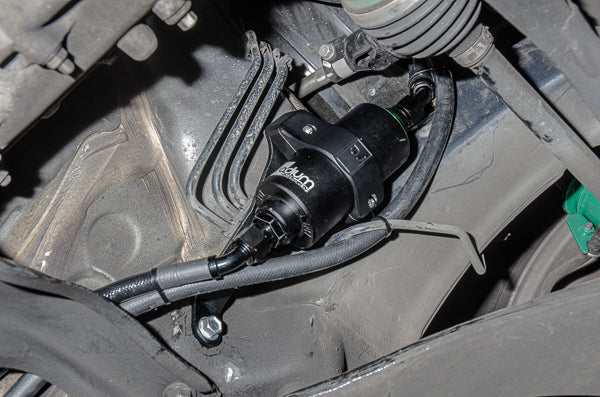

The filter bracket mounts to the chassis with no drilling or permanent modifications required.

NOTE: Aftermarket fuel rails and fuel pressure regulator are recommended.



Vehicle Fitment:

  • 2008-2014 Subaru WRX
  • 2008-2014 Subaru STI
  • 2015-2021 Subaru STI
  • 2008-2013 Subaru Forester XT
  • 2004-2009 Subaru Liberty GT


Fitment Table
