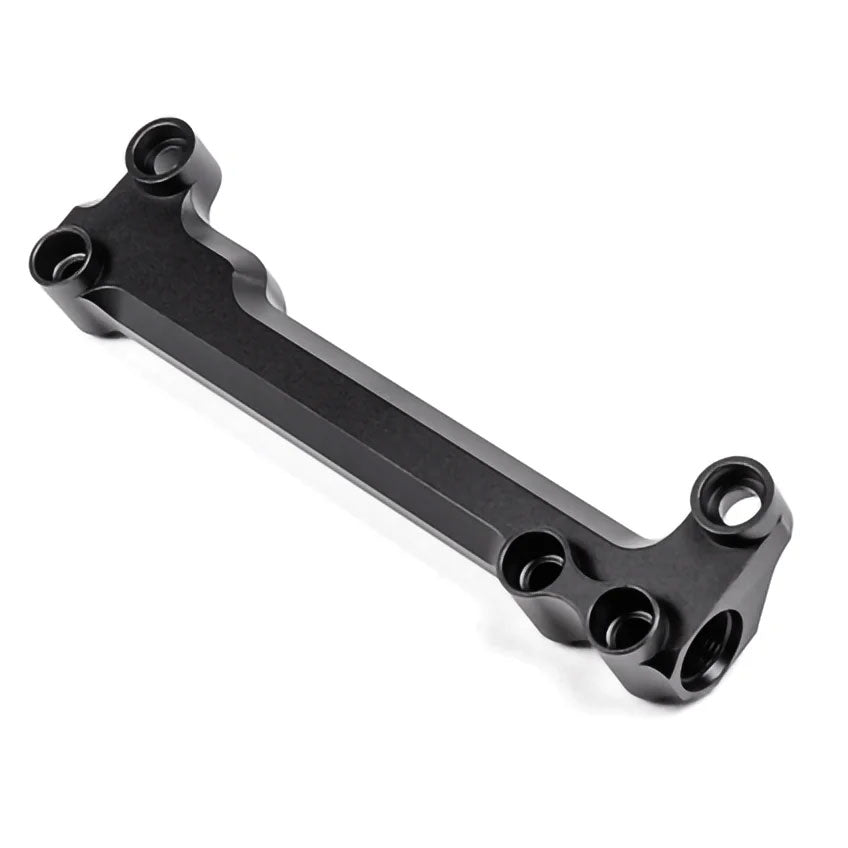

Radium Primary Top Feed Conversion Fuel Rail

Mazda Cosmo JC (20B-REW)
$349.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Designed specifically for the 20B-REW rotary engine in the 1990–1995 Mazda / Eunos Cosmo, the Radium Primary Top Feed Conversion Fuel Rail (SKU: 20-1120) provides a high-flow, reliable foundation for performance fuel systems. CNC-machined from billet aluminium and hard anodised in black, this rail is compatible with all common pump fuels, including E85, and is built to support substantial power increases over stock.

The large internal bore ensures consistent fuel delivery for high-output applications, while the supplied thermal insulating spacers and washers help reduce heat transfer from the engine into the fuel, improving consistency and reducing the chance of vapour lock. The included 14 mm lower injector seats are designed to work with or without the OEM diffusers and feature FKM O-rings, making them suitable for boosted and high-pressure setups.

Three 8AN ORB ports provide flexible plumbing options and ample provision for additional accessories. The centre port can be used for items such as the OEM fuel temperature sensor (with the appropriate adapter), a pressure transducer, or a Radium fuel pulse damper. This makes the kit an ideal choice for both street and track Cosmo builds that require a tidy, upgradeable fuel system solution.

This rail requires universal top-feed injectors with 34 mm body height and 14 mm O-rings (not included). Popular Injector Dynamics options with these dimensions include the 1050-XDS, 1300-XDS, 1700-XDS and 2600-XDS series.

Note: Fuel injectors, fittings, regulators, gauges and other accessories are sold separately. Appropriate 8AN ORB fittings and components must be selected to suit your specific installation.

Features and Benefits

  • Vehicle-specific fitment – Designed for the 20B-REW in the 1990–1995 Mazda / Eunos Cosmo for a clean, bolt-on installation.
  • High-flow internal bore – Supports significant power increases and high fuel demand applications.
  • E85-compatible construction – Black anodised billet aluminium resists corrosion and is compatible with all common fuels, including E85.
  • Reduced fuel temperature – Thermal insulating spacers and washers help limit heat soak into the fuel.
  • Boost-ready injector seats – 14 mm lower injector seats with FKM O-rings provide reliable sealing in high-pressure and boosted setups.
  • Flexible plumbing options – Three 8AN ORB ports allow various feed/return configurations and simple integration of accessories.
  • Accessory-friendly centre port – Extra middle port can house an OEM fuel temperature sensor, pressure transducer, fuel pulse damper and more.
  • Supports common performance injectors – Accepts 34 mm top-feed injectors with 14 mm O-rings, including popular Injector Dynamics XDS part numbers.

Technical Specifications

  • Application: 1990–1995 Mazda / Eunos Cosmo 20B-REW (primary rail conversion)
  • Material: CNC-machined billet aluminium, black anodised
  • Fuel compatibility: Petrol and E85-compatible
  • Ports: Three x 8AN ORB ports
  • Injector style: Top feed (universal)
  • Required injector dimensions: 34 mm overall height, 14 mm upper and lower O-rings
  • Injector seat O-rings: FKM (suitable for boosted applications)
  • Thermal management: Supplied with insulating spacers and washers
  • SKU: 20-1120

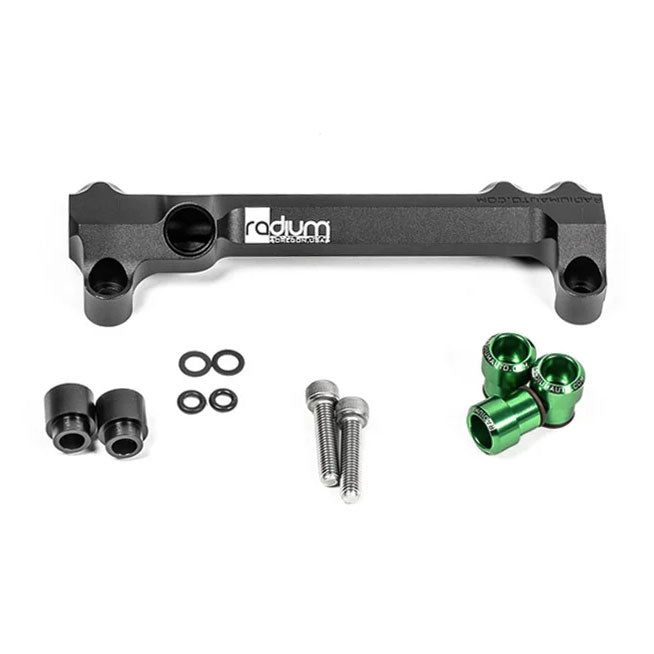

Included Components

  • Anodised billet aluminium primary fuel rail
  • Anodised billet aluminium 14 mm injector seats
  • Thermal insulating spacers
  • Stainless steel mounting hardware and washers
