 |  SKU: 20-0504-V

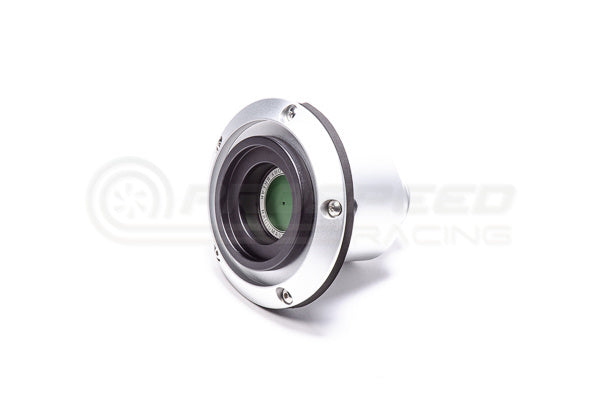

Radium Remote Mount Dry Break Filler - 1.5" - Female Fitting - Vented

Incoming :

Product will be in stock soon.

In Stock :

This product is in stock & ready to be delivered.

Very low inventory :

This product has very limited stock remaining.

Out of stock :

This product is not available at this time.

$560.00
Earn 1 Point on this purchase. Learn more

Description



The 20-0504-V Dry Break, 1.5in, Female, Remote Mount, Vented typically secures to the vehicle body. The vented fuel cap has roll-over protection if the vehicle ever becomes inverted. The fill neck has a machined hose barb connection for 1.5" filler hose (available HERE). The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.). The outer diameter is 4.75" and uses 4.25" P.C.D for the five M5 bolts. Total height is 4.1". Requires a 77mm (3.03") hole to be fabricated.



Included:

  • 20-0549-V Dry Break, 1.5in, Female, Vented
  • Flanged Fill Neck for 1.5" ID Hose
  • Ozone/Flame Resistant Gasket
  • Anodized Aluminum Nut Ring
  • Stainless Steel M5 Bolts



Notes:

  1. Does not include accessories to connect to the fuel tank.
  2. Is compatible with the simple fuel cap (Radium 20-0548-V Fuel Cap, Remote Mount, Vented).


Technical Specifications

  • Filler Hose Requirement: 1.5"
  • Flange Outer Diameter: 4.75"
  • Bolt Circle Diameter: 4.25" PCD
  • Height: 4.08" (Dry Break to Barb)
  • Mate: 20-0496 Dry Break, 1.5in, Male
