 |  SKU: 20-1005-V

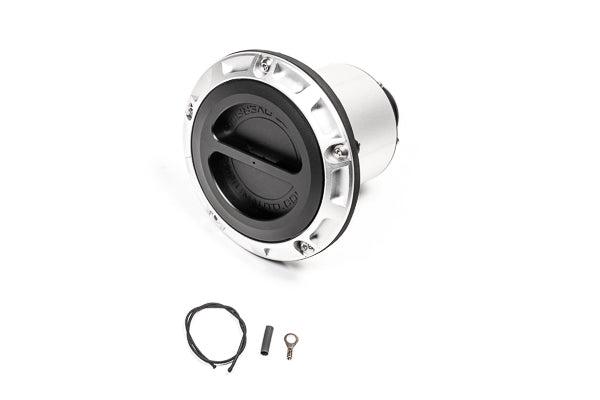

Radium Remote Mount Filler - 1.5" Vented

$319.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

*Supersedes 20-0505-V *

The fuel filler typically secures to the vehicle body. The vented fuel cap has roll-over protection if the vehicle ever becomes inverted. The fill neck has a machined hose barb connection for 1.5" filler hose. The outer diameter is 4.75" and uses 4.25" P.C.D for the five M5 bolts. Total height is 4.1". Requires a 77mm (3.03") hole to be fabricated.

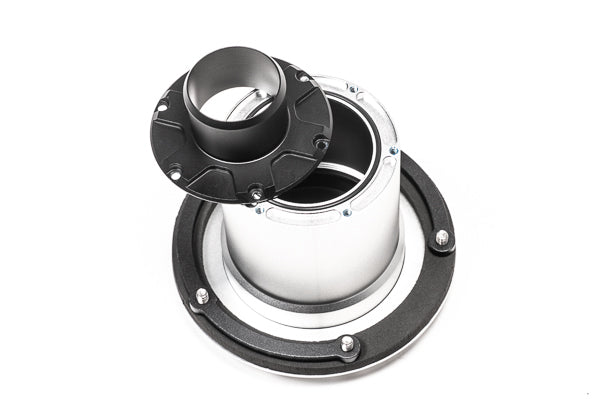

The o-ring sealed 1.5" barbed outlet is interchangeable.

By simply removing 6 screws, a different outlet adapter (sold separately) can be installed, such as the 2.25" barb (20-1007) and the 24AN fitting (20-1008). If needed, a tether is also provided.


Notes:

  1. Does not include accessories to connect to the fuel tank.
  2. Can be upgraded later to a dry break using Radium 20-0549-V.

Included Components

  • Vented Cap with Roll-Over Protection
  • Flanged Fill Neck for 1.5" ID Hose
  • Ozone/Flame Resistant Gasket
  • Anodized Aluminum Nut Ring
  • Stainless Steel M5 Bolts
  • Tether Components

Fitment Table
