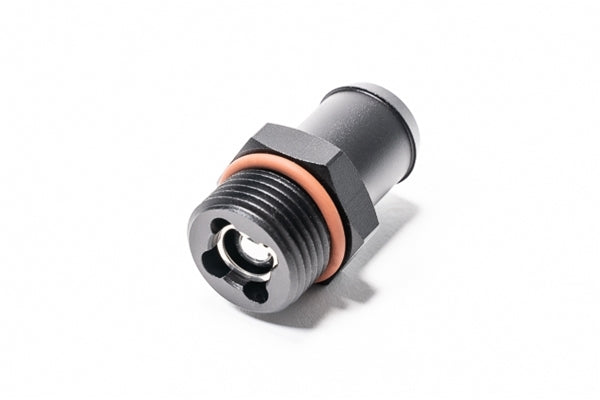

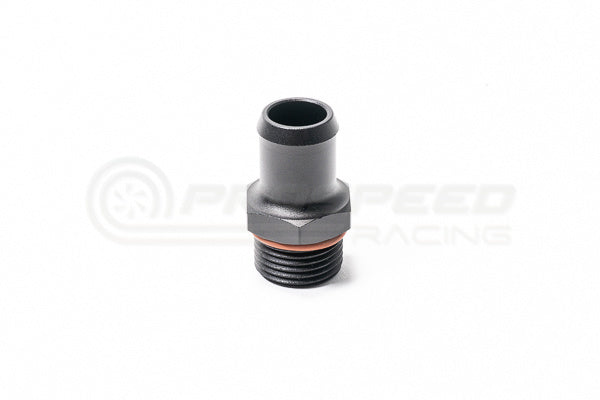

Radium Roll Over Valve, 10AN ORB To 3/4" Barb

This fitting should always be mounted in the vertical upright position. In this condition, air flow is permitted to move through the unit in both directions (in and out). However, when the fitting rotates more than 90 degrees, it becomes a shut-off valve not allowing any flow to pass through.

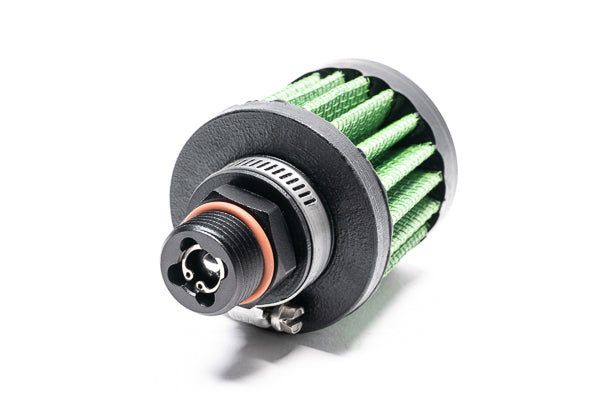

This part was designed to be compatible with Radium Engineering P/N: 18-0042 AIR FILTER, 0.75IN ID (Sold Separately). This combination is most commonly used with engine (or oil catch can) vents. It permits venting but prevents oil from escaping the engine if the vehicle is accidentally inverted.

SPECIFICATIONS

• Threads: 7/8-14 UNF (10AN ORB)
• Barb (OD): 0.75" (19mm)
• Material (valve): Stainless Steel
• Material (retaining ring): Stainless Steel
• Material (o-ring): FKM (Viton)
• Material (body): 6061 Auminum
• Surface (body): Type-II Anodized
