Radium Secondary Fuel Rail 6 Port
Mazda Cosmo JC (20B-REW)
Product will be in stock soon.
This product is in stock & ready to be delivered.
This product has very limited stock remaining.
This product is not available at this time.
Description
Description

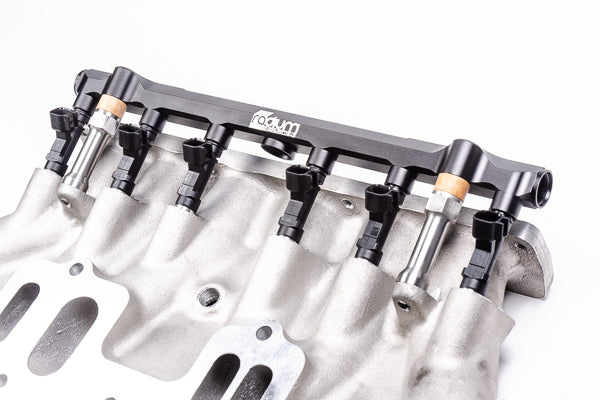

This Radium Engineering secondary fuel rail is for aftermarket 6-port intake manifolds that are produced for the Mazda 20B-REW rotary engine. The aluminum fuel rail is anodized black for compatibility with all popular fuel types including E85. Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements.

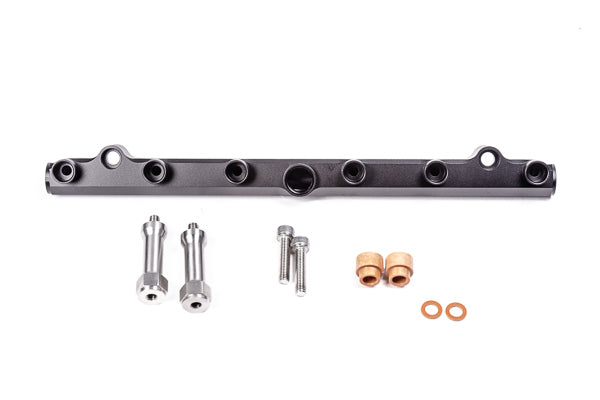

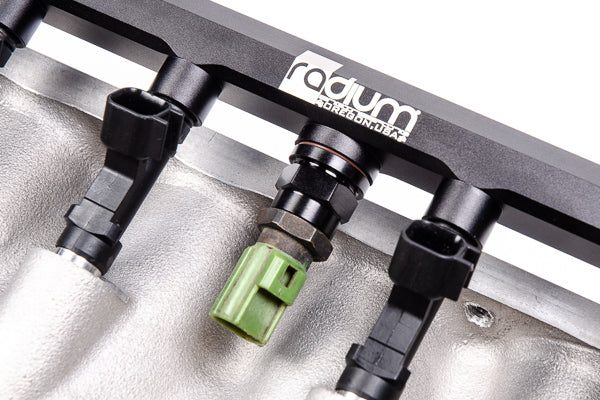

The three 8AN ORB ports are featured on this fuel rail. The extra center port (shown above) allows additional fuel system accessories such as the OEM fuel temperature sensor (shown below using 14-0421), a pressure transducer, Radium fuel pulse damper, etc.
Insulating phenolic spacers and washers are included with stainless steel hardware to prevent thermal energy from conducting heat into the fuel. The two M8 extension mounts are made from stainless steel for superior strength and corrosion resistance.
FUEL INJECTOR COMPATIBILITY
Below are some of the many fuel injectors that are a direct fitment with this fuel rail:
- Injector Dynamics ID1050-60-14-14
- Injector Dynamics ID1300-60-14-14
- Injector Dynamics ID1700-60-14-14
- Injector Dynamics ID2600-60-14-14
NOTE: Fuel Injectors are NOT included and must be purchased separately.
