Radium Single Fuel Pump Hanger
Honda Civic EG EK 92-00/Integra DC2 94-01
Product will be in stock soon.
This product is in stock & ready to be delivered.
This product has very limited stock remaining.
This product is not available at this time.
Description
Description
Note: No fuel pumps are included and must be purchased separately.

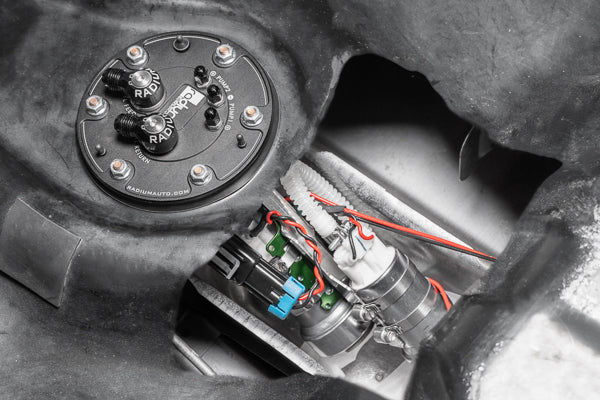

This Radium Engineering fuel hanger replaces the stock fuel pump assembly. It can be configured with 1 aftermarket fuel pump or 2 pumps with the supplementary "dual pump add-on" which is sold separately. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation. The fuel pump is positioned in the factory collector bowl.
The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. There are multiple adapter fittings included for the outlet.
- 1. The preinstalled -6AN male fitting permits an aftermarket feed line.
- 2. The barbed adapter fitting permits the (94-95 Integra/92-95 Civic) OEM feed line to be reused.
- 3. The SAE quick connect fitting permits the (96-01 Integra/96-00 Civic) OEM feed line to be reused.
There are 2 fittings included for the return port.
- 1. The preinstalled barbed fitting permits the OEM return line to be reused.
- 2. The -6AN male fitting permits an aftermarket return line.
All fittings are machined low enough to clear the fuel pump acess cover.
FUEL PUMPS
Choosing the best fuel pump(s) is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure.

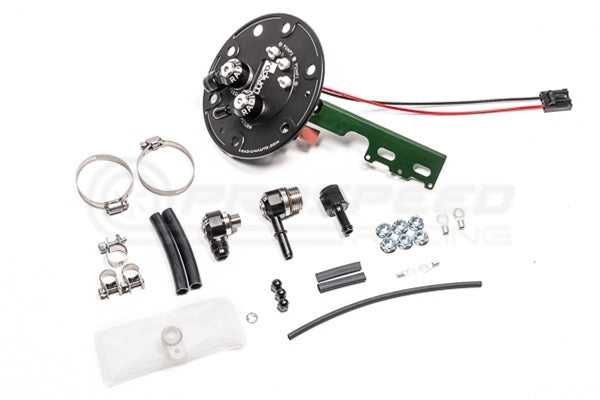

- P/N: 20-0790-00 can be used with the AEM 50-1000, AEM 50-1200, Walbro GSS342, or other pumps with the same physical shape and electrical connector.

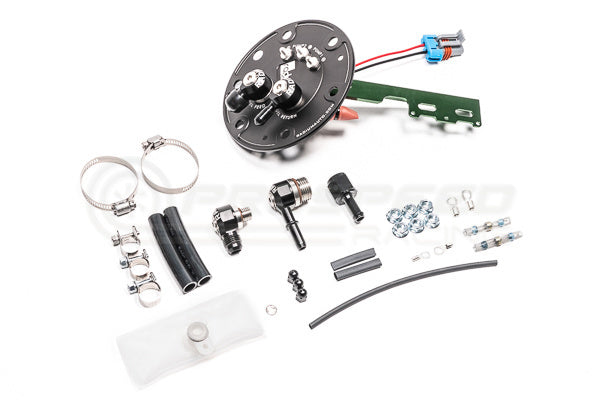

- P/N: 20-0792-00 can be used with the Walbro 39/50 DCSS pumps including F90000267, F90000274 or F90000285 pumps.
ELECTRICAL
The custom designed stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.
Notes
- 1. Single Walbro GSS342 (255LPH) fuel pump installations can re-use the OEM fuel pump wiring.
- 2. It is recommended to upgrade OEM wiring to ensure the pumps are receiving full power and operating at their full potential.
- 3. Universal fuel pump wiring kits can be found HERE. Select one for each aftermarket pump.
FEATURES
- Drop-In Installation
- Anodized Aluminum Construction
- Merged 8AN ORB Female Pump-Out Port
- Fittings for Aftermarket and OEM Lines
- Capable of 2 Pumps with Add-On
- Compatible with Various Pumps
- Included Fuel Pump Filter Sock
- High Current Electrical Hardware
- Stainless Steel Hardware and Clamps
- Gasoline, Methanol, and E85 Compliant
Vehicle Fitment:
- 1992-1995 Honda Civic EG/EH/EJ
- 1996-2000 Honda Civic EK/EM/EJ
- 1994-2001 Honda Integra DC2
