$435.00
Unit price /
Unavailable
Bidit helps you and Pro Speed Racing agree on a price. You set the price and Pro Speed Racing checks if they can accept your offer. You aren't competing with anyone else.

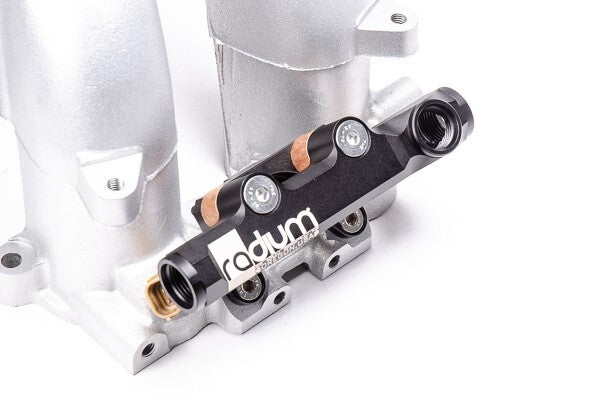

Manufactured with a large internal bore, the fuel rails can support all necessary engine power requirements. They are CNC machined from solid 6061 aluminum, black anodized, and laser etched for a high quality surface finish.
These fuel rails are designed specifically for OEM or equivalent fitment injectors. For injector height flexibility and thermal insulation, 2 sets of machined phenolic spacers are included. All injectors must use 11mm diameter upper O-rings just like the OEM Subaru injectors. Reference instruction manual for more information.
The fuel rails are compatible with all fuel types including popular alcohol mixtures such as E85.
These fuel rails have the same mounting, injector spacing and fitment as the 20-0567-02. However, each fuel rail has an 8AN ORB "top port", unlike 20-0567-02 which has a center lower port (picture below shown with Fuel Rail Adapter 20-0372). The added clearance is necessary for the EJ207 and JDM EJ205 engines that have early AVCS solenoids with vertical connectors (shown above).
Included:

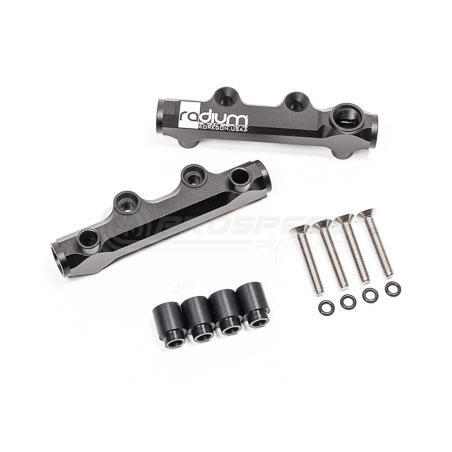

Black Anodized Laser Etched Aluminum Fuel Rails (x2)
The fuel rail ports are tapped for 8AN ORB but fittings are not included.

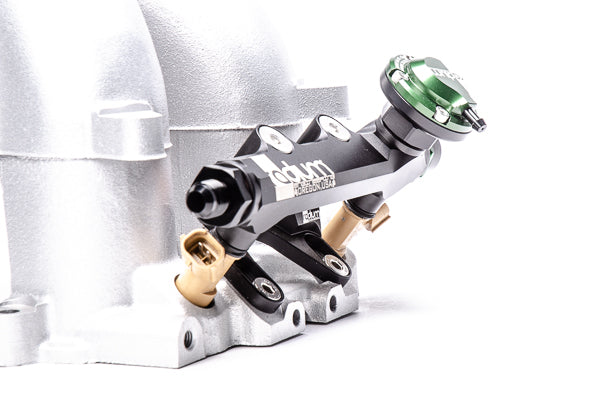

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.
Vehicle Fitment:
2001-2005 Subaru WRX EJ20 (w/Top Feed Injectors and fitted with AVCS Solenoid Pictured Above)
2001-2005 Subaru STI EJ20 (w/Top Feed Injectors and fitted with AVCS Solenoid Pictured Above)
2003-2008 Subaru Forester XT EJ25 (w/Top Feed Injectors and fitted with AVCS Solenoid Pictured Above)
Step 1: Choose message placement
Click the button below and then hover over your page to select a placement.
Step 2: Paste and save
You have copied the placement for the Product Page.
Go back to the App Embeds section, and in the Paypal Advanced Settings, paste the copied value into the
Product Page field and click the 'Save' button in the top right corner.
| SKU:
20-0577-02
