Radium Universal Check Valve

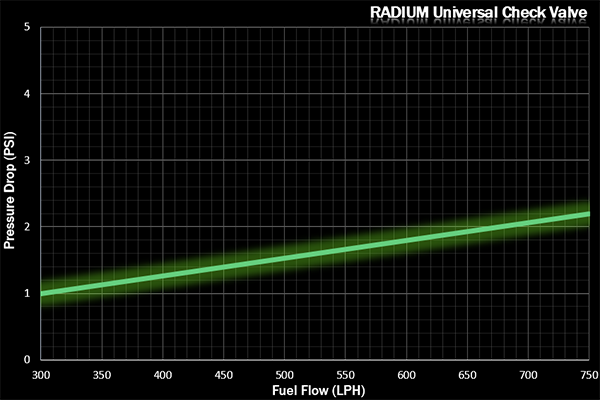

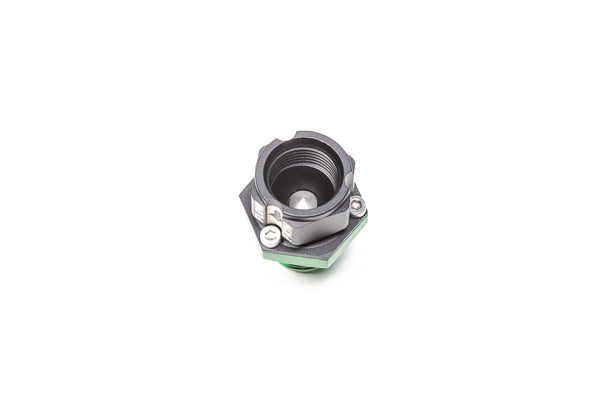

A 1-way check valve permits flow in 1 direction only. The Radium Enginering universal check valve features a lightweight anodized aluminum body with Viton seals and stainless steel hardware. As shown below, the internal plunger's aerodynamic shape warrants a smooth laminar stream.

All female -AN ports can accept 37 degree flare male fittings and/or ORB (O-ring boss) male fittings. The flow direction is laser etched on the side of the part. The check valve is compatible in multiple applications including gasoline, ethanol, methanol, diesel, water, coolant, oil, etc.

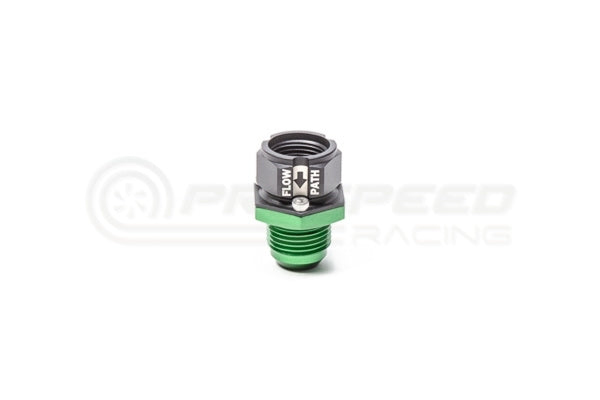

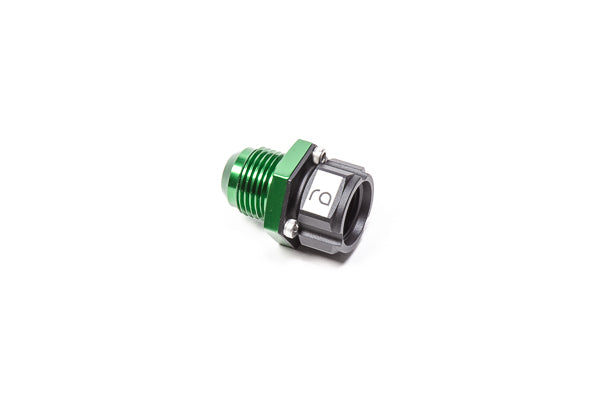

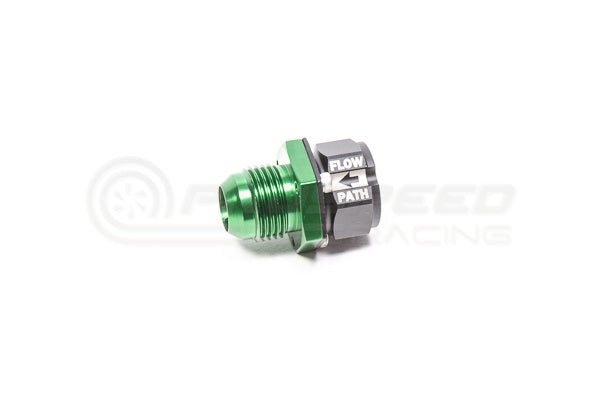

20-0534 UNIVERSAL CHECK VALVE

In it's native form without adapter fittings, the universal check valve uses a 10AN male outlet and a 8AN female inlet.

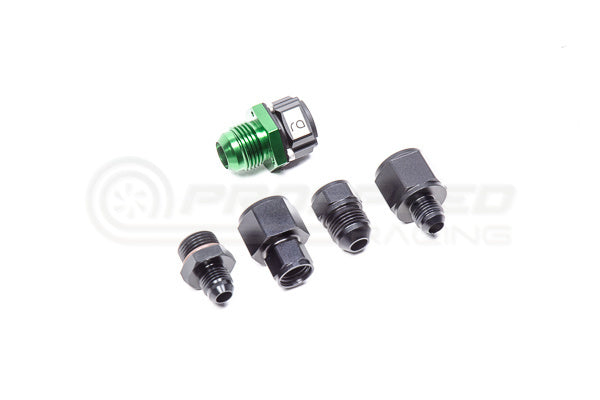

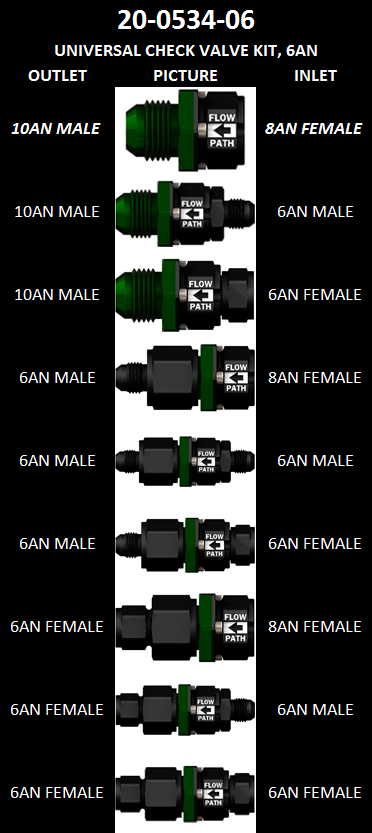

20-0534-06 UNIVERSAL CHECK VALVE KIT, 6AN

The 6AN kit includes the 20-0534 check valve body but adds all the necessary adapter fittings to convert both the inlet and the outlet to 6AN male and/or 6AN female.

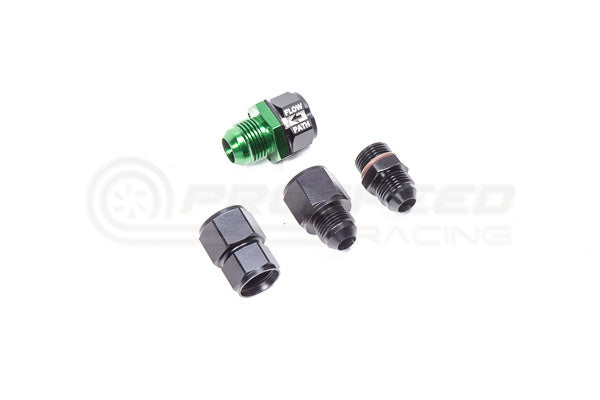

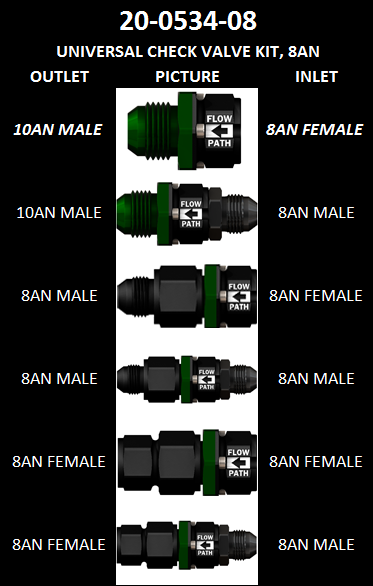

20-0534-08 UNIVERSAL CHECK VALVE KIT, 8AN

The 8AN kit includes the 20-0534 check valve body but adds all the necessary adapter fittings to convert both the inlet and the outlet to 8AN male and/or 8AN female.

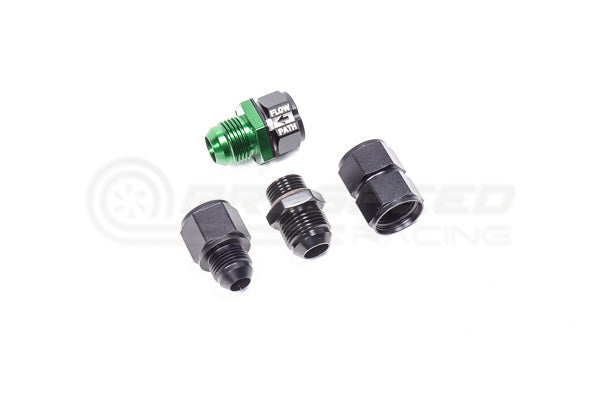

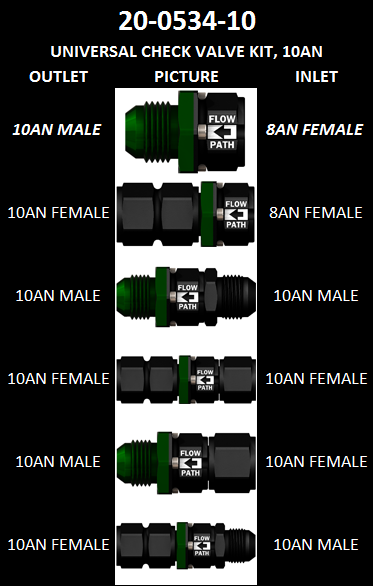

20-0534-10 UNIVERSAL CHECK VALVE KIT, 10AN

The 10AN kit includes the 20-0534 check valve body but adds all the necessary adapter fittings to convert both the inlet and the outlet to 10AN male and/or 10AN female.

SPECIFICATIONS

• Body Seal: FKM Viton
• Plunger Seal: FKM Viton
• Hardware: Stainless Steel
• Spring Material: Stainless Steel
• Plunger Material: Stainless Steel
• Body Material: Anodized Aluminum
• Check Valve Type: Spring-Loaded Piston
• Large Hex: 30mm (or 1-3/16")
• Length, No Adapters: 1.72" (43.6mm)
• Cracking Pressure: 0.3 psi @ 70F
• Max Operating Pressure: 1000+psi @ 70F
• Backflow Holding Pressure: 1000+psi @ 70F
