Radium VTA Air Oil Separator w/Oil Return

• Lowers hydrocarbon emissions
• Effectively raises the octane and increases engine performance with cleaner inlet air
• Prevents oil buildup in the intake or intercooler system walls, throttle body, intake manifold, etc

Ports

• Inlet Port(s): 7/8"-14 threaded for 10AN ORB fittings
• Outlet Port (VTE only): 7/8"-14 threaded for 10AN ORB fittings
• Return Port: 7/8"-14 threaded for 10AN ORB fittings
• Coolant Ports: 7/16"-20 threaded, includes two 7mm (or 5/16") barb fittings

Measurements

• AOS-R Height: 6.7" (without fittings)
• AOS-R Diameter: 3.45" Round
• AOS-R Capacity: 20.3 oz (600mL)

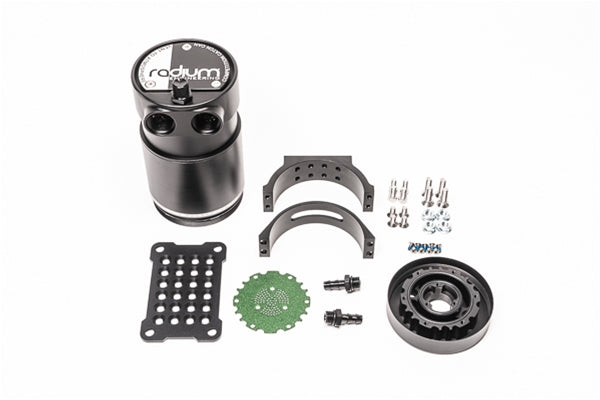

• Machined alumium Radium Engineering AOS-R

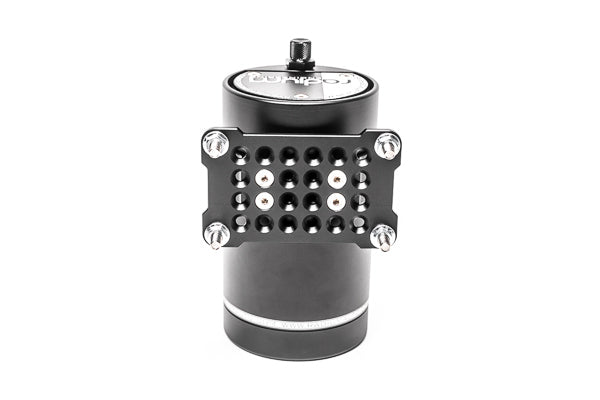

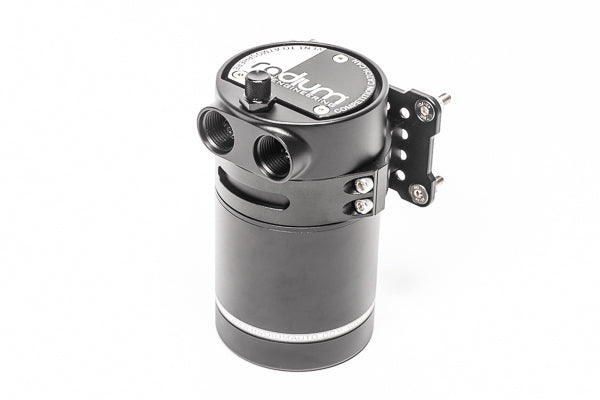

• Aluminum mount that permits 360 degree rotation
• Two 5/16" barbed fittings for coolant lines
• Stainless steel hardware
